Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 200x200x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-202010
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-202010 is a 200×200×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-202010Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×200×100 mm (7.87×7.87×3.94 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

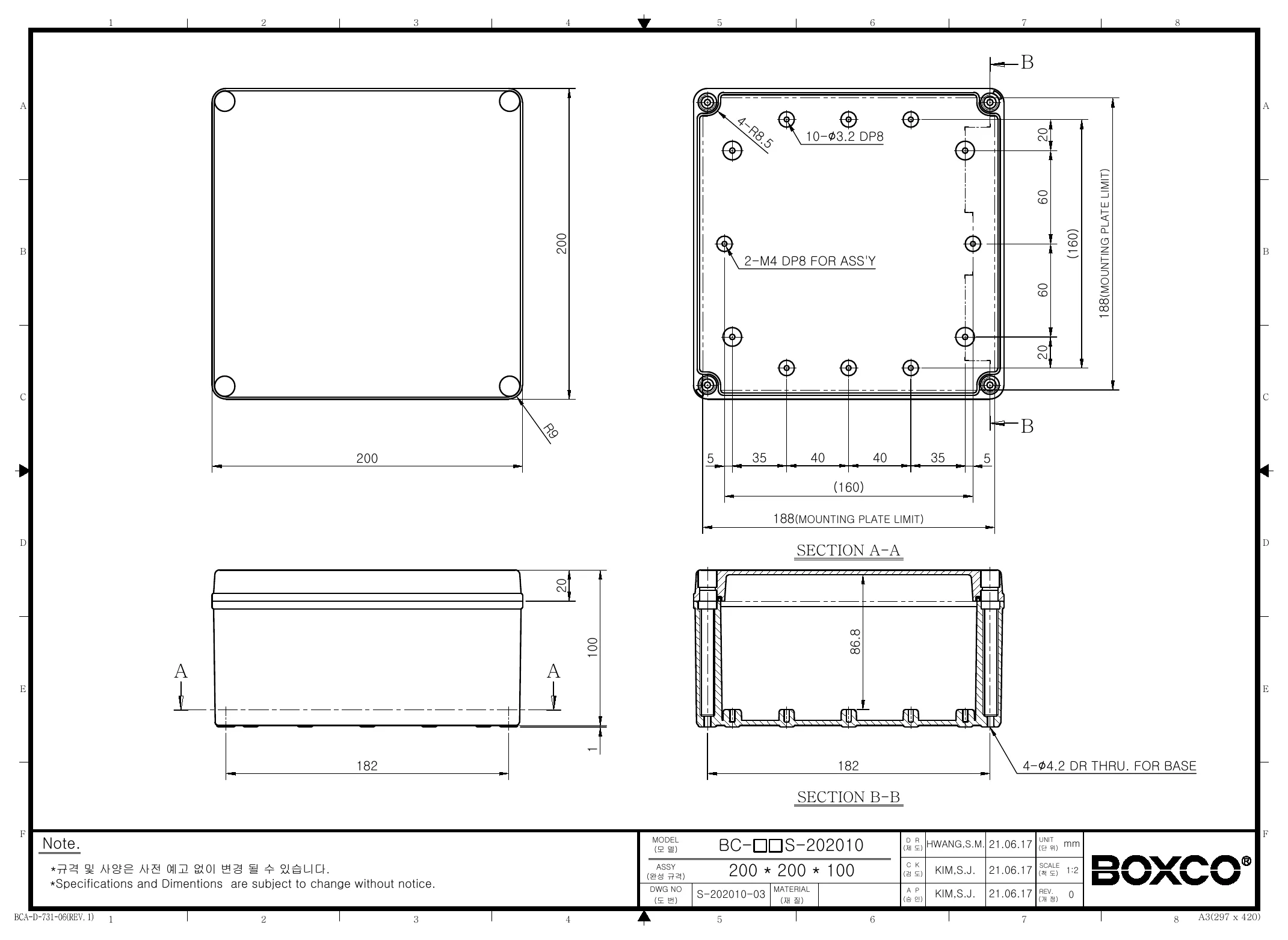

Technical drawings

BC-CGS-202010 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CGS-202010 enclosure?

This model is a screw-type plastic enclosure with dimensions of 7.87 x 7.87 x 3.94 inches (200 x 200 x 100 mm). It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure uses polycarbonate (PC) material, has a grey cover, and weighs 0.744 kg.

Is this enclosure suitable for outdoor environments?

Yes, this Boxco S-Series enclosure is designed with an ultraviolet stabilizer to support outdoor use. The product description also notes reduced color change over long periods of exposure. Its IP67 rating adds strong protection against dust and water ingress in demanding environments.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 °C to 110 °C. That range makes it suitable for both low-temperature and high-temperature industrial environments. Buyers should still confirm that the full application stays within those limits.

What kinds of applications is this enclosure commonly used for?

This model is intended for protecting electrical or electronic equipment that needs a durable sealed housing. Its anti-static material makes it relevant for sensitive electronic instruments, while the impact-resistant body supports industrial and outdoor applications. The internal mounting features also help when enclosing heavier components.

What internal mounting features does this enclosure include?

The enclosure includes internal mounting plate attachment points with brass-inserted injection molding for secure fastening. It also has pre-molded mounting screw nuts that can be used for DIN rail or other internal equipment mounting. These features make the enclosure more suitable for organized component placement than a plain empty box.

How does this model differ from a basic plastic enclosure?

This Boxco S-Series model combines IP67 sealing, IK08 impact resistance, UV-stabilized material, and anti-static properties in one enclosure. It also includes molded attachment points and gasket construction designed for strong waterproof and dust-proof performance. Compared with a basic utility enclosure, it is positioned for more demanding industrial and outdoor use.
