Boxco

Boxco S-Series 200x200x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-202010
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-202010 is a 200×200×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-202010Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×200×100 mm (7.87×7.87×3.94 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

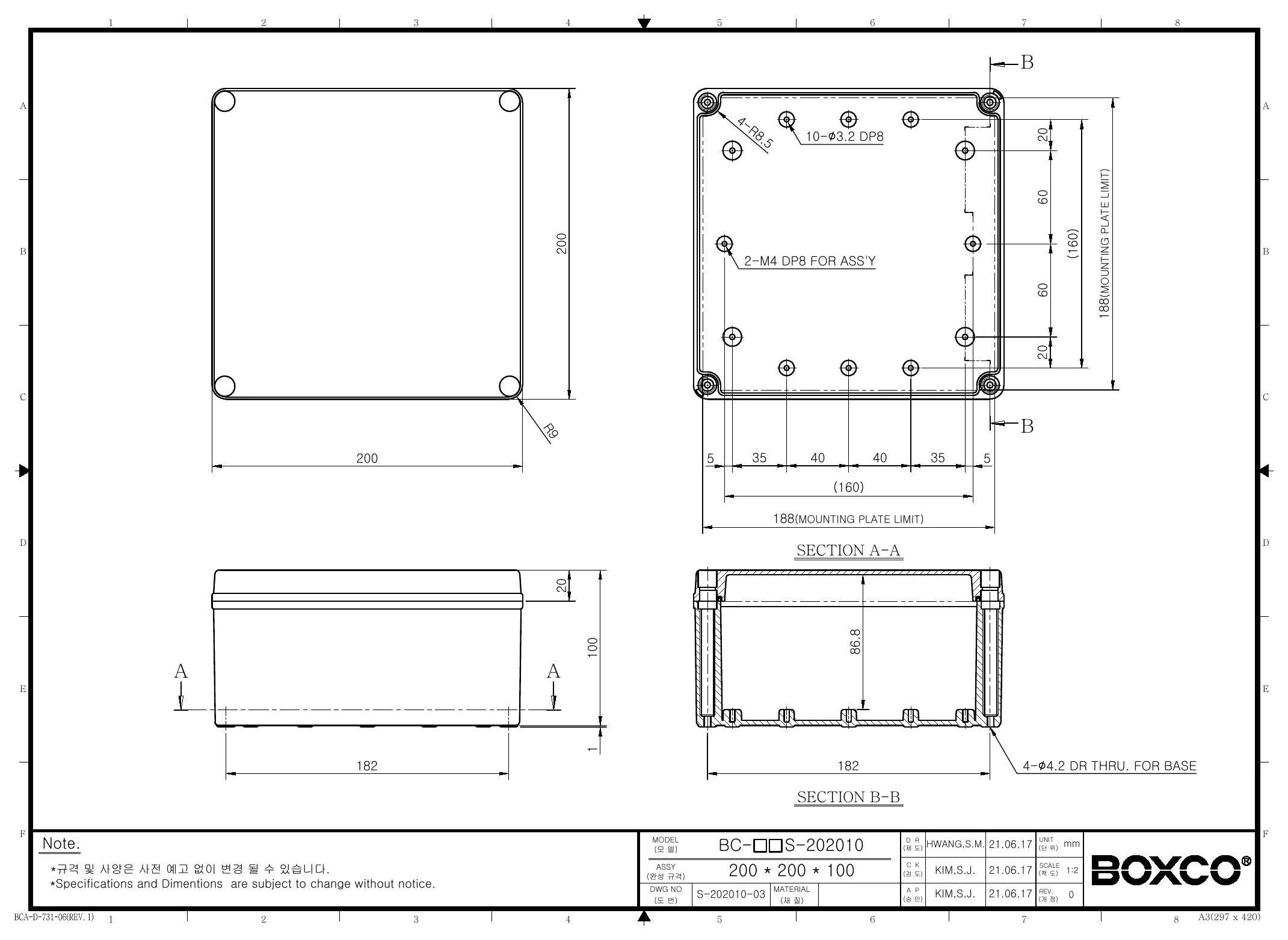

Technical drawings

BC-CTS-202010 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CTS-202010 enclosure?

This model is a plastic enclosure with overall dimensions of 7.87 x 7.87 x 3.94 inches (200 x 200 x 100 mm). It has an IP67 rating, an IK08 impact rating, a polycarbonate body, a transparent cover, and a screw-type closure. The listed product weight is 1.82 kg.

Is this enclosure suitable for outdoor environments?

Yes. The product description states that ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. Its IP67 rating also supports protection against dust and water ingress in demanding environments.

What kind of protection does this enclosure provide for sensitive equipment?

This enclosure uses anti-static material to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material and carries an IK08 impact rating for added physical durability.

Does this model support internal mounting hardware or accessory plates?

Yes. The enclosure includes internal mounting plate attachment points designed to secure a mounting plate onto brass inserted injection molding. It also includes pre-molded mounting screw nuts that can be used to secure DIN rail or other internal equipment.

What temperature range can the BC-CTS-202010 handle?

The specified operating temperature range is -40 degrees C to 110 degrees C. That range makes it suitable for applications exposed to both low and high ambient temperatures, provided the rest of the system is rated accordingly.

What distinguishes this enclosure from a basic plastic box?

This model combines several protective features in one enclosure, including IP67 sealing, IK08 impact resistance, UV stabilization, anti-static material, and a transparent polycarbonate cover. It is also designed with molded attachment points and screw nuts to better support internal components than a generic utility box.

What warranty period is listed for this enclosure?

The listed warranty period for this model is 1 year. That warranty applies specifically to the BC-CTS-202010 product entry provided.
