Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 200x200x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-202013
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-202013 is a 200×200×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-202013Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×200×130 mm (7.87×7.87×5.12 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

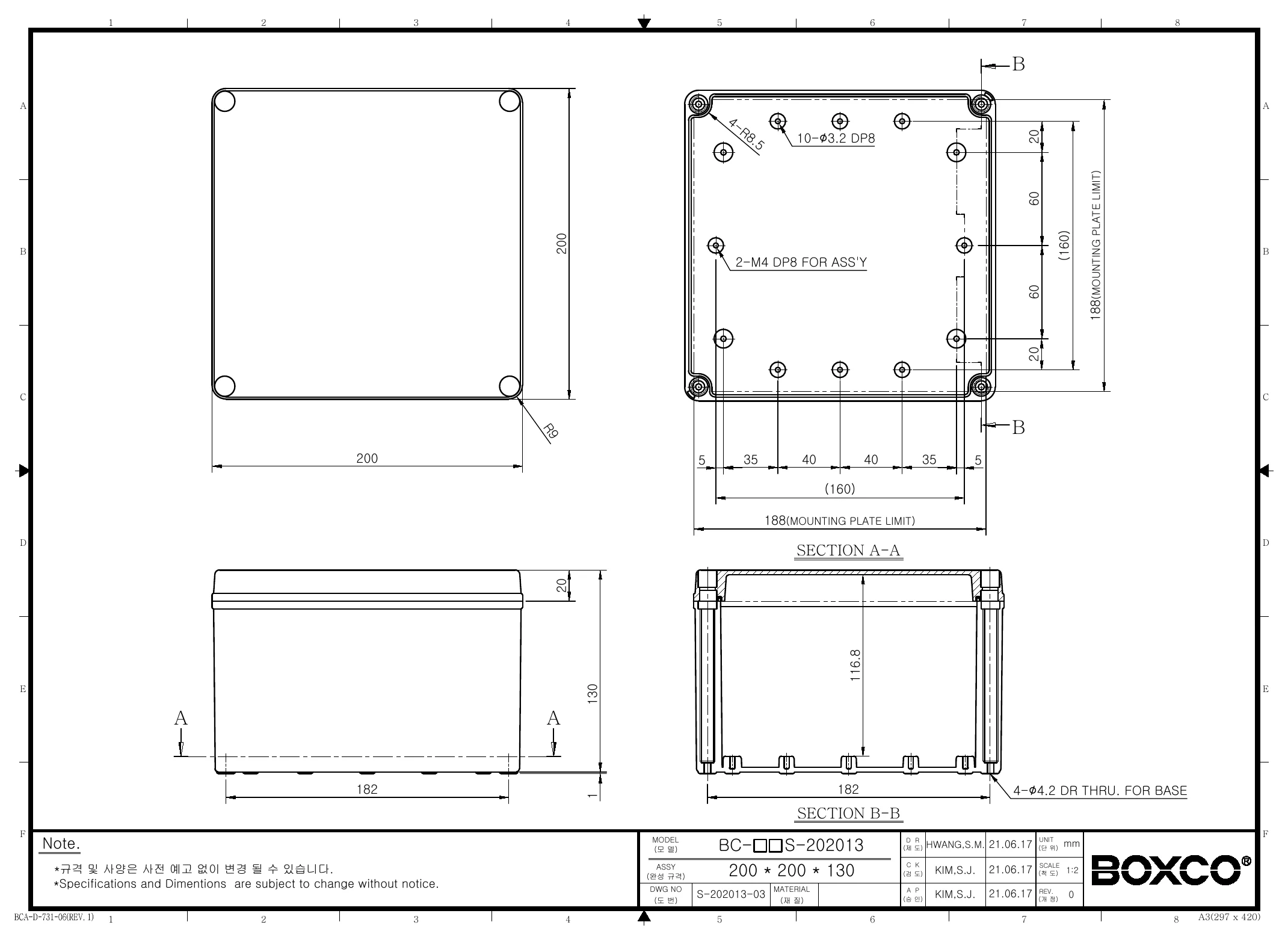

Technical drawings

BC-CGS-202013 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 200x200x130mm plastic enclosure suited for?

This enclosure is suited for protecting industrial or commercial electronics that need a sealed non-metallic housing. Its 200 x 200 x 130 mm size provides room for heavier internal components, and the molded attachment points support secure mounting of internal hardware. The anti-static material also makes it a practical choice for protecting sensitive electronic instruments.

Is this enclosure suitable for outdoor or washdown environments?

Yes. This model is rated IP67 for dust-tight sealing and protection against temporary water exposure, and it includes ultraviolet stabilizer material for outdoor use. The gasket is precision-injected to support strong waterproof and dust-proof performance over time.

How durable is this enclosure against impact and mechanical stress?

This enclosure carries an IK08 impact rating and is made from high impact resistant polycarbonate material. Boxco also notes that the material helps resist breakage during hole and press processing. The screw-threaded cover attachment points are formed in the molding process to maximize strength.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 110 degrees C. That wide operating range makes it suitable for demanding indoor and outdoor environments where temperatures may vary significantly. Buyers comparing enclosures for harsh conditions should verify that their application stays within this range.

What internal mounting features does this Boxco S-Series enclosure include?

This model includes internal mounting plate attachment points with brass-inserted injection molding for securing a mounting plate tightly. It also has pre-molded mounting screw nuts that allow DIN rail or other equipment to be fixed inside the enclosure. These built-in features help support organized internal component mounting without relying only on the enclosure walls.

How does this screw-cover version compare to a basic plastic enclosure box?

This model stands out with an IP67 sealing rating, IK08 impact protection, polycarbonate construction, UV-stabilized material, and anti-static properties. It also includes molded internal attachment features and a grey screw-type cover for a secure closure. For buyers who need a durable outdoor-ready enclosure rather than a general-purpose box, those differences are significant.
