Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 200x200x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-202013
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-202013 is a 200×200×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-202013Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×200×130 mm (7.87×7.87×5.12 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

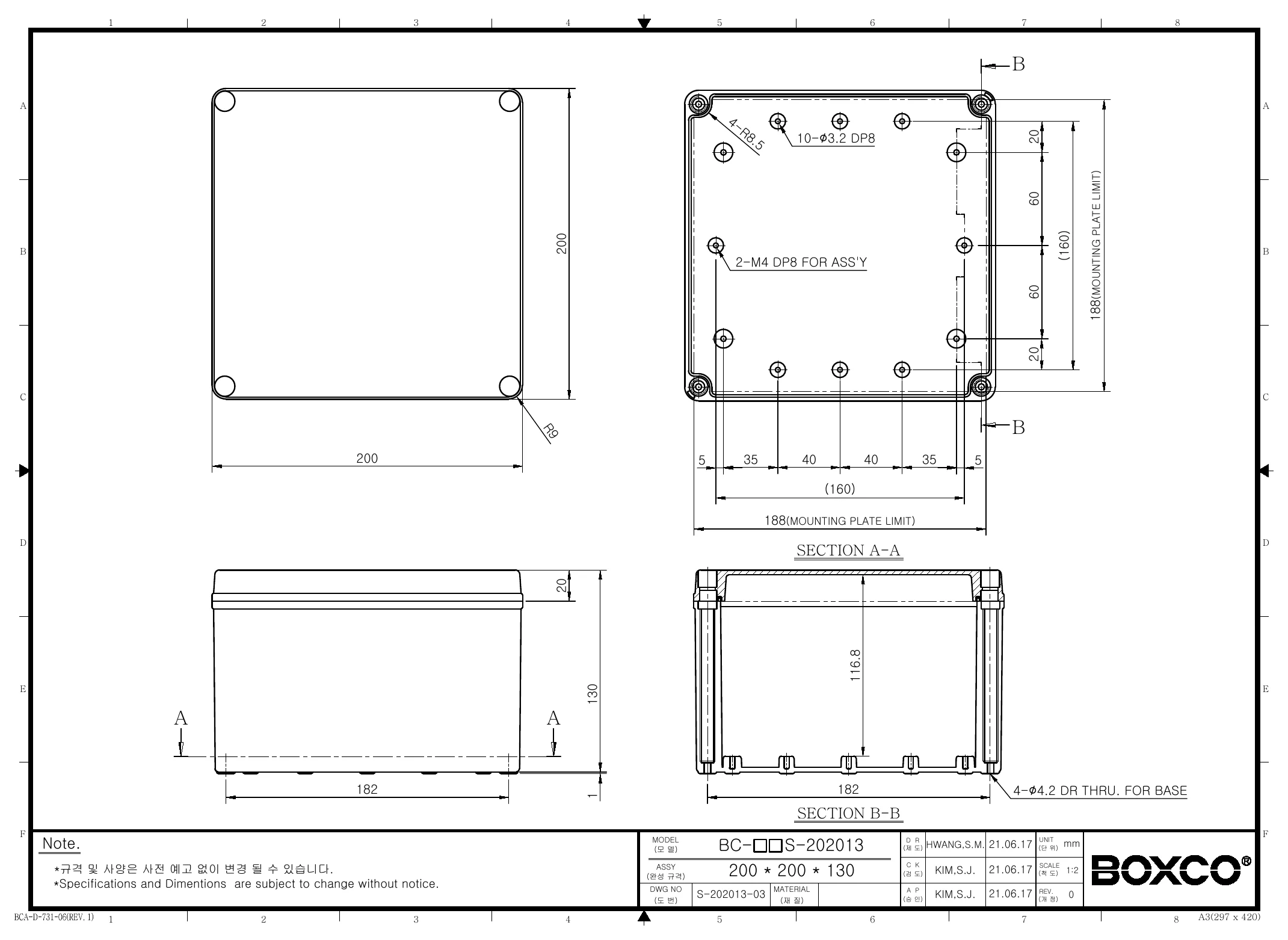

Technical drawings

BC-CTS-202013 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco S-Series BC-CTS-202013 enclosure?

This model is a plastic enclosure measuring 7.87 x 7.87 x 5.12 inches (200 x 200 x 130 mm). It has an IP67 ingress rating, an IK08 impact rating, a polycarbonate body, and a transparent screw-type cover. The listed operating temperature range is -40°C to 110°C, and the unit weight is 1.82 kg.

Is this enclosure suitable for outdoor use?

Yes. The product description states that Boxco S-Series enclosures include an ultraviolet stabilizer to support outdoor usage and reduce visible color change over time. Its IP67 rating also supports use in environments where dust protection and resistance to temporary water exposure are important.

What kinds of applications is this enclosure commonly used for?

This enclosure is suited for protecting sensitive electronic equipment in industrial and commercial settings where a durable non-metallic housing is needed. The anti-static material and high-impact-resistant construction make it relevant for control, monitoring, and instrumentation applications. Buyers who need visibility into internal indicators or components may also prefer the transparent cover.

What does the transparent cover add compared with an opaque enclosure cover?

A transparent cover allows visual inspection of enclosed components, labels, or indicator lights without opening the enclosure. That can be useful when quick status checks are needed while keeping the housing closed. This model keeps the same screw-type cover format while adding that visibility benefit.

Does this enclosure support internal accessory mounting?

Yes. The description notes mounting plate attachment points with brass inserted injection molding for securely fixing an internal mounting plate. It also includes pre-molded mounting screw nuts intended to support DIN rail or other internal equipment. These built-in features make the enclosure more adaptable for organized internal layouts.

How durable is this enclosure in demanding environments?

The enclosure is described as being made from high impact resistant material and carries an IK08 impact rating. It is also designed with a gasket produced for strong waterproof and dust-proof performance, reflected in the IP67 rating. In addition, the specified temperature range of -40°C to 110°C supports use across a wide range of operating conditions.
