Boxco S-Series 200x200x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-202016
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-202016 is a 200×200×160 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-202016Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×200×160 mm (7.87×7.87×6.30 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

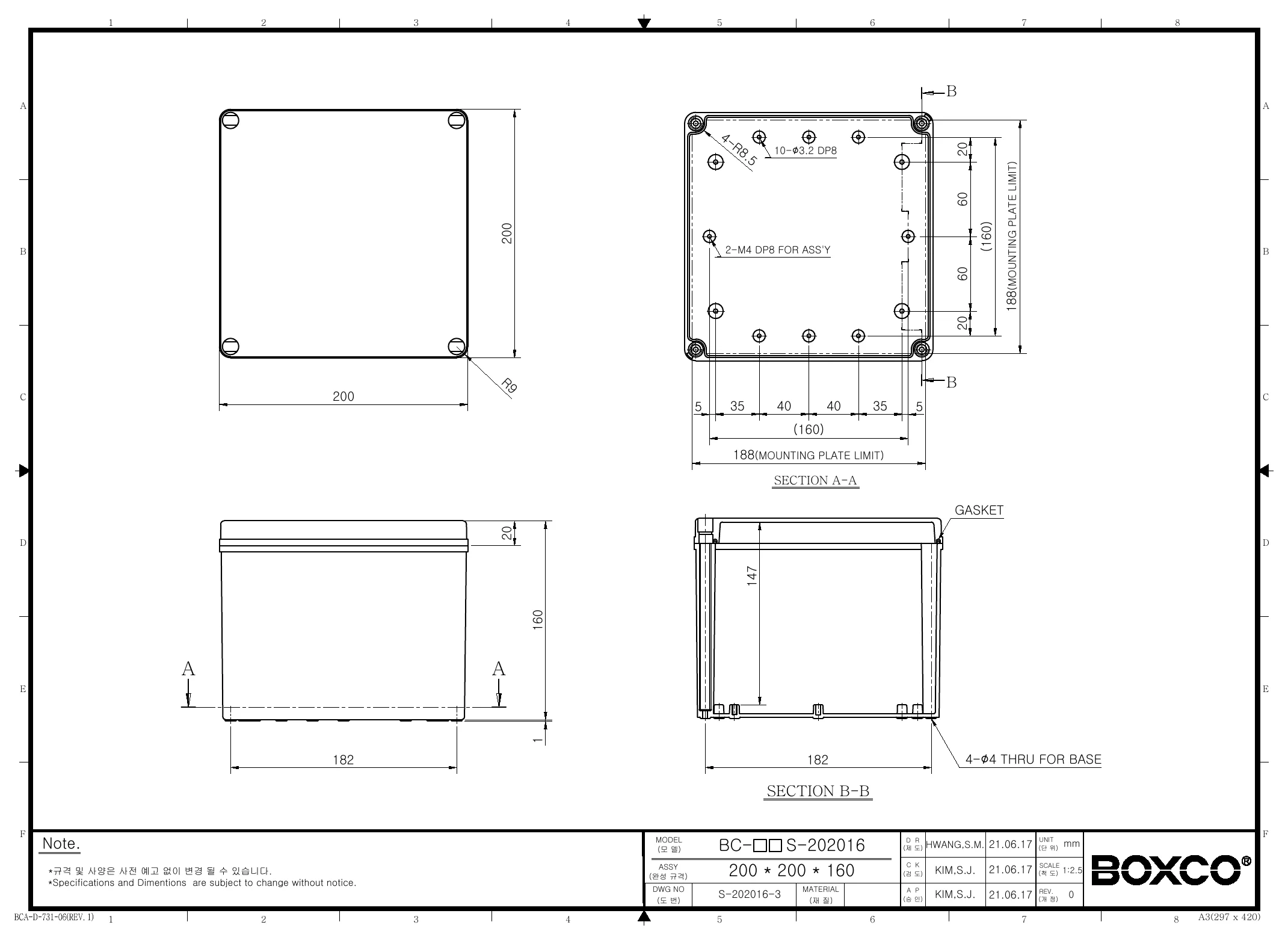

BC-AGS-202016 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of the Boxco S-Series BC-AGS-202016 enclosure?

This model measures 7.87 x 7.87 x 6.3 inches, which is 200 x 200 x 160 mm. That size gives it enough internal space for many control, protection, and instrumentation enclosure applications. It is part of the Boxco S-Series screw-type plastic enclosure range.

Is this enclosure suitable for outdoor or washdown environments?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. Buyers needing a plastic enclosure for demanding indoor or outdoor environments often look for that combination.

What material is this enclosure made from?

The BC-AGS-202016 is made from ABS and has a grey cover. According to the product description, the material is high impact resistant and includes anti-static properties to help protect sensitive electronic instruments from static electricity. That makes it a practical choice where both durability and equipment protection matter.

How durable is this enclosure against physical impact?

This model carries an IK08 impact rating, indicating resistance to mechanical impact in industrial and commercial settings. The product description also highlights high impact resistant construction and reinforced molded features such as cover bolt attachment points. Together, those details make it well suited for applications where enclosure toughness is important.

What temperature range can this enclosure handle?

The specified operating temperature range is -40°C to 70°C. That range supports use in both cold and hot environments, depending on the broader system requirements. Buyers should still confirm that all installed components are rated for the same conditions.

What kinds of applications is this enclosure commonly used for?

This model is commonly considered for protecting sensitive electronic instruments and other internal equipment in industrial or commercial environments. Its IP67 rating, IK08 impact resistance, ABS construction, and anti-static material make it relevant for general-purpose protective enclosure use. It is especially useful where dust resistance, water resistance, and mechanical durability are priorities.

Does this enclosure support internal mounting hardware or accessory panels?

Yes, the product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. Those molded features are intended to support mounting plates, DIN rail, or other internal equipment. This helps buyers looking for an enclosure designed to accommodate organized internal component mounting.
