Boxco S-Series 200x200x160mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-202016
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-202016 is a 200×200×160 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-202016Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×200×160 mm (7.87×7.87×6.30 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

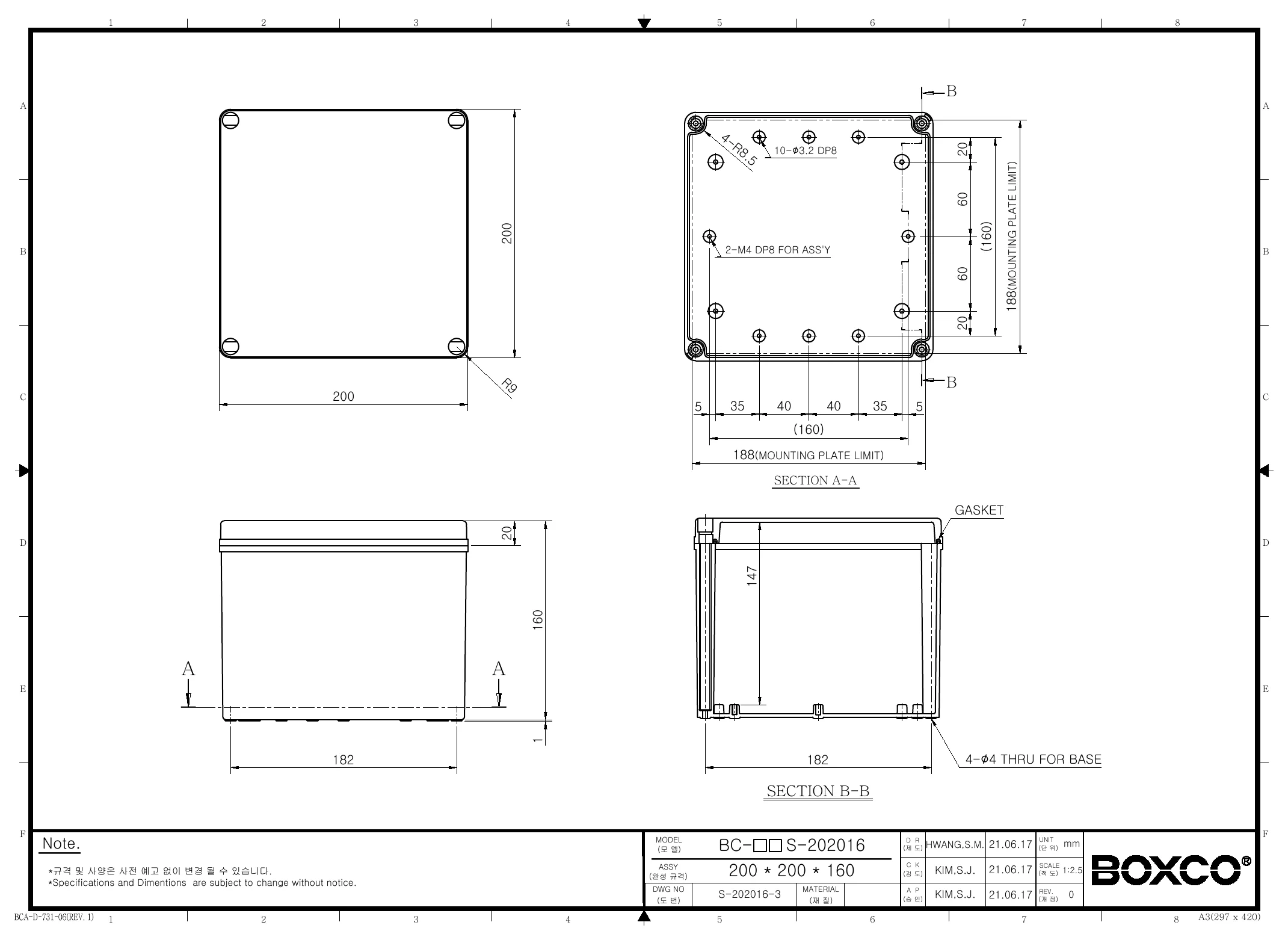

BC-CGS-202016 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-CGS-202016 enclosure suited for?

This model is suited for protecting electronic controls, monitoring devices, and other components that need a sealed non-metallic enclosure. Its 200 x 200 x 160 mm size gives more internal room than shallow boxes, making it a practical choice for industrial, outdoor, and OEM equipment housings.

Is this enclosure suitable for outdoor or washdown environments?

Yes. The enclosure is rated IP67 for protection against dust ingress and temporary water exposure, and the S-Series description states that an ultraviolet stabilizer is added for outdoor use. The injected gasket is also designed to support waterproof and dust-proof performance over long service periods.

How durable is the BC-CGS-202016 against impact and harsh handling?

This model carries an IK08 impact rating and is made from high-impact-resistant polycarbonate. Boxco also notes that the material is designed to resist breakage during hole and press processing, which is useful for industrial enclosure preparation.

What are the main material and construction features of this enclosure?

The BC-CGS-202016 is a polycarbonate screw-type enclosure with a grey cover. It includes brass-inserted mounting plate attachment points, pre-molded mounting screw nuts for internal equipment, an injected gasket, and molded cover bolt threads for added strength.

What temperature range can this enclosure handle?

The specified operating range for this model is -40 C to 110 C. That makes it suitable for both low-temperature and high-temperature environments where standard light-duty plastic boxes may be more limited.

How does this model compare with smaller plastic enclosures in the same category?

This version is a larger-format enclosure at 7.87 x 7.87 x 6.3 inches, so it is better suited when you need more internal volume or extra mounting depth. It keeps the same core advantages buyers look for in this series, including IP67 sealing, IK08 impact resistance, polycarbonate construction, and a screw-fixed cover.

Is the BC-CGS-202016 a good choice for sensitive electronic equipment?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. Combined with its sealed polycarbonate body, that makes it a strong option for housing delicate control or monitoring hardware.
