Boxco

Boxco S-Series 200x200x160mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-202016
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-202016 is a 200×200×160 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-202016Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×200×160 mm (7.87×7.87×6.30 in)
Mounting plate dimension M1 × M2
179 × 179 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2020 G (Plastic, G type), 2020 P (Plastic, P type), 2020 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

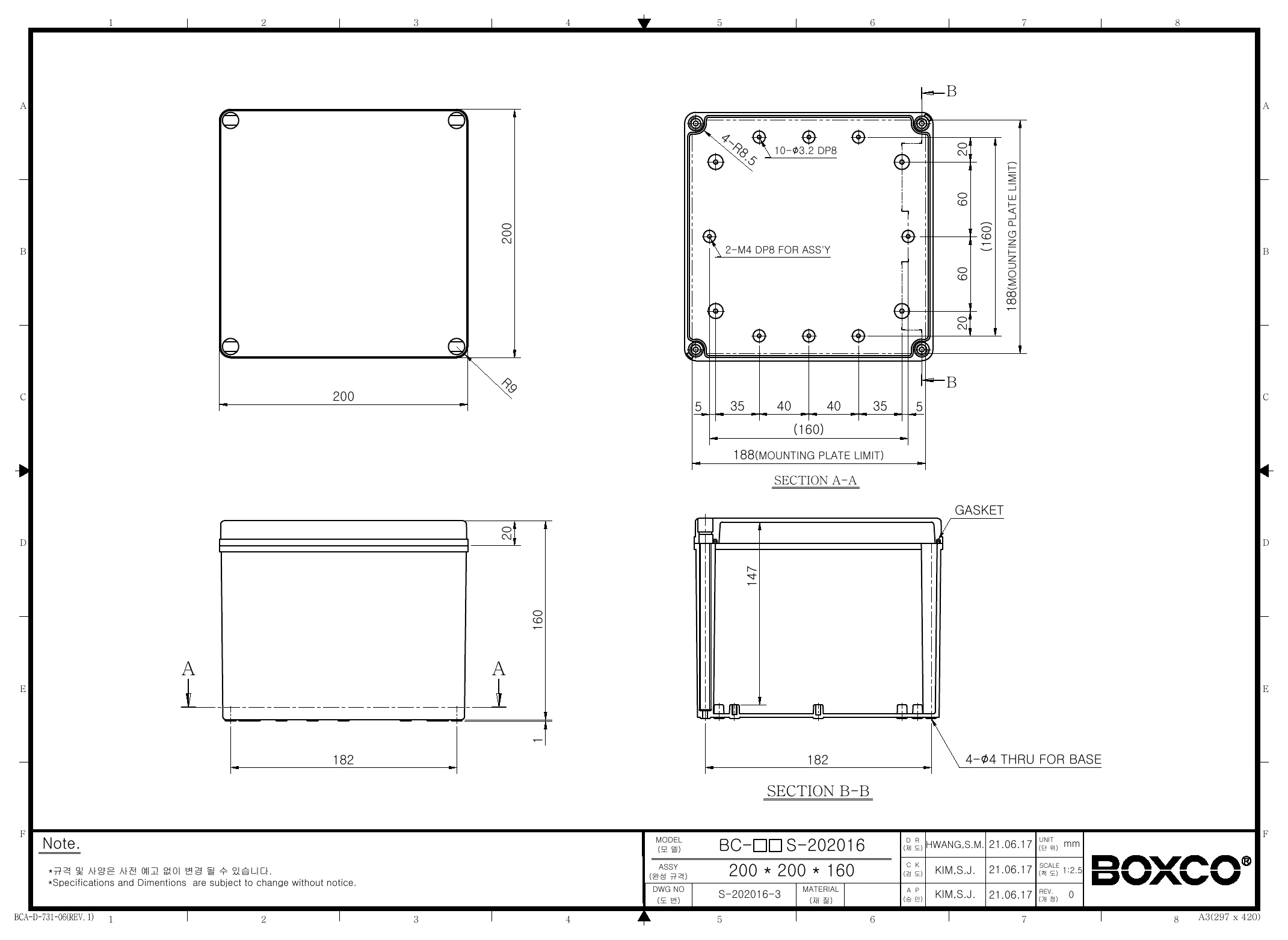

Technical drawings

BC-CTS-202016 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CTS-202016 enclosure?

The BC-CTS-202016 is a plastic enclosure with overall dimensions of 7.87 x 7.87 x 6.3 inches (200 x 200 x 160 mm). This model has a transparent polycarbonate cover, a screw-type closure, IP67 ingress protection, and IK08 impact resistance. Its listed weight is 1.82 kg.

Is this enclosure suitable for outdoor or washdown environments?

This model is designed for demanding environments where dust and water resistance matter, with an IP67 rating. Boxco also notes that the S-Series includes ultraviolet stabilizer for outdoor use, helping reduce color change over time. Buyers should still confirm the full application environment matches their project requirements.

What temperature range can this enclosure handle?

The stated operating temperature range for this model is -40 °C to 110 °C. That makes it suitable for applications exposed to both low and high ambient temperatures within that range. It is important to evaluate the full assembly, not just the enclosure, against the intended environment.

What is the benefit of the transparent cover on this model?

The transparent cover allows visual inspection of internal components without opening the enclosure. That can be useful when equipment status or labeling needs to remain visible while keeping the enclosure closed. This model specifically combines that transparent cover with a screw-type design and IP67 protection.

What kinds of applications is this enclosure typically used for?

This enclosure is generally suited for protecting electronic and control equipment in industrial or commercial settings where dust, moisture, and impact resistance are important. Boxco also describes anti-static material use to help protect sensitive electronic instruments from static electricity. Buyers commonly consider this style of enclosure when they need a sealed non-metallic housing with a clear cover.

Does this enclosure support internal equipment mounting?

Yes, the product description states that the enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to help secure internal hardware and support heavier installed equipment. Compatibility with a specific plate, rail, or accessory should be confirmed against the enclosure's 200 x 200 x 160 mm size and the accessory's dimensions.
