Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 280x280x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-282813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-282813 is a 280×280×130 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-AGS-282813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×280×130 mm (11.02×11.02×5.12 in)
Mounting plate dimension M1 × M2
248 × 248 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2828 P (Plastic, P type), 2828 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

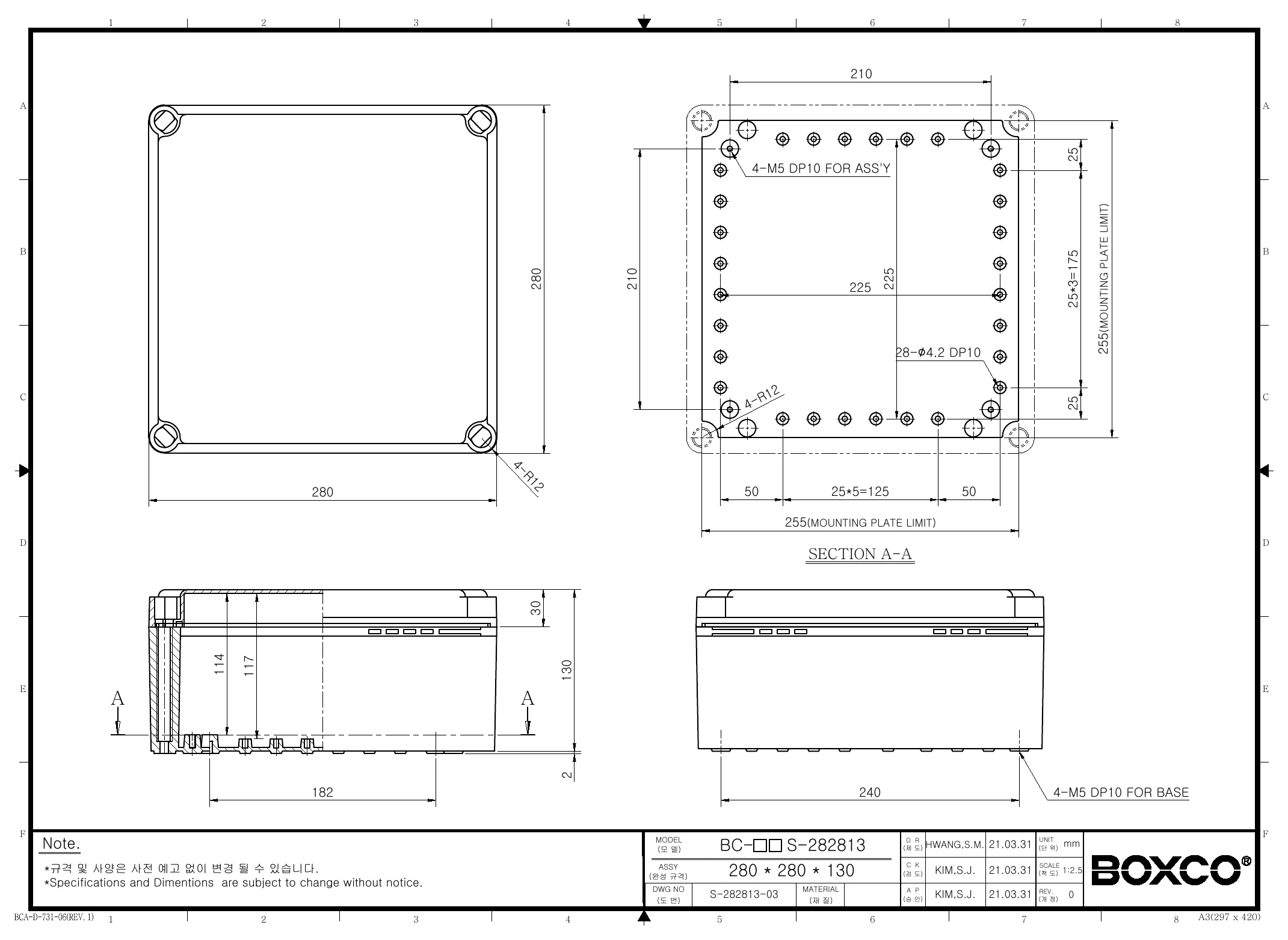

BC-AGS-282813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This enclosure is used to protect electrical or electronic components in industrial and commercial equipment housings. Its 280 x 280 x 130 mm size makes it suitable when you need room for larger control, monitoring, or protection assemblies inside a durable plastic box.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also states that UV stabilizer is added for outdoor use, helping reduce visible color change over long-term exposure.

What material is this enclosure made from?

This model is made from ABS and has a grey cover. The description also notes high impact resistant construction and anti-static material, which can help protect sensitive electronic instruments from static electricity.

How impact-resistant is this plastic enclosure?

This enclosure carries an IK08 impact rating, indicating added resistance to external mechanical impact compared with non-rated general-purpose boxes. The product description also emphasizes high impact resistant material designed to reduce breakage during machining such as hole or press processing.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 70 °C. That range makes it a practical option for many indoor and outdoor industrial environments where temperature swings are a consideration.

Does this enclosure support internal mounting hardware or accessories?

Yes, the description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support secure mounting of internal equipment and accessories such as DIN rail hardware or mounting plates.
