Boxco

Boxco S-Series 280x280x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-282813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-282813 is a 280×280×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CGS-282813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×280×130 mm (11.02×11.02×5.12 in)
Mounting plate dimension M1 × M2
248 × 248 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2828 P (Plastic, P type), 2828 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

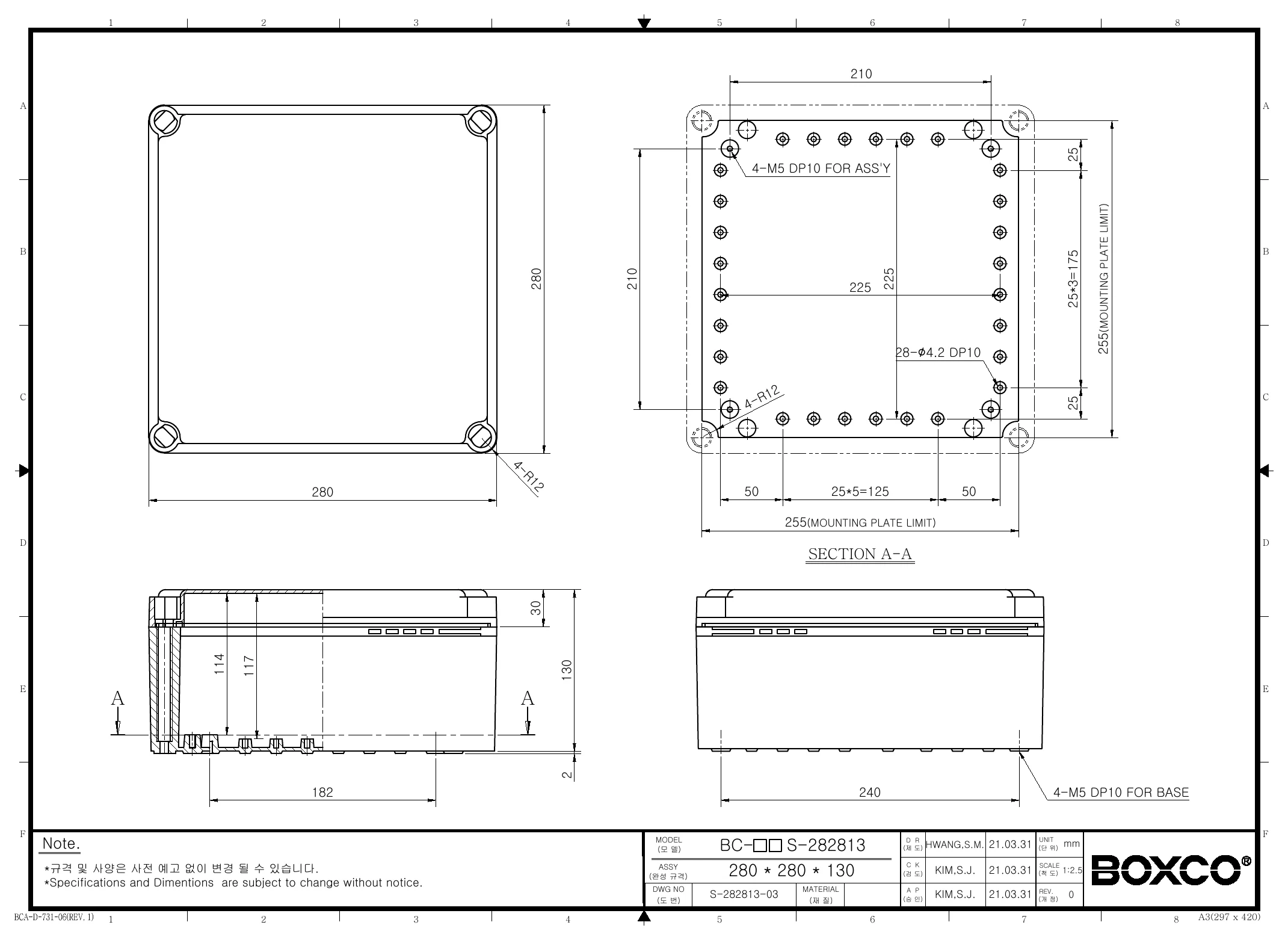

Technical drawings

BC-CGS-282813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This model is designed for protecting electronic and control components in industrial and outdoor environments where a sealed plastic enclosure is needed. Its high-impact PC construction, IP67 protection, and anti-static material make it a practical choice for sensitive equipment that needs protection from dust, water, and external impact.

Is this enclosure suitable for outdoor use?

Yes. The enclosure includes an ultraviolet stabilizer to help maintain performance and reduce visible color change over time in outdoor exposure. Its IP67 rating also supports use in locations where strong protection against dust and water ingress is required.

What are the key size and material specs for this enclosure?

This enclosure measures 11.02 x 11.02 x 5.12 inches, which corresponds to 280 x 280 x 130 mm. It is made from polycarbonate (PC), has a grey cover, and weighs 1.4 kg.

How durable is this enclosure for demanding industrial environments?

This model is built from high-impact resistant material and carries an IK08 impact rating, which indicates solid resistance to mechanical impact. The design also includes molded cover bolt attachment points and brass inserted mounting plate attachment points for added structural strength.

What environmental conditions can this enclosure handle?

The specified operating temperature range is -40 degrees C to 110 degrees C. Combined with its IP67 protection, that makes it suitable for harsh environments involving temperature swings, dust, and moisture exposure.

Does this enclosure support internal mounting hardware and accessories?

Yes. It includes internal mounting plate attachment points and pre-molded mounting screw nuts that support adding compatible internal hardware such as DIN rail or mounting plates. These built-in features are intended to help secure heavier equipment inside the enclosure.
