Boxco S-Series 280x280x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-282813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-282813 is a 280×280×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CTS-282813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×280×130 mm (11.02×11.02×5.12 in)
Mounting plate dimension M1 × M2
248 × 248 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2828 P (Plastic, P type), 2828 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

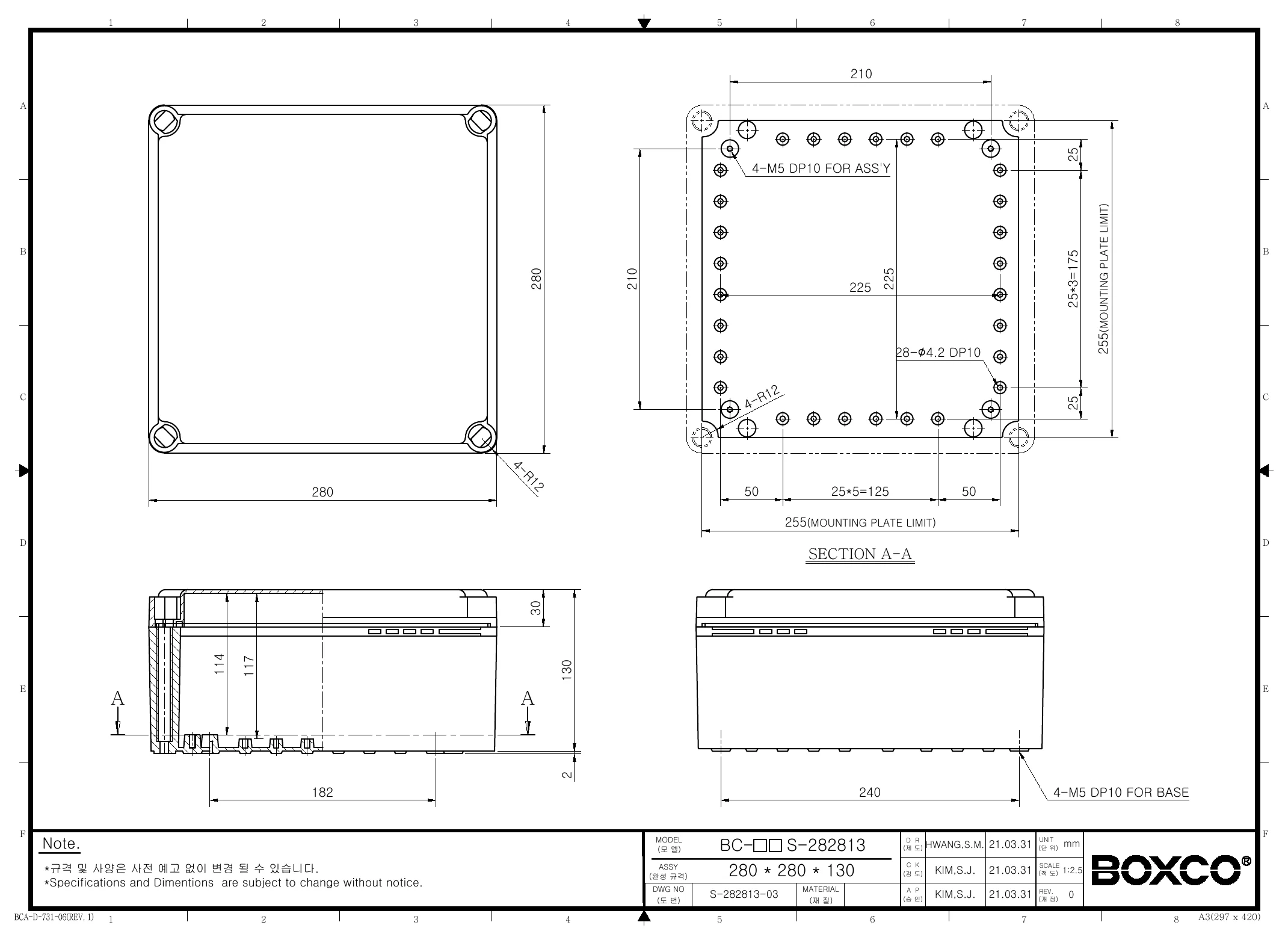

Technical drawings

BC-CTS-282813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 280x280x130mm plastic enclosure best suited for?

This enclosure is intended for protecting electrical or electronic equipment in industrial and commercial environments where a sealed non-metallic housing is needed. Its internal size class, high-impact plastic construction, and transparent cover make it a practical choice for equipment that benefits from visual inspection without opening the box.

What do the IP67 and IK08 ratings mean for this enclosure?

This model is rated IP67 for protection against dust ingress and temporary immersion in water under rated conditions. It is also rated IK08 for impact resistance, which supports use in environments where the enclosure may be exposed to incidental mechanical contact.

Is this enclosure suitable for outdoor use?

Yes, this Boxco S-Series enclosure is designed with an ultraviolet stabilizer to support outdoor use. The product description also notes that only minor color change is expected over long-term exposure.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C up to 110 degrees C. That range makes it suitable for both cold and high-heat operating environments within the enclosure's overall rating limits.

Does this model include features for mounting internal components?

Yes, the enclosure includes mounting plate attachment points with brass inserted injection molding for securing an internal mounting plate. It also has pre-molded mounting screw nuts that support fastening items such as DIN rail or other internal equipment.

How does the transparent cover compare with a solid cover enclosure?

The transparent polycarbonate cover allows contents to be viewed without opening the enclosure, which can be useful for quick inspection or status checks. Buyers who do not need visual access may prefer a solid cover version, but this model is specifically configured with a transparent cover.
