Boxco

Boxco S-Series 280x340x130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-283413
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-283413 is a 280×340×130 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-ATS-283413Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×340×130 mm (11.02×13.39×5.12 in)
Mounting plate dimension M1 × M2
249 × 308 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2834 P (Plastic, P type), 2834S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

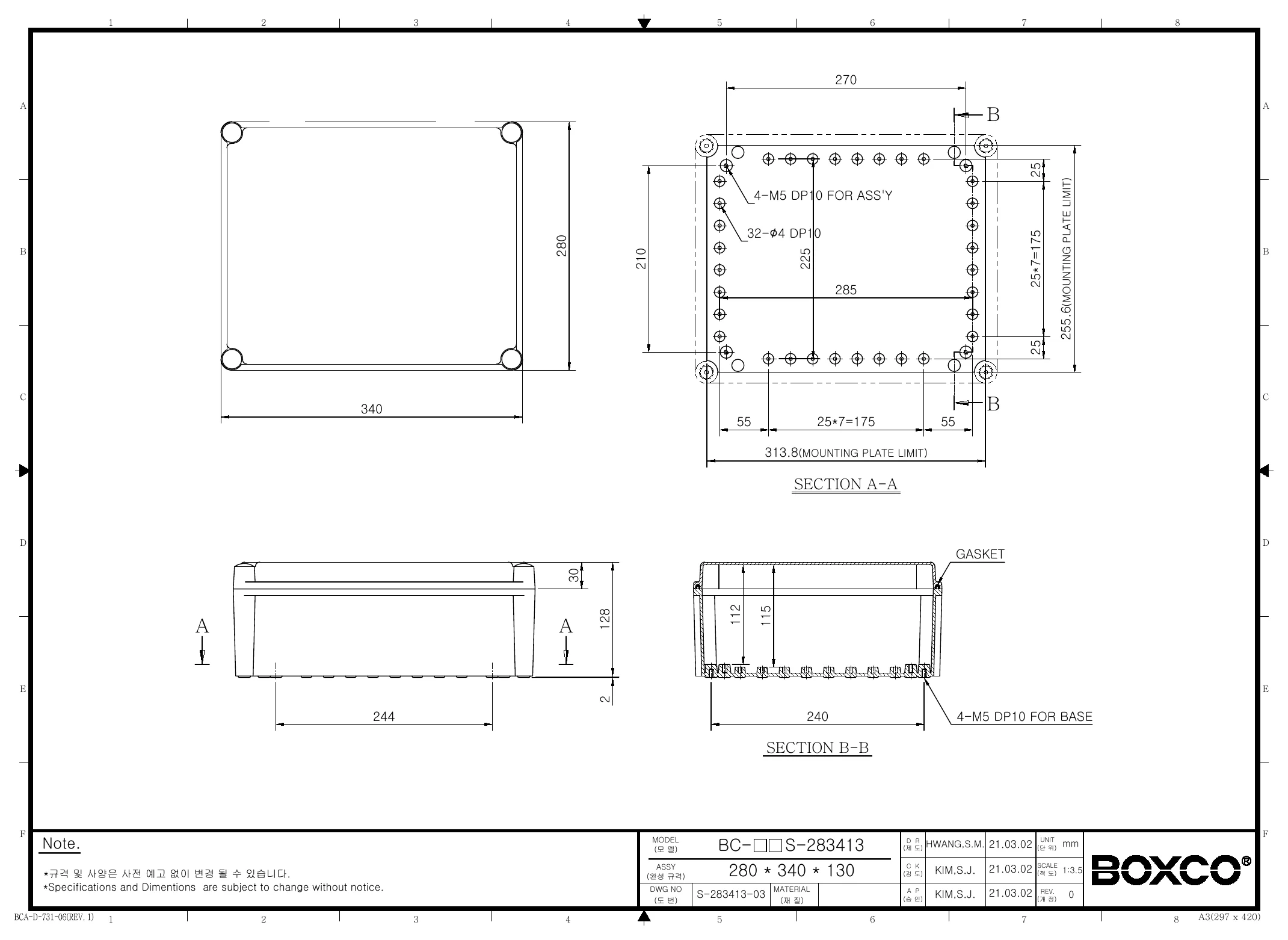

Technical drawings

BC-ATS-283413 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure suited for?

This enclosure is designed for protecting industrial and commercial equipment that needs a durable sealed housing. Its ABS construction, transparent cover, and internal mounting features make it a practical choice for control, monitoring, and instrumentation enclosures where components need to remain visible without opening the lid.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this model is built for demanding environments with an IP67 rating for dust-tight and water-resistant protection and an IK08 impact rating for mechanical durability. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods.

What are the main material and construction features of this enclosure?

This model is made from ABS and includes a transparent cover with a screw-type closure. The S-Series design also includes a gasket for waterproof and dust-proof performance, molded cover bolt attachment points for strength, and pre-molded screw nuts for mounting internal hardware.

What size is this enclosure?

This enclosure measures 11.02 x 13.39 x 5.12 inches, which is also listed as 280 x 340 x 130 mm. That size makes it a larger enclosure option for applications that need more internal room for mounted equipment and accessories.

What internal mounting compatibility features does this enclosure include?

This model includes mounting plate attachment points and pre-molded mounting screw nuts. According to the product description, those features help support internal mounting plates as well as DIN rail or similar equipment inside the enclosure.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40 degrees C to 70 degrees C. That operating range supports use in both cold and hot industrial environments, provided the full application stays within the product's stated limits.

What distinguishes this model from a basic plastic enclosure box?

This specific model combines ABS construction, a transparent screw-type cover, IP67 sealing, IK08 impact resistance, and UV-stabilized outdoor suitability in one enclosure. It also includes molded internal mounting features that support heavier installed equipment more effectively than a basic empty box.
