Boxco

Boxco S-Series 280x340x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-283413
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-283413 is a 280×340×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CGS-283413Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×340×130 mm (11.02×13.39×5.12 in)
Mounting plate dimension M1 × M2
249 × 308 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2834 P (Plastic, P type), 2834S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

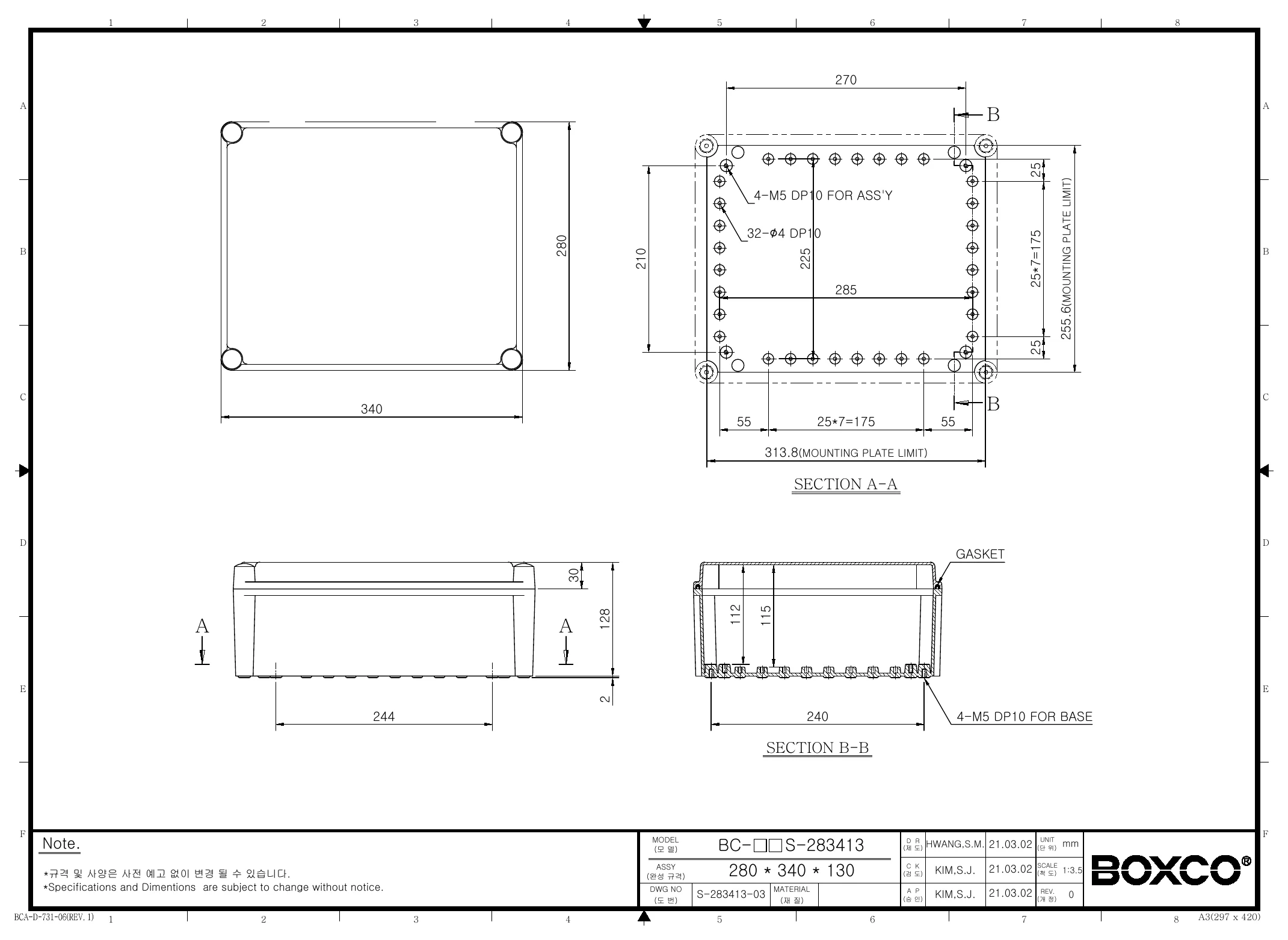

Technical drawings

BC-CGS-283413 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

Is this Boxco S-Series enclosure suitable for outdoor use?

Yes. This model uses ultraviolet stabilizer material to help protect the enclosure in outdoor environments and reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and water ingress when the enclosure is properly closed.

What are the dimensions of this enclosure?

This enclosure measures 11.02 x 13.39 x 5.12 inches, which is 280 x 340 x 130 mm. That size makes it a larger plastic enclosure intended for equipment that needs more internal space than compact junction-style boxes.

Can this enclosure be used for sensitive electronic equipment?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. The polycarbonate construction is also designed for high impact resistance, which helps protect equipment in demanding environments.

How durable is this enclosure in industrial environments?

This model is rated IP67 for dust and water resistance and IK08 for impact resistance. It is also made from high impact resistant polycarbonate, and the screw threads are formed in injection molding to improve cover strength.

What internal mounting options does this enclosure support?

This enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. According to the product details, those features are intended to help secure internal mounting plates, DIN rail, and other equipment inside the enclosure.

What temperature range is this enclosure rated for?

This model is specified for use from -40 C to 110 C. That wide temperature range makes it better suited to demanding indoor or outdoor applications than enclosures with narrower operating limits.
