Boxco

Boxco S-Series 280x340x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-283413
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-283413 is a 280×340×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CTS-283413Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×340×130 mm (11.02×13.39×5.12 in)
Mounting plate dimension M1 × M2
249 × 308 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2834 P (Plastic, P type), 2834S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

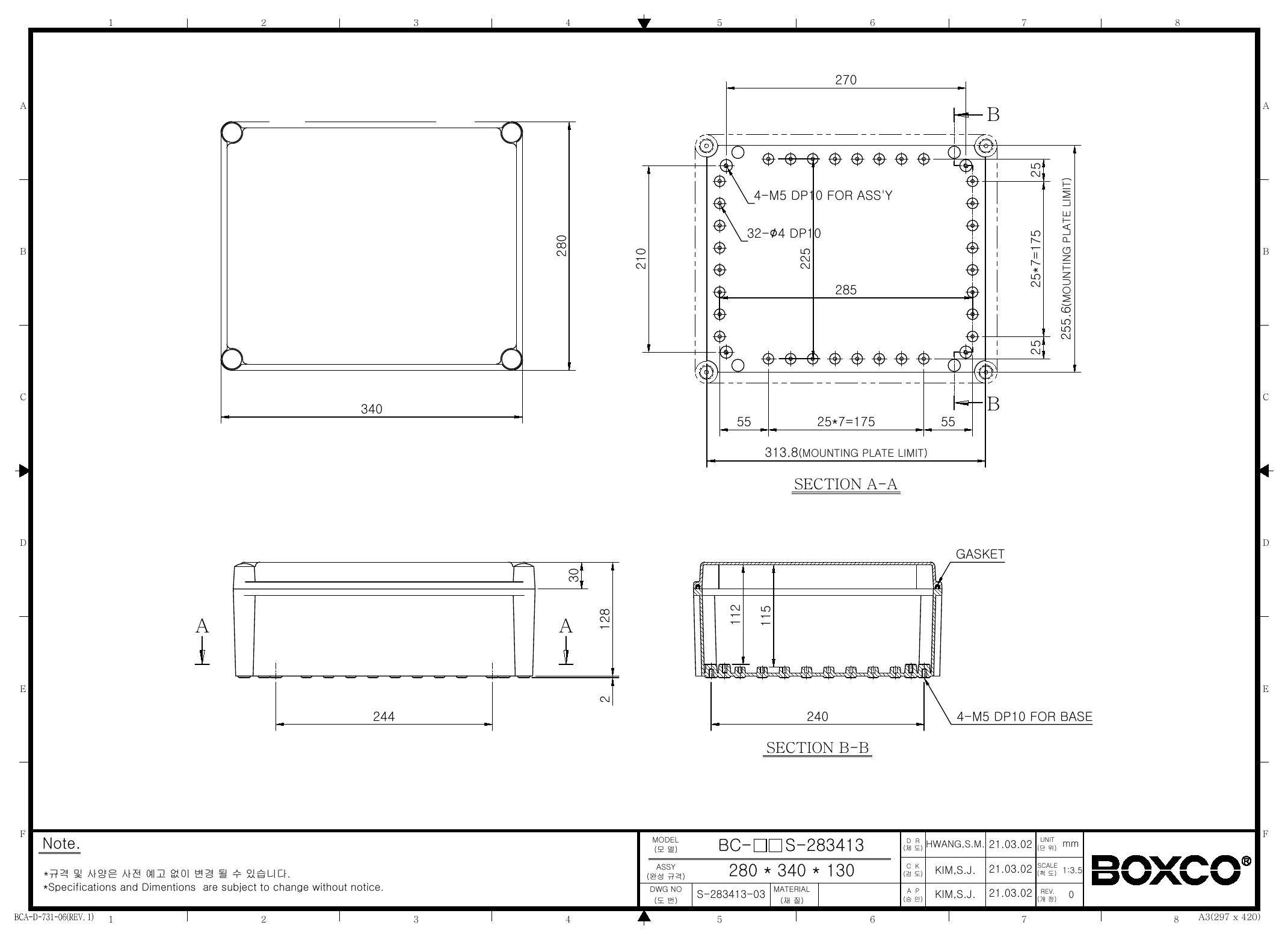

Technical drawings

BC-CTS-283413 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure used for?

This model is designed to protect electrical or electronic components in industrial and commercial applications where a sealed plastic enclosure is needed. Its transparent screw-type cover makes it suitable when internal equipment needs to be visually checked without opening the box.

What are the key specifications of this enclosure?

This enclosure measures 11.02 x 13.39 x 5.12 inches (280 x 340 x 130 mm) and is made from polycarbonate (PC). It is rated IP67 for dust-tight and water-resistant protection, IK08 for impact resistance, and weighs 1.592 kg.

Is this enclosure suitable for outdoor or harsh environments?

Yes. The Boxco S-Series includes an ultraviolet stabilizer for outdoor usage and is described as having anti-static, high-impact-resistant material. It also supports a wide operating temperature range from -40°C to 110°C and uses a gasket designed for strong waterproof and dust-proof performance.

How durable is the transparent cover and enclosure body?

This model is built for durability with high impact resistant material and an IK08 impact rating. The cover bolt attachment points are formed during injection molding to improve thread strength, which supports repeated access in demanding environments.

What internal mounting options does this enclosure support?

The enclosure includes internal mounting plate attachment points with brass inserted injection molding to support securely mounted internal equipment. It also has pre-molded mounting screw nuts that can be used for adding compatible internal hardware such as a DIN rail or mounting plate.

Does this enclosure come with a warranty?

Yes. This Boxco enclosure includes a 1-year warranty period. That makes it a practical option for buyers looking for protected enclosure hardware with defined warranty coverage.
