Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 280x380x130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-283813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-283813 is a 280×380×130 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CGS-283813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×380×130 mm (11.02×14.96×5.12 in)
Mounting plate dimension M1 × M2
249 × 348 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2838 PG (Plastic, PG type), 2838 P (Plastic, P type), 2838 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

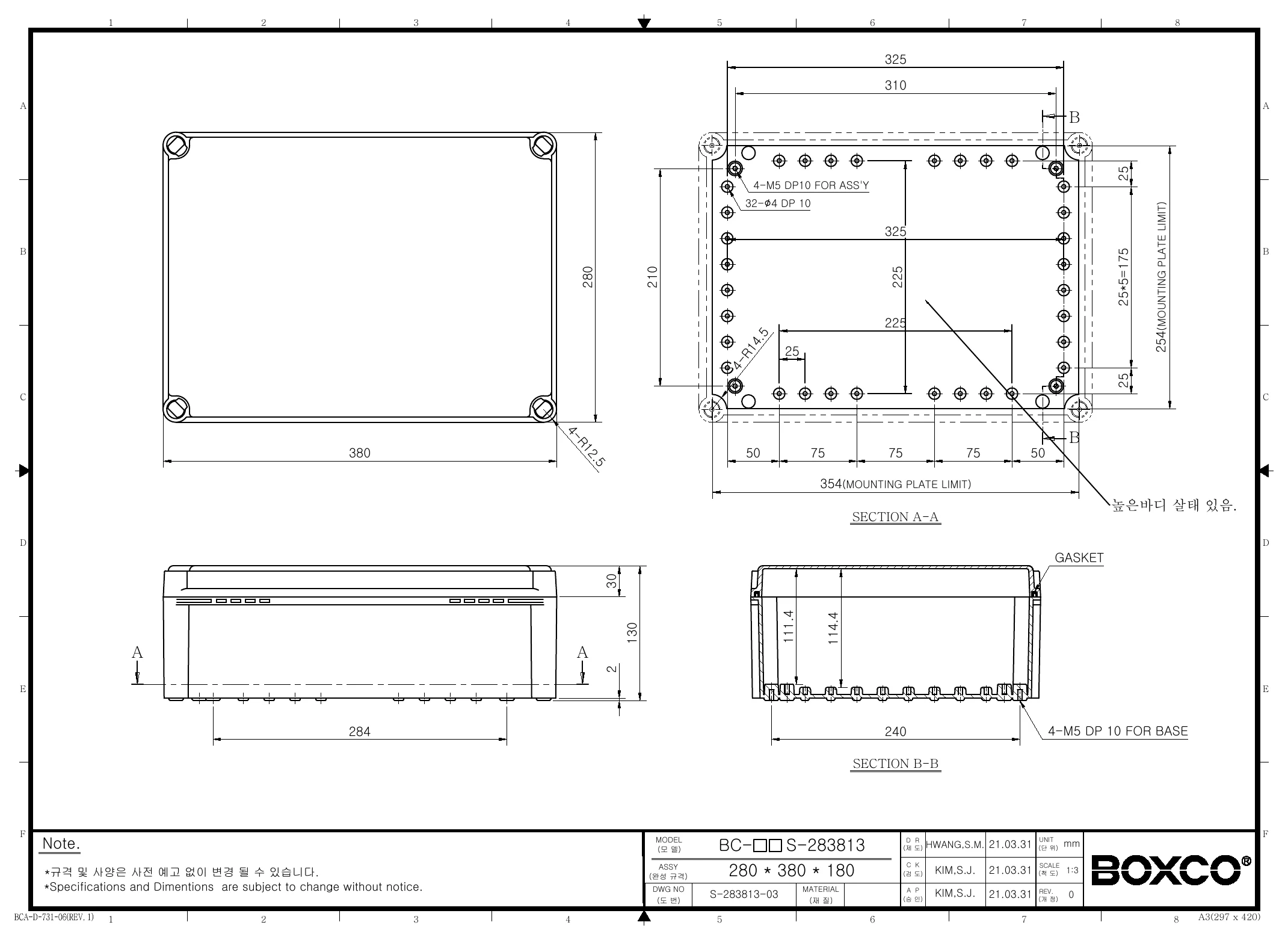

Technical drawings

BC-CGS-283813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series plastic enclosure best suited for?

This enclosure is designed for protecting electronic and control components in industrial or commercial environments where dust, moisture, and impact resistance matter. Its anti-static material and high-impact polycarbonate construction make it a practical choice for housing sensitive equipment in both indoor and outdoor applications.

Is this enclosure suitable for outdoor use?

Yes. This Boxco S-Series model includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also supports strong protection against dust and water ingress in exposed environments.

What are the key specifications of this enclosure?

This model measures 11.02 x 14.96 x 5.12 inches (280 x 380 x 130 mm) and weighs 1.69 kg. It is made from polycarbonate with a grey cover, uses a screw-type cover design, carries IP67 and IK08 ratings, and has an operating temperature range of -40 degrees C to 110 degrees C.

How durable is this enclosure for demanding environments?

This enclosure is built from high-impact resistant polycarbonate and is rated IK08 for impact protection. It is designed to resist breakage during machining processes such as hole and press processing while also maintaining strong waterproof and dust-proof performance through its precision-injected gasket.

What internal mounting features does this model include?

This enclosure includes mounting plate attachment points that allow an internal mounting plate to be secured to brass inserted injection molding for heavier installed equipment. It also has pre-molded mounting screw nuts to support mounting of DIN rail or other internal hardware.

How does the screw-type cover benefit this enclosure compared with lighter-duty designs?

The screw-type cover is intended to provide a more secure closure for applications that need dependable environmental protection and enclosure strength. On this model, the cover bolt attachment points use molded screw threads to help maximize strength and support the enclosure's IP67-rated design.
