Boxco

Boxco S-Series 280x380x130mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-283813
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-283813 is a 280×380×130 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CTS-283813Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×380×130 mm (11.02×14.96×5.12 in)
Mounting plate dimension M1 × M2
249 × 348 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2838 PG (Plastic, PG type), 2838 P (Plastic, P type), 2838 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

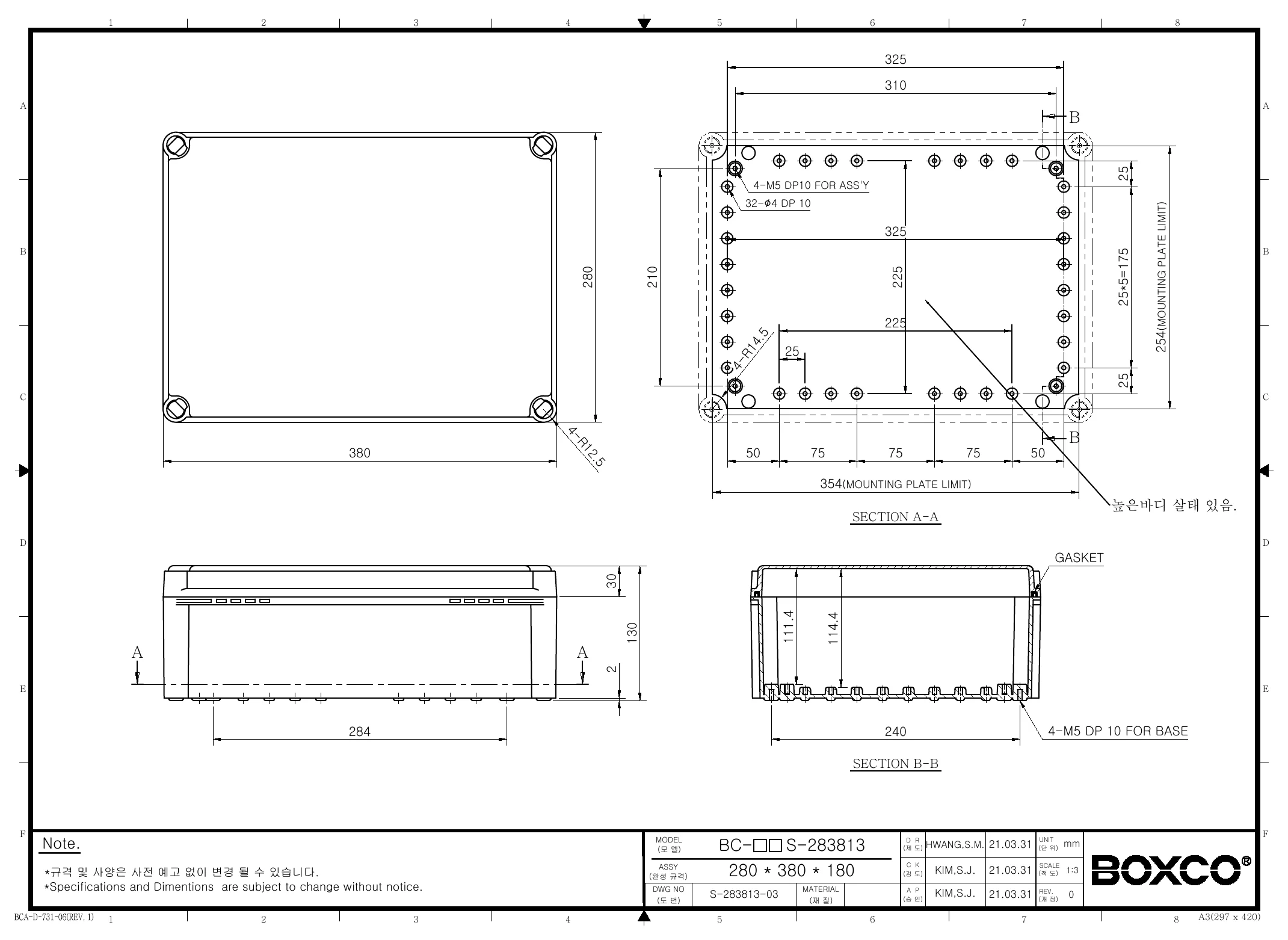

Technical drawings

BC-CTS-283813 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series plastic enclosure best suited for?

This model is a good fit for protecting control components, monitoring devices, and other electronics that need a sealed non-metallic enclosure. Its IP67 rating, IK08 impact resistance, and UV-stabilized polycarbonate construction make it especially relevant for industrial and outdoor equipment housings. The transparent cover is also useful when operators need to visually inspect indicators or internal components without opening the box.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this enclosure is built for demanding environments where water, dust, and weather exposure matter. It is rated IP67 for sealing performance, and the product description states that a UV stabilizer is added for outdoor use. The operating temperature range of -40 degrees C to 110 degrees C also supports use in both cold and high-heat conditions.

What are the key specifications of this enclosure?

This Boxco S-Series enclosure measures 11.02 x 14.96 x 5.12 inches, which is 280 x 380 x 130 mm. It is made from polycarbonate with a transparent screw-type cover, weighs 1.686 kg, and carries IP67 and IK08 ratings. The listed warranty period is 1 year.

Why would I choose a transparent-cover enclosure instead of a solid-cover version?

A transparent cover helps when you need to view status lights, displays, or internal labeling without opening the enclosure. That can reduce unnecessary access while still allowing quick visual checks. For this model, you still get the same core enclosure format with screw-type closure and environmental protection.

Can this enclosure handle heavier internal equipment or accessory mounting?

This model is designed with features that support internal equipment mounting. The description specifies internal mounting plate attachment points with brass-inserted injection molding, along with pre-molded mounting screw nuts for DIN rail or other equipment. Those details make it better suited for more structured internal layouts than a basic empty box.

What material advantages does this polycarbonate enclosure provide?

The enclosure is described as using high-impact-resistant material that helps resist external impact and reduce breakage during hole and press processing. It also uses anti-static material to help protect sensitive electronic instruments from static electricity. For buyers comparing enclosure materials, that makes this model a practical choice where toughness and electronics protection both matter.
