Boxco

Boxco S-Series 280x380x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-283818
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-283818 is a 280×380×180 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-AGS-283818Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×380×180 mm (11.02×14.96×7.09 in)
Mounting plate dimension M1 × M2
249 × 348 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2838 PG (Plastic, PG type), 2838 P (Plastic, P type), 2838 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

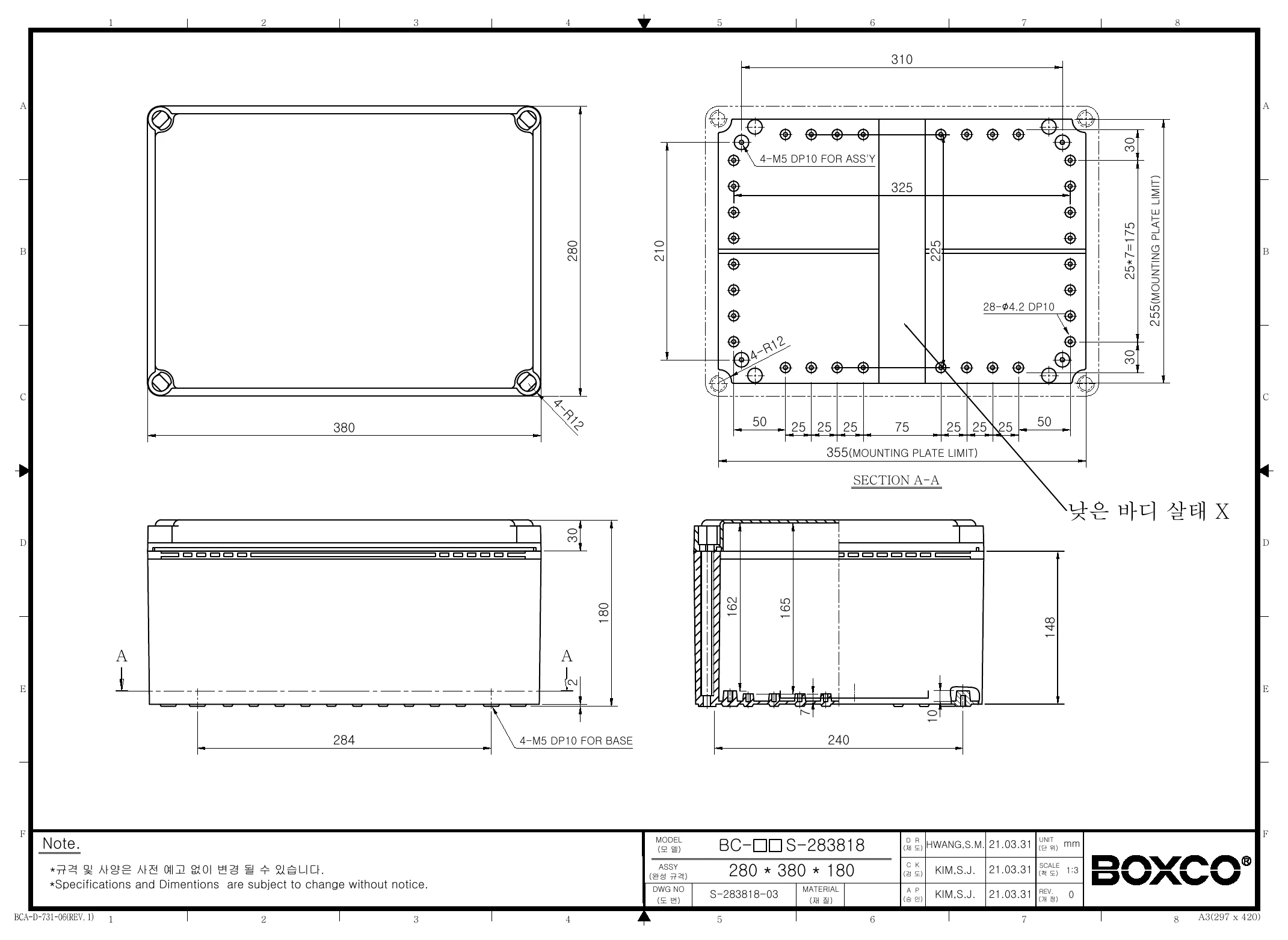

Technical drawings

BC-AGS-283818 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure suited for?

This enclosure is designed for protecting electrical or electronic equipment in industrial and commercial environments where a sealed non-metallic housing is needed. Its ABS construction, IP67 sealing, and IK08 impact rating make it a practical choice for control, instrumentation, and general-purpose protective enclosure use.

Can this enclosure be used outdoors?

Yes. The product description states that Boxco S-Series enclosures include an ultraviolet stabilizer for outdoor usage, helping reduce visible color change over long periods. It is also rated IP67 for strong protection against dust and water ingress.

What are the main specifications of this enclosure?

This model measures 11.02 x 14.96 x 7.09 inches (280 x 380 x 180 mm) and is made from ABS with a grey cover. It carries IP67 and IK08 ratings, weighs 1.696 kg, and has an operating temperature range of -40 C to 70 C.

How does this model support internal equipment mounting?

This enclosure includes internal mounting plate attachment points with brass inserted injection molding for securely supporting heavier installed equipment. It also has pre-molded mounting screw nuts that can be used to fix DIN rail or other hardware inside the enclosure.

How does this enclosure compare with a basic plastic enclosure?

Compared with a basic plastic box, this Boxco S-Series model adds stronger environmental and durability features such as IP67 sealing, IK08 impact resistance, UV stabilization, and anti-static material. It also includes molded mounting features and a precision-injected gasket for better dust-proof and waterproof performance.

Is this enclosure suitable for sensitive electronic equipment?

Yes. The description specifies that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a better fit for applications where electrostatic protection is a consideration.

What environmental conditions can this enclosure handle?

This model is rated for operation from -40 C to 70 C, which supports use in both low-temperature and elevated-temperature environments within that range. Its IP67 rating also helps protect the enclosure contents from dust and water ingress in demanding conditions.
