Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 280x380x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-283818
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGS-283818 is a 280×380×180 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CGS-283818Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×380×180 mm (11.02×14.96×7.09 in)
Mounting plate dimension M1 × M2
249 × 348 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
2838 PG (Plastic, PG type), 2838 P (Plastic, P type), 2838 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

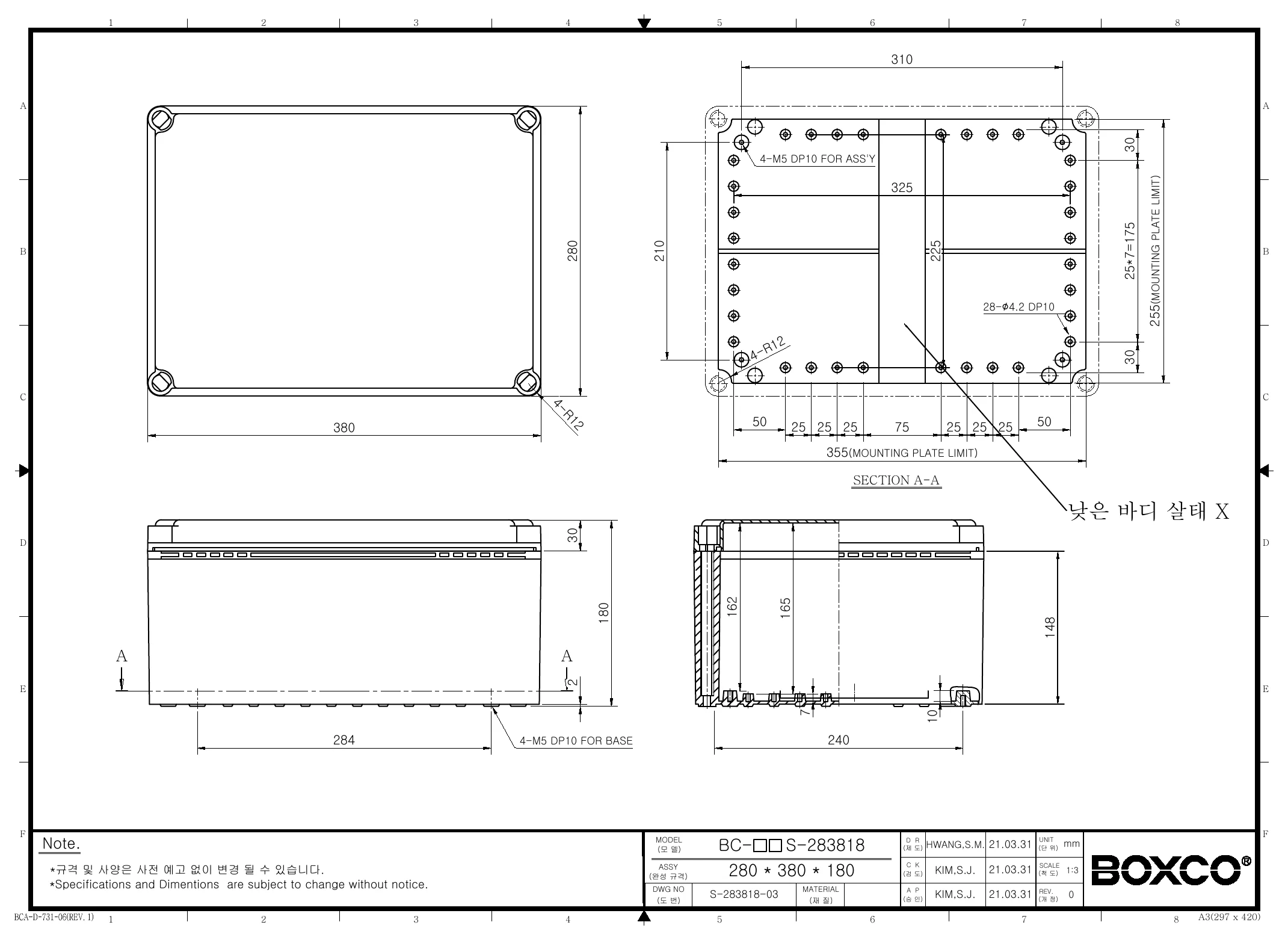

Technical drawings

BC-CGS-283818 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This enclosure is designed to protect electrical or electronic components in industrial and commercial equipment housings. Its large internal form factor, impact resistance, and sealed construction make it a practical choice for control, protection, or instrumentation applications where durability matters.

Is this enclosure suitable for outdoor or washdown environments?

Yes. This model is rated IP67 for protection against dust and water ingress, and the S-Series description states that ultraviolet stabilizer is added for outdoor usage. The molded gasket is also designed to support strong waterproof and dust-proof performance.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and has a grey cover. The product description also notes high impact resistance and anti-static material properties, which can help protect sensitive electronic instruments from static electricity.

What are the dimensions of this enclosure?

The enclosure measures 11.02 x 14.96 x 7.09 inches, which corresponds to 280 x 380 x 180 mm. This larger size can be useful when a project needs more internal space for mounted components and accessories.

What temperature range can this enclosure handle?

This model is specified for use from -40 °C to 110 °C. That wide operating range makes it suitable for demanding environments where both low and high temperatures are a consideration.

Does this enclosure support internal mounting hardware or equipment mounting?

Yes. The product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features support secure mounting of compatible internal hardware such as rails or plates inside the enclosure.
