Boxco

Boxco S-Series 280x380x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-283818
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-283818 is a 280×380×180 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CTS-283818Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
280×380×180 mm (11.02×14.96×7.09 in)
Mounting plate dimension M1 × M2
249 × 348 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
2838 PG (Plastic, PG type), 2838 P (Plastic, P type), 2838 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

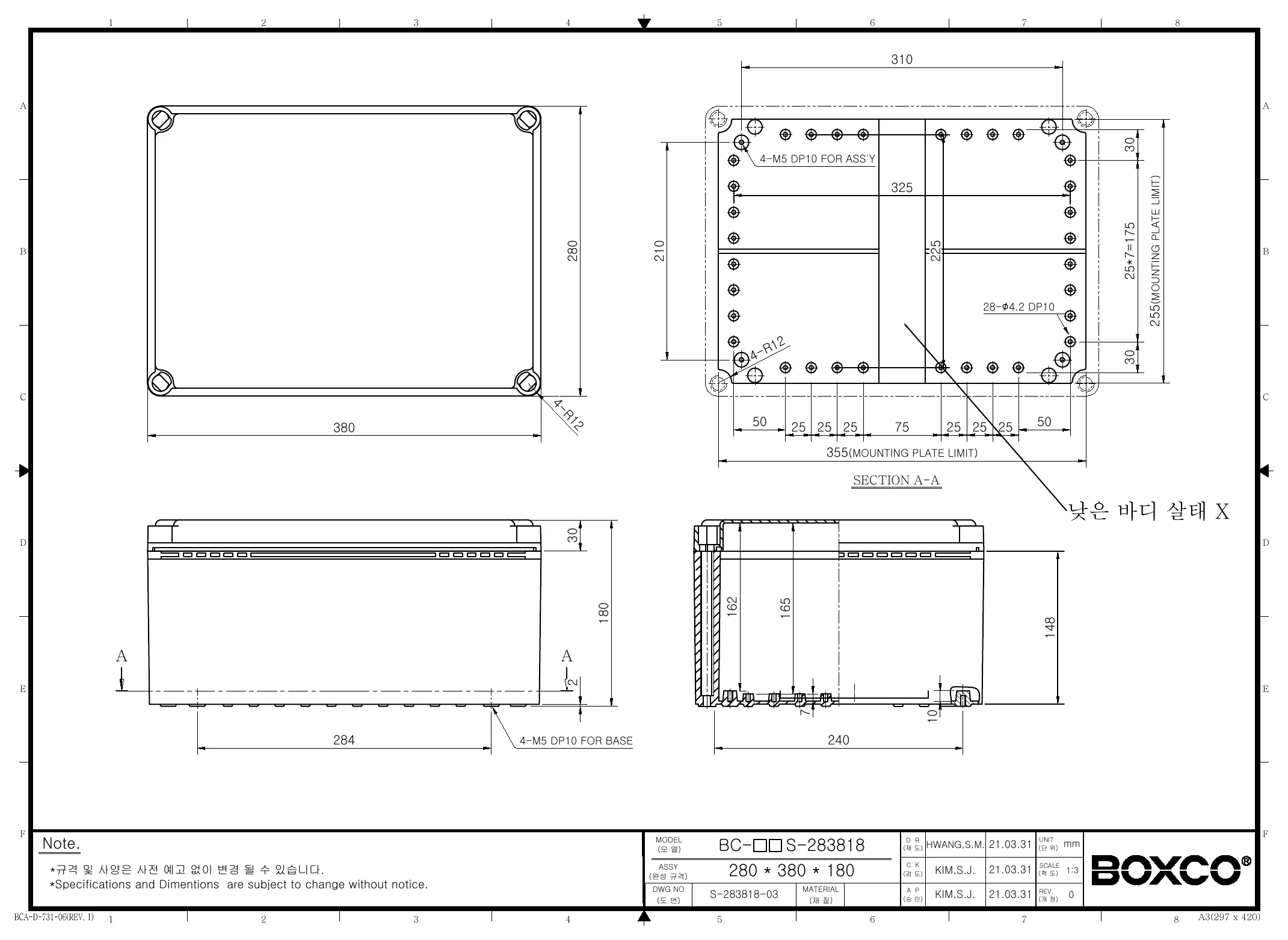

Technical drawings

BC-CTS-283818 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure suited for?

This enclosure is suited for protecting industrial controls, monitoring devices, and other sensitive equipment in indoor or outdoor environments. Its high-impact plastic construction, transparent cover, and internal mounting features make it practical for applications where equipment needs protection while still allowing visual inspection.

Is this enclosure appropriate for outdoor or washdown environments?

Yes, this model is designed for demanding environments with an IP67 rating for strong protection against dust and water ingress. The product description also notes an ultraviolet stabilizer for outdoor use, helping reduce visible color change over time.

What are the key specifications of this enclosure?

This Boxco S-Series enclosure measures 11.02 x 14.96 x 7.09 inches, or 280 x 380 x 180 mm. It is made from polycarbonate with a transparent screw-type cover, carries IP67 and IK08 ratings, weighs 2.087 kg, and is rated for temperatures from -40 °C to 110 °C.

How durable is this plastic enclosure for industrial use?

This model is built from high-impact resistant polycarbonate and carries an IK08 impact rating, which supports use in tougher industrial settings. The description also highlights resistance to breakage during hole and press processing, making it a durable choice for equipment protection.

Does this enclosure support internal component mounting?

Yes, the enclosure includes internal mounting plate attachment points designed to secure a mounting plate tightly using brass inserted injection molding. It also features pre-molded mounting screw nuts that support mounting DIN rail or other internal equipment.

What makes the transparent cover useful on this model?

The transparent cover allows visibility of indicators, displays, or internal components without opening the enclosure. That can be useful in applications where quick visual checks are needed while maintaining the enclosure's protective housing.
