Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 330x430x180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-334318
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATS-334318 is a 330×430×180 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-ATS-334318Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
330×430×180 mm (12.99×16.93×7.09 in)
Mounting plate dimension M1 × M2
294 × 394 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3343 P (Plastic, P type), 3343 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

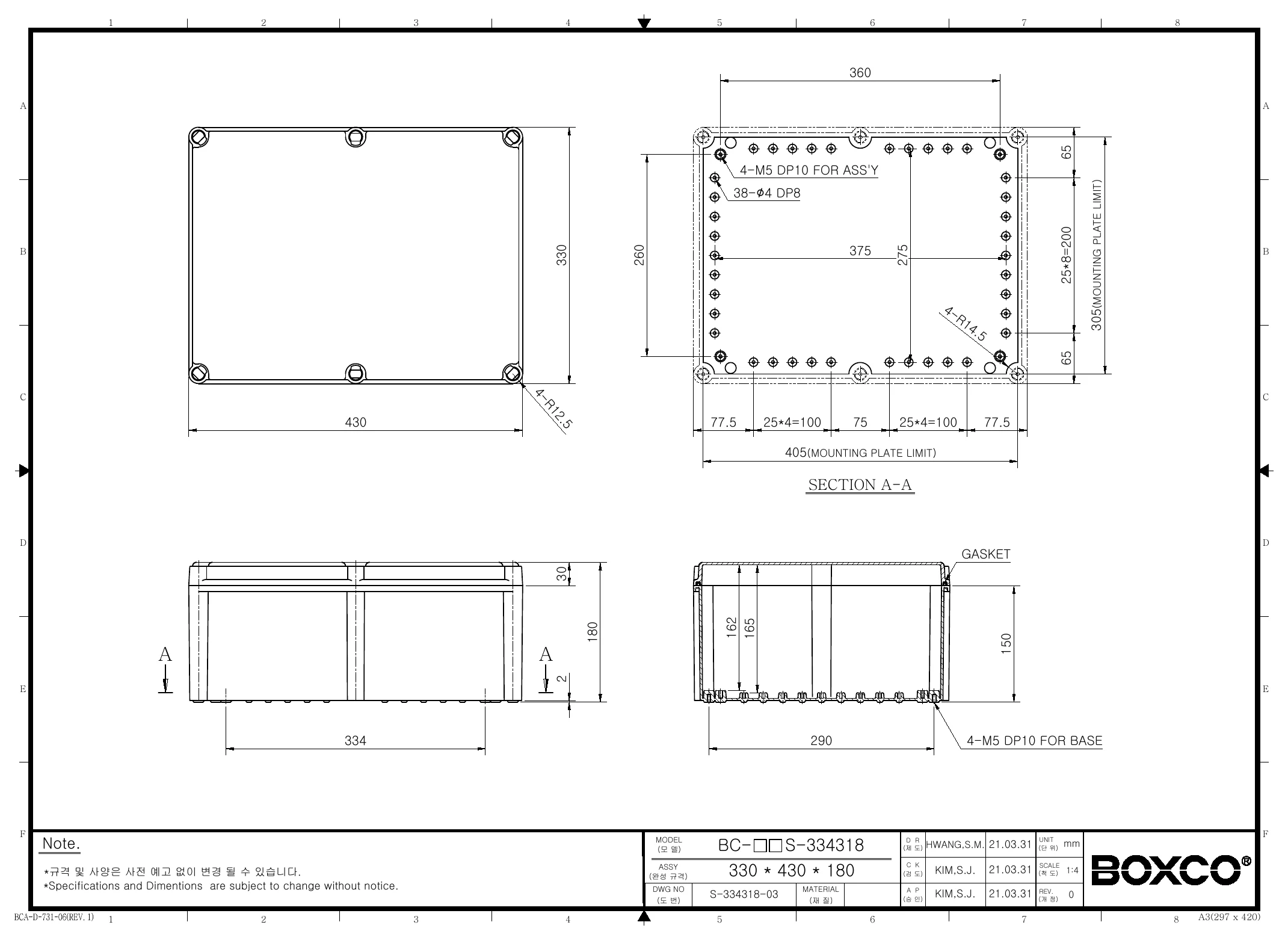

Technical drawings

BC-ATS-334318 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure typically used for?

This Boxco S-Series enclosure is suited for protecting control, monitoring, and instrumentation components that need a sealed plastic housing. Its anti-static ABS construction and transparent screw cover make it a practical choice for electronic assemblies that benefit from visibility and added protection from dust, water, and impact.

Is this enclosure suitable for outdoor or washdown environments?

Yes, this model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The description also notes an ultraviolet stabilizer for outdoor usage, helping the enclosure maintain its performance with less visible color change over time.

What are the size and material details for this model?

This enclosure measures 12.99 x 16.93 x 7.09 inches, which is 330 x 430 x 180 mm. It is made from ABS and includes a transparent cover, giving you a non-metallic housing with internal visibility for inspection without opening it.

How durable is this plastic enclosure?

This model carries an IK08 impact rating, indicating resistance to mechanical impact in demanding industrial settings. Boxco also describes the material as high-impact resistant, designed to reduce breakage during machining and processing.

What mounting and internal equipment support features does this enclosure include?

The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts for securing internal hardware. These features help support heavier installed equipment and make the enclosure more adaptable for organized internal layouts.

What temperature range can this enclosure handle?

This model is specified for operation from -40 °C to 70 °C. That range makes it appropriate for many industrial and outdoor applications where equipment may be exposed to both low and elevated ambient temperatures.

Why choose this screw-cover ABS enclosure instead of a lighter-duty general-purpose box?

This model stands out with its IP67 sealing, IK08 impact rating, UV-stabilized ABS body, anti-static material, and transparent screw-fastened cover. Compared with a basic utility box, it is better suited for harsher environments and more demanding electronics protection requirements.
