Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 330x430x180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-334318
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-334318 is a 330×430×180 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CGS-334318Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
330×430×180 mm (12.99×16.93×7.09 in)
Mounting plate dimension M1 × M2
294 × 394 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
3343 P (Plastic, P type), 3343 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

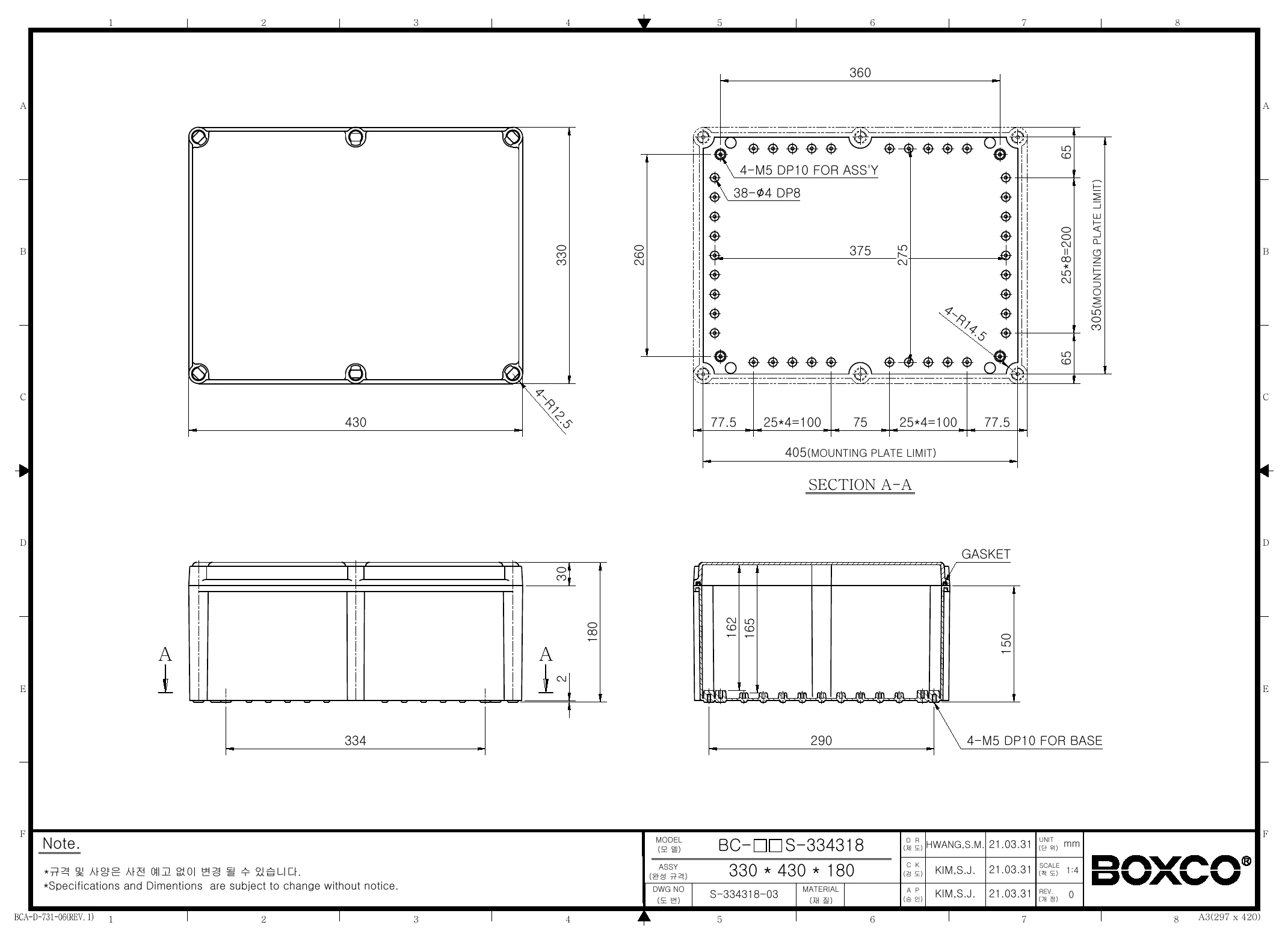

Technical drawings

BC-CGS-334318 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 330x430x180mm plastic enclosure suited for?

This enclosure is suited for protecting electrical and control components in indoor or outdoor industrial environments where dust and water resistance matter. Its large 12.99 x 16.93 x 7.09 inch size also makes it a practical choice for housing larger assemblies or multiple components in one enclosure.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods of exposure. Its IP67 rating also supports use in demanding environments where protection from water and dust is important.

What do the IP67 and IK08 ratings mean for this model?

This model is rated IP67 for protection against dust and water ingress, and IK08 for impact resistance. Combined with its high impact resistant construction, these ratings make it a strong option for environments where the enclosure may be exposed to weather, dust, or incidental physical contact.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 110 °C. That range makes it suitable for applications exposed to both low-temperature and elevated-temperature conditions within those limits.

What material and construction features distinguish this enclosure?

This model uses PC material and includes anti-static properties to help protect sensitive electronic instruments from static electricity. It also features brass-inserted mounting plate attachment points, pre-molded mounting screw nuts, an injected gasket for waterproof and dust-proof performance, and molded cover bolt attachment points for strength.

What are the key physical specifications of this enclosure?

This Boxco S-Series enclosure measures 12.99 x 16.93 x 7.09 inches, which is also listed as 330 x 430 x 180 mm. The unit weight is 2.6900 kg, and it includes a grey cover with a screw-type design.
