Boxco S-Series 380x560x180mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-385618
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-385618 is a 380×560×180 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series plastic junction box's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • BOXCO's electrical junction box is designed as 4 side sliding type to be strong against impact.
  • S series enclosure's are suitable for mounting electrical components and available wall mounting. Our waterproof plastic enclosures are available in ABS and polycarbonate material.

Specifications

BC-CTS-385618Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
380×560×180 mm (14.96×22.05×7.09 in)
Mounting plate dimension M1 × M2
345 × 531 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
3856 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

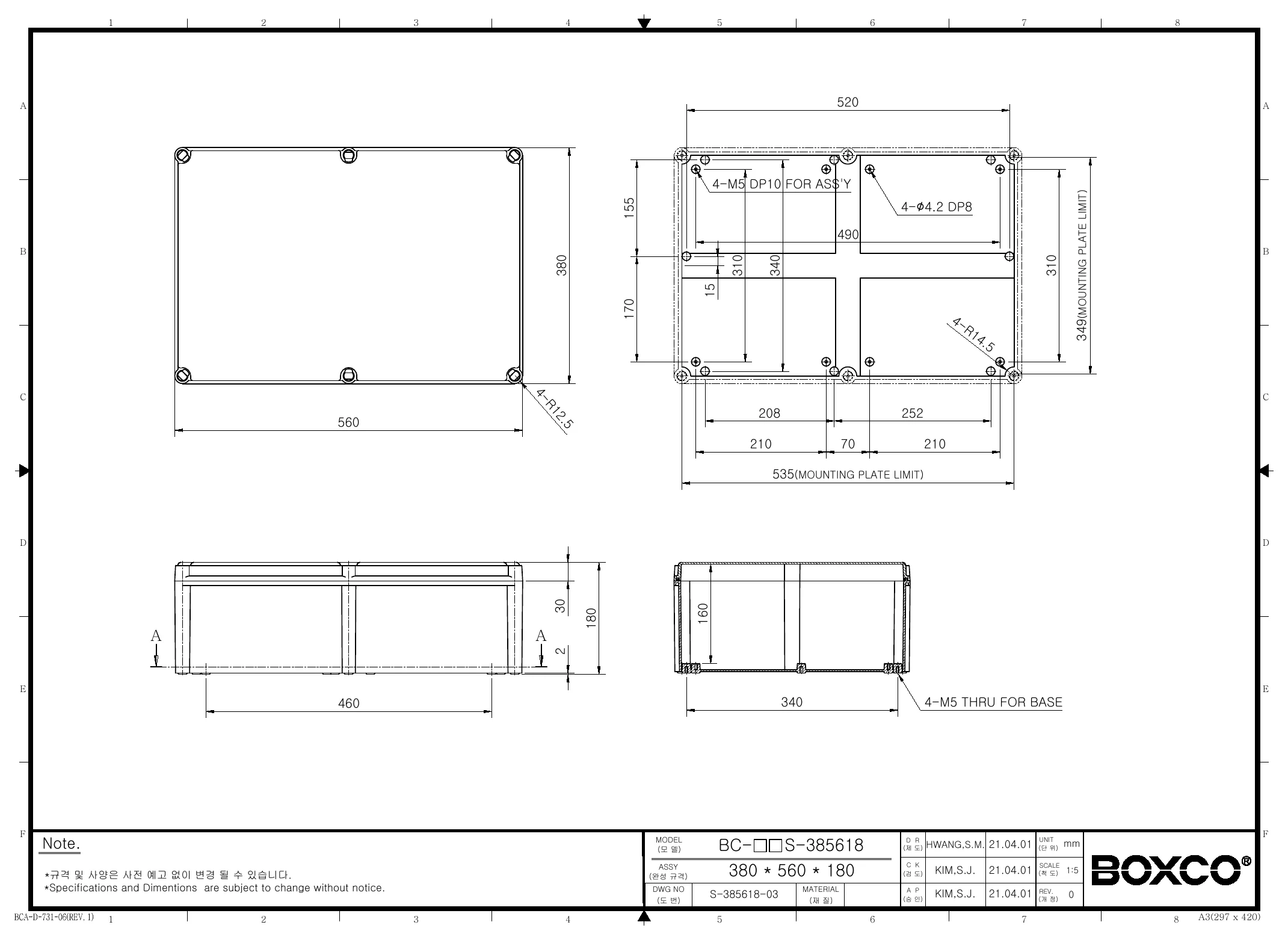

Technical drawings

BC-CTS-385618 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What size is this Boxco S-Series plastic enclosure?

This model measures 14.96 x 22.05 x 7.09 inches, which is 380 x 560 x 180 mm. It is one of the larger S-Series enclosure sizes, suited to applications that need more internal space for equipment and mounting hardware.

Is this enclosure suitable for outdoor or washdown environments?

Yes. This enclosure is rated IP67 for protection against dust ingress and temporary water exposure, and the product description states that an ultraviolet stabilizer is added for outdoor usage. Those features make it a strong fit for demanding industrial or exposed environments where weather resistance matters.

How impact-resistant is this enclosure?

This model carries an IK08 impact rating and is described as being made from high impact resistant material. That makes it a better choice for installations where the enclosure may face incidental knocks or tougher handling than lighter-duty plastic boxes.

What kind of applications is this enclosure commonly used for?

This enclosure is intended for housing and protecting sensitive electronic instruments and other internal equipment that need a sealed, durable enclosure. Its large footprint, transparent cover, and internal mounting provisions make it suitable for industrial control, monitoring, or equipment protection applications where visual inspection is useful.

Does this enclosure support internal mounting plates or DIN rail accessories?

Yes. The description specifically notes mounting plate attachment points with brass inserted injection molding and pre-molded mounting screw nuts for fixing DIN rail or other equipment. That makes this model better suited for organized internal component mounting than a plain empty box.

What material and cover style does this model use?

This enclosure is made from PC and comes with a transparent cover in a screw-type design. That combination is useful when you want the strength and durability of polycarbonate along with quick visual access to internal indicators or components without opening the box.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 C to 110 C. That gives this model a broad working range for both cold and high-heat environments compared with general-purpose indoor enclosures.
