Boxco

Boxco S-Series 50x65x55mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-050605
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-050605 is a 50×65×55 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-050605Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
50×65×55 mm (1.97×2.56×2.17 in)
Mounting plate dimension M1 × M2
40 × 55 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0506 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

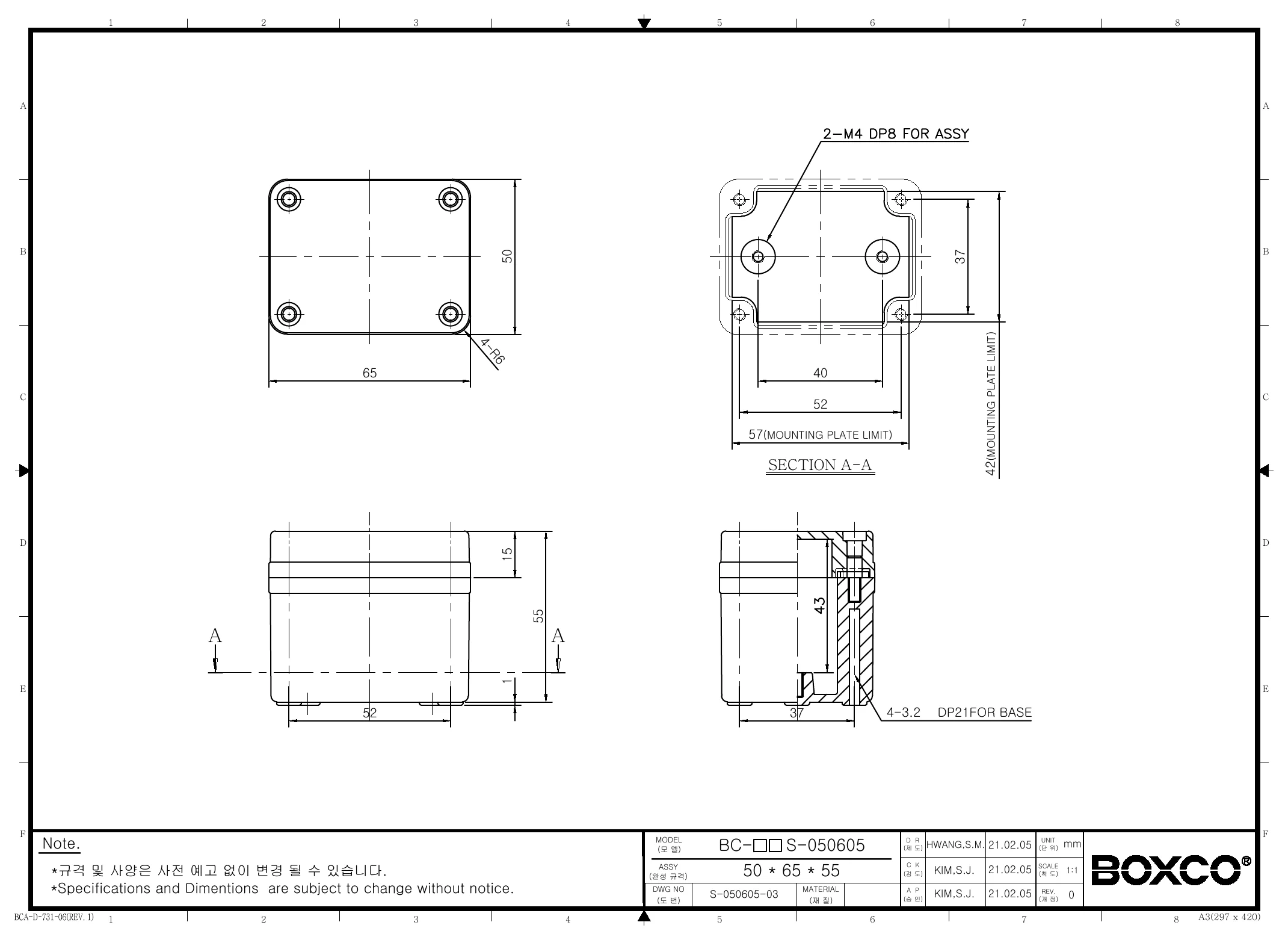

Technical drawings

BC-CGS-050605 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-CGS-050605 enclosure best suited for?

This model is suited to compact control, sensing, and electronics protection applications where a sealed non-metallic enclosure is needed. Its IP67 rating, IK08 impact resistance, and polycarbonate construction make it a practical choice for indoor or outdoor industrial and commercial equipment housings.

Is the BC-CGS-050605 suitable for outdoor environments?

Yes. Boxco states that the S-Series includes an ultraviolet stabilizer for outdoor use, which helps limit visible color change over long exposure periods. The enclosure is also rated IP67, which supports strong protection against dust and water ingress.

What are the main specifications of this enclosure?

The BC-CGS-050605 measures 1.97 x 2.56 x 2.17 inches (50 x 65 x 55 mm) and weighs 0.0900 kg. It is a screw-type polycarbonate enclosure with a grey cover, rated IP67 and IK08, and it is specified for operation from -40 degrees C to 110 degrees C.

Does this enclosure support internal mounting hardware or equipment brackets?

Yes. The product description states that it includes internal mounting plate attachment points with brass-inserted injection molding for securing heavier internal equipment. It also has pre-molded mounting screw nuts that can be used for DIN rail or similar internal hardware.

How does this screw-cover enclosure compare with lighter-duty plastic boxes?

This model is positioned as a more durable sealed enclosure, with IK08 impact resistance, IP67 protection, and molded screw-thread cover attachment points for strength. Boxco also highlights high-impact-resistant material, anti-static protection for sensitive electronic instruments, and a precision-injected gasket for waterproof and dust-proof performance.
