Boxco

Boxco S-Series 65x95x55mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-060905
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-060905 is a 65×95×55 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-060905Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
65×95×55 mm (2.56×3.74×2.17 in)
Mounting plate dimension M1 × M2
54 × 84 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0609 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

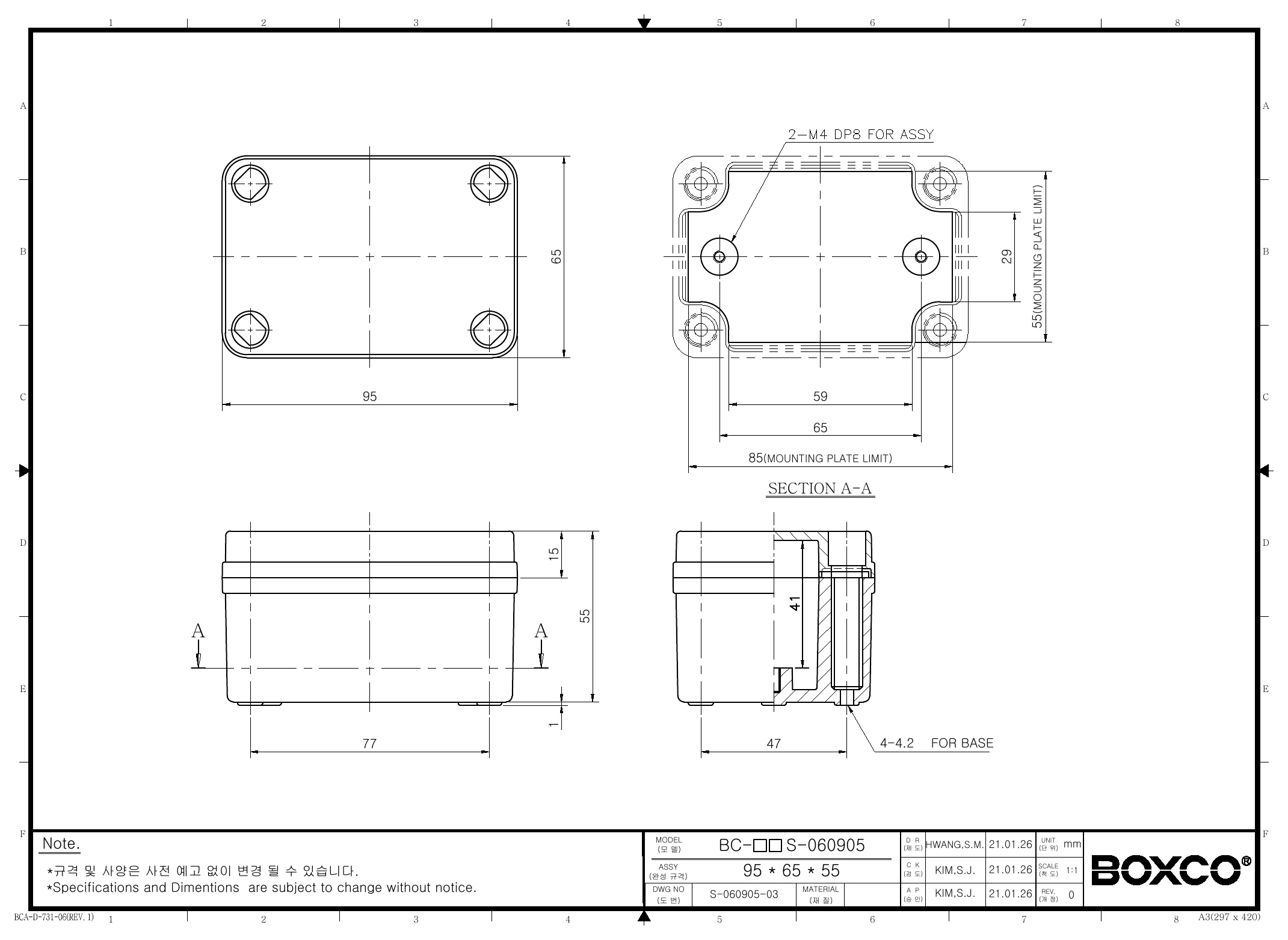

Technical drawings

BC-CGS-060905 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 65x95x55mm plastic enclosure suited for?

This model is suited for compact electronic control, monitoring, and instrumentation assemblies that need a sealed non-metallic housing. Its anti-static PC construction and internal equipment-mounting features make it a practical choice for protecting sensitive electronics in industrial or outdoor environments.

Is this enclosure suitable for outdoor or washdown environments?

Yes. This enclosure is rated IP67 for dust and water protection, and the PC material includes an ultraviolet stabilizer for outdoor use. The molded gasket is designed to support strong waterproof and dust-proof performance, and the IK08 impact rating adds protection against external impact.

What are the key specifications of this enclosure?

This Boxco S-Series enclosure measures 2.56 x 3.74 x 2.17 inches, or 65 x 95 x 55 mm, and weighs 0.146 kg. It uses polycarbonate construction with a grey cover, a screw-type closure, an IP67 ingress rating, an IK08 impact rating, and a stated operating range of -40 degrees C to 110 degrees C.

Can this enclosure support internal mounting hardware and components?

Yes. This model includes internal mounting plate attachment points with brass inserted injection molding so an internal mounting plate can be fixed securely. It also has pre-molded mounting screw nuts that can be used to secure DIN rail or other internal equipment.

Why choose this screw-type Boxco S-Series enclosure for demanding industrial use?

This model combines a compact footprint with several durability-focused details, including molded cover threads, an injected gasket, UV-stabilized PC, and anti-static material. For buyers comparing compact enclosures, those features help this unit stand out when sealed protection, impact resistance, and stable long-term outdoor appearance matter.
