Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 65x95x55mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-060905
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-060905 is a 65×95×55 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-060905Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
65×95×55 mm (2.56×3.74×2.17 in)
Mounting plate dimension M1 × M2
54 × 84 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0609 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

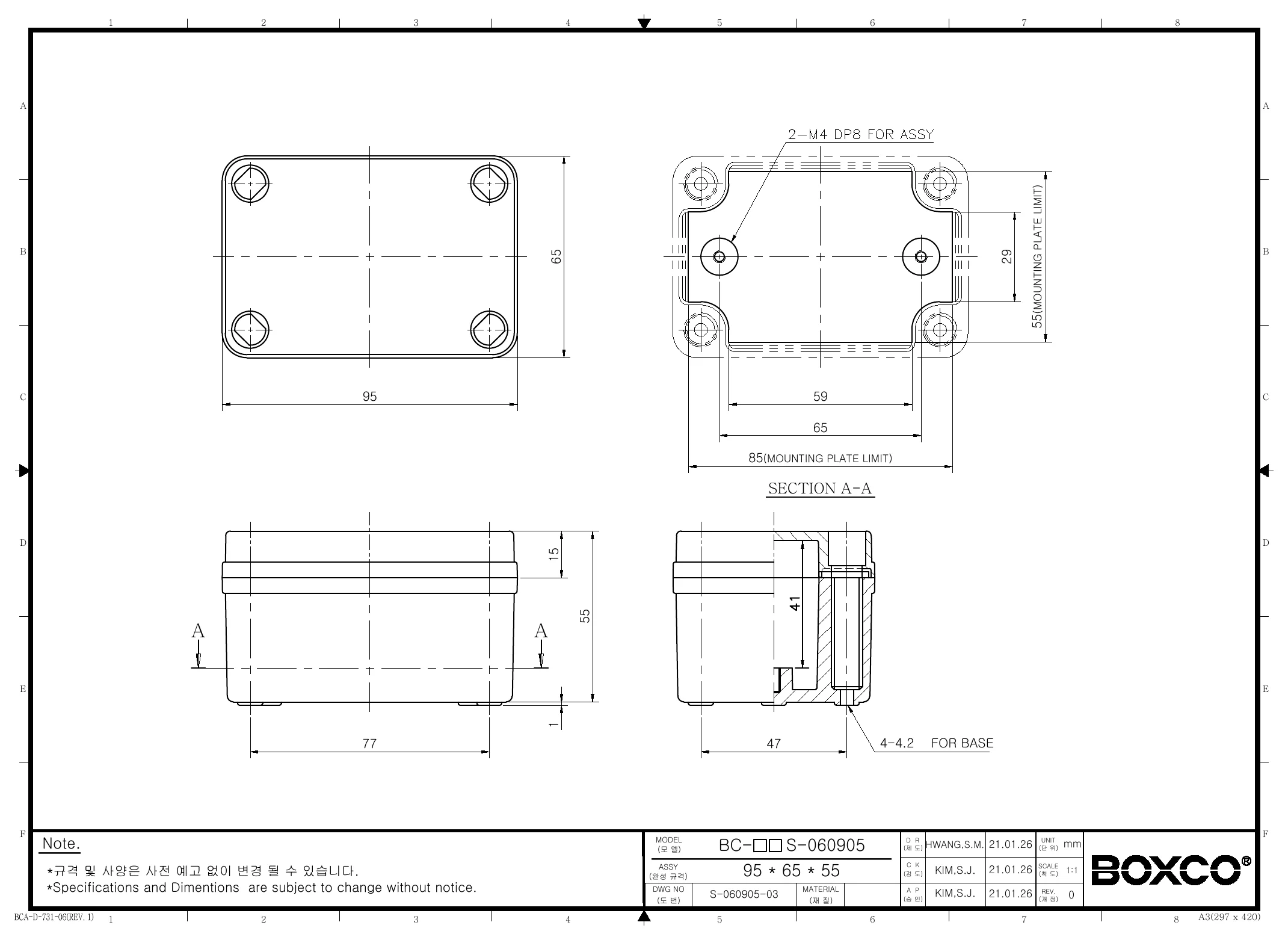

Technical drawings

BC-CTS-060905 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this enclosure best suited for?

This Boxco S-Series enclosure is suited for protecting electronic and industrial components in indoor or outdoor environments where dust, water, and impact resistance matter. Its transparent cover also makes it useful when visual inspection of internal indicators or components is needed without opening the box.

What are the dimensions of this enclosure?

This model measures 2.56 x 3.74 x 2.17 inches, which corresponds to 65 x 95 x 55 mm. That compact size makes it appropriate for smaller control, monitoring, or protection assemblies that need a sealed housing.

How protective is this enclosure against water, dust, and impact?

This enclosure is rated IP67 and IK08. That means it is designed for strong dust protection, resistance to temporary water exposure, and solid impact resistance for demanding industrial and outdoor use.

Is this enclosure suitable for outdoor use?

Yes, the product description states that an ultraviolet stabilizer is added for outdoor usage. The enclosure is also designed to resist color change over time and includes a gasket intended to support waterproof and dust-proof performance.

What material is this enclosure made from?

This model is made from PC material and includes a transparent cover. The product description also notes anti-static material use and high impact resistance to help protect sensitive electronic instruments and improve durability during processing.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 °C up to 110 °C. That range supports applications exposed to both low and high ambient temperatures, depending on the rest of the system design.

Does this enclosure support internal mounting hardware or accessories?

Yes, the product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features can help support mounting plates, DIN rail-related hardware, or other internal equipment within the enclosure.
