Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 75x105x55mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-071005
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-071005 is a 75×105×55 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-071005Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
75×105×55 mm (2.95×4.13×2.17 in)
Mounting plate dimension M1 × M2
65 × 93 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0710 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

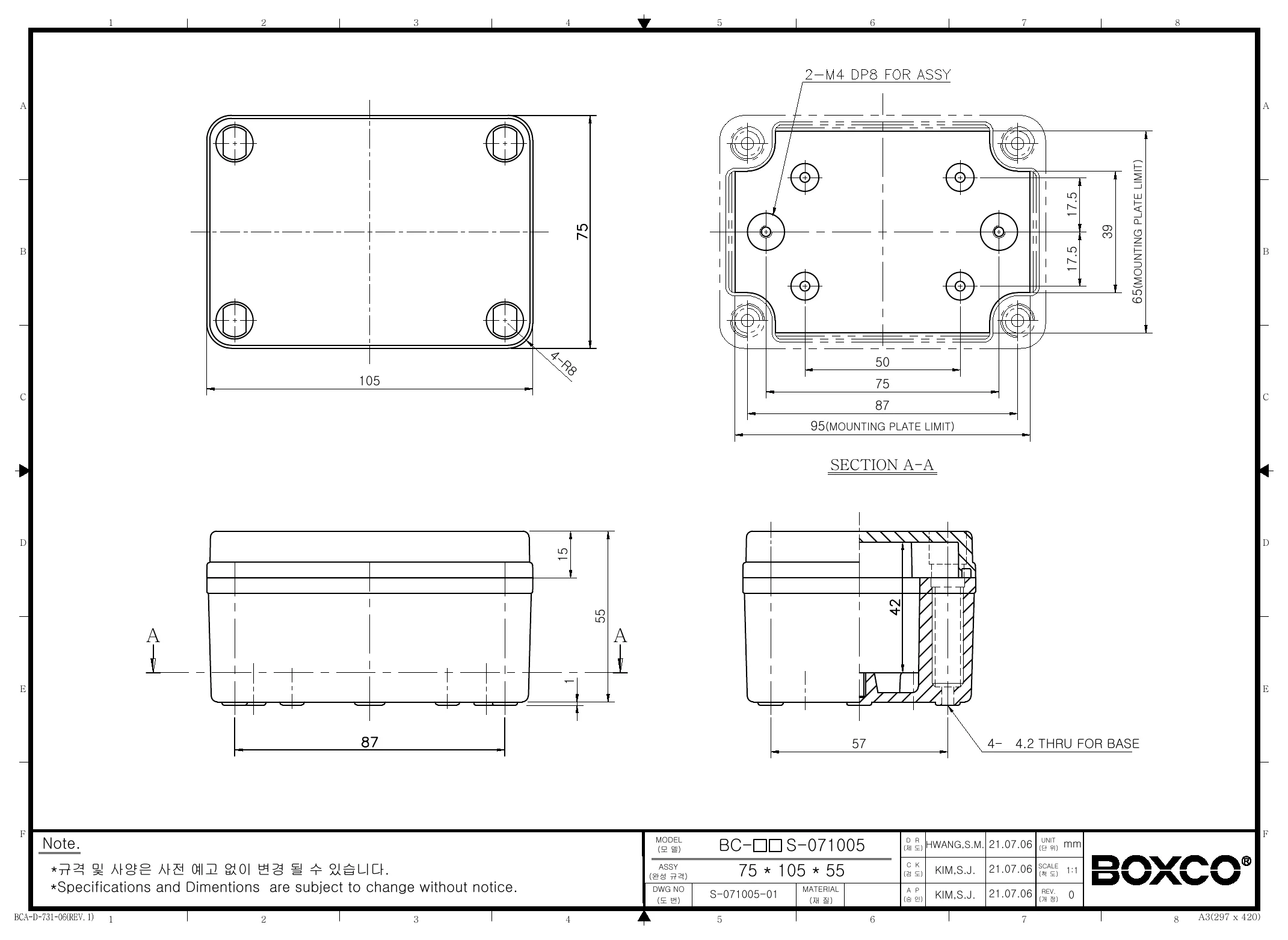

Technical drawings

BC-CGS-071005 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure designed for?

This model is a plastic enclosure intended to protect electrical or electronic components in industrial and commercial applications. Its IP67 and IK08 ratings, along with UV-stabilized polycarbonate construction, make it a practical choice where environmental protection and impact resistance matter.

What are the dimensions of this enclosure?

The enclosure measures 2.95 x 4.13 x 2.17 inches, which is 75 x 105 x 55 mm. That size makes it suitable for compact assemblies that still need a durable protective housing.

Is this enclosure suitable for outdoor use?

Yes, this Boxco S-Series model is built for outdoor use. The description states that an ultraviolet stabilizer is added to help protect the enclosure from long-term sun exposure and reduce visible color change over time.

How well does this enclosure protect against water, dust, and impact?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. It is also rated IK08 for impact resistance, and the product description highlights its high-impact material and gasket design for reliable environmental sealing.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and includes a grey cover. The product description also notes anti-static material properties and high impact resistance, which can help protect sensitive instruments and support demanding use conditions.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 110 °C. That range supports use in both very cold and high-heat environments where a standard plastic enclosure may be less suitable.
