Boxco

Boxco S-Series 75x105x55mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-071005
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-071005 is a 75×105×55 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-071005Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
75×105×55 mm (2.95×4.13×2.17 in)
Mounting plate dimension M1 × M2
65 × 93 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0710 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

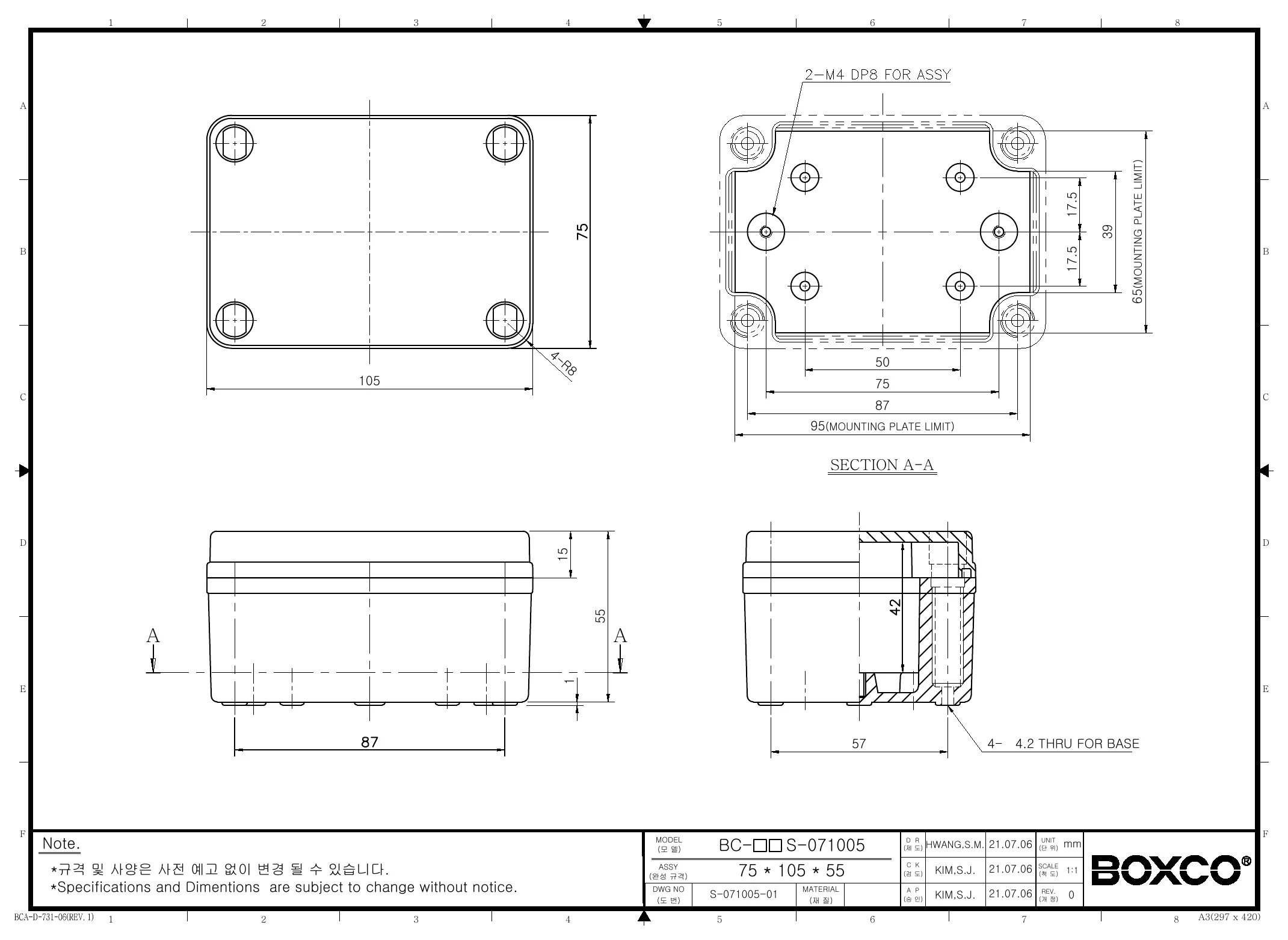

Technical drawings

BC-CTS-071005 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure best suited for?

This enclosure is suited for protecting sensitive electronic components in industrial, commercial, and outdoor equipment housings. Its transparent cover is useful when components or indicators need to remain visible without opening the box.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that ultraviolet stabilizer is added to help protect the enclosure in outdoor environments and reduce visible color change over time. The IP67 rating also supports use where protection from dust and temporary water exposure is important.

What material is this enclosure made from?

This model is made from polycarbonate and includes a transparent cover. The product description also notes anti-static material and high impact resistance for protecting sensitive instruments and improving durability during processing.

What does the IP67 and IK08 rating mean for this model?

IP67 indicates this enclosure is built to provide strong protection against dust and water ingress. IK08 indicates resistance to mechanical impact, which supports use in tougher environments where the enclosure may be exposed to physical contact or shocks.

What is the operating temperature range for this enclosure?

This model is rated for temperatures from -40 degrees C to 110 degrees C. That range makes it suitable for applications exposed to both low and high ambient temperatures within those limits.

What size is this enclosure?

The enclosure measures 2.95 x 4.13 x 2.17 inches, which corresponds to 75 x 105 x 55 mm. This compact size is useful when you need a sealed housing without taking up excessive space.

Does this enclosure support internal mounting hardware?

Yes. The product description says it includes internal mounting plate attachment points with brass inserted injection molding, along with pre-molded mounting screw nuts. These features support secure mounting of internal accessories and equipment inside the enclosure.
