Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80×110×70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-081107-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-081107-K is a 80×110×70 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-CGS-081107-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×110×70 mm (3.15×4.33×2.76 in)

Material

Material
Polycarbonate (PC)
Cover
Grey

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

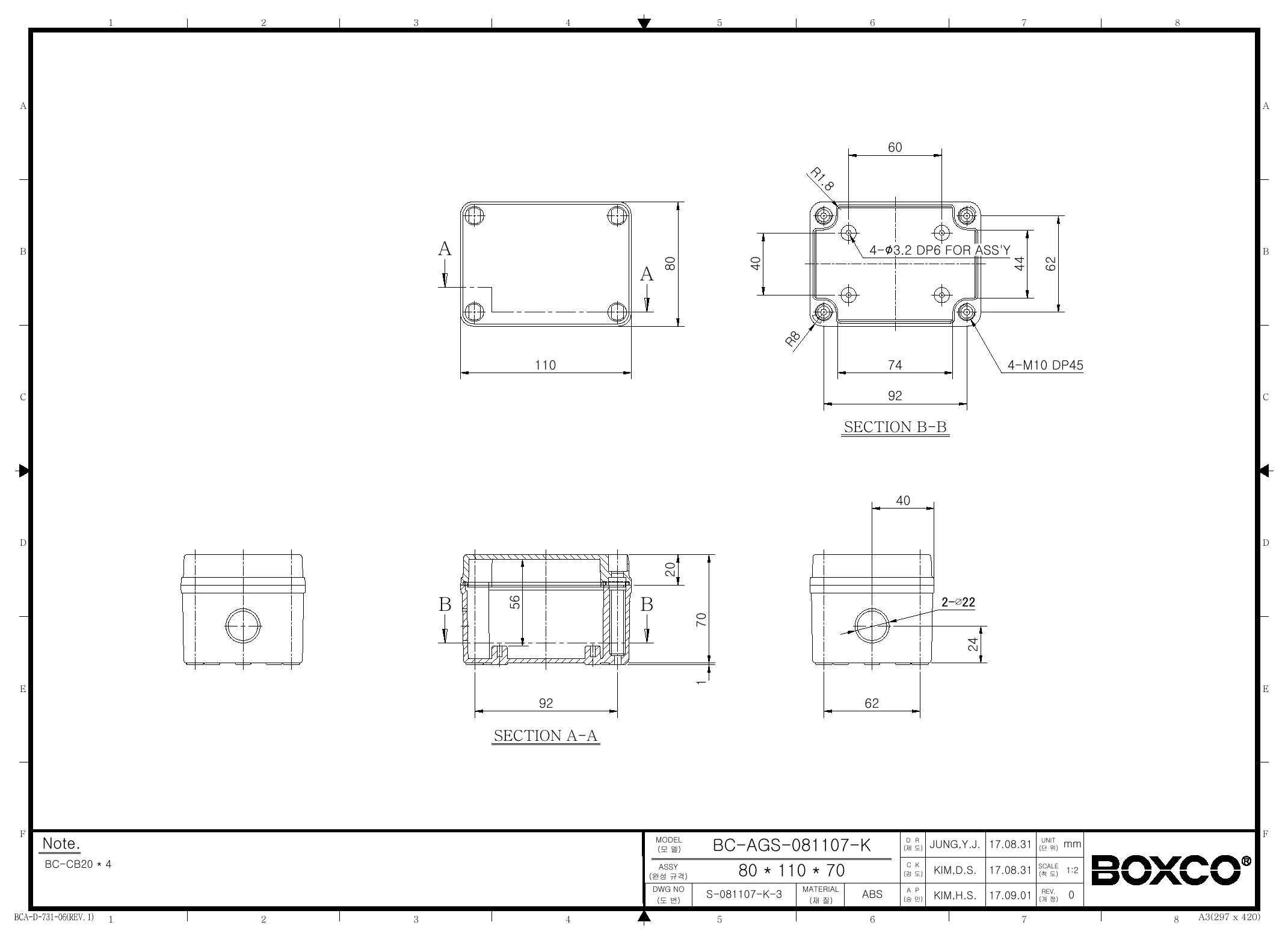

BC-CGS-081107-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CGS-081107-K enclosure?

This model is a plastic screw-type enclosure with overall dimensions of 3.15 x 4.33 x 2.76 inches (80 x 110 x 70 mm). It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure has a grey cover and a listed weight of 0.5000 kg.

What kinds of applications is this enclosure typically used for?

This enclosure is suited for protecting components in industrial and commercial applications where a compact, sealed housing is needed. Its IP67 rating and plastic construction make it relevant for control, protection, and general-purpose enclosure use where moisture, dust, and impact resistance matter.

Is this enclosure suitable for harsh temperature environments?

This model is specified for use from -40 degrees C up to 110 degrees C. That range supports use in both low-temperature and elevated-temperature environments where the enclosure itself must maintain performance. Buyers should still confirm the full assembly is appropriate for their specific operating conditions.

How does this model differ from a basic indoor plastic box?

This enclosure stands out with an IP67 sealing rating, an IK08 impact rating, and a screw-type design. It is intended for applications that need stronger environmental protection than a general-purpose indoor box. The knock out base is also a distinguishing feature of this series.

Does this Boxco S-Series enclosure include any design features for enclosure modification?

Yes. The product description states that this series has a knock out base. That feature can matter for buyers comparing enclosure styles within the same general size range.

What warranty period is listed for this enclosure?

The listed warranty period for this model is 1 year. For procurement or project documentation, this gives buyers a clear model-specific warranty reference. Any additional coverage terms would depend on the seller's policy.
