Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80×130×70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-081307-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-081307-K is a 80×130×70 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-CGS-081307-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×70 mm (3.15×5.12×2.76 in)

Material

Material
Polycarbonate (PC)
Cover
Grey

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

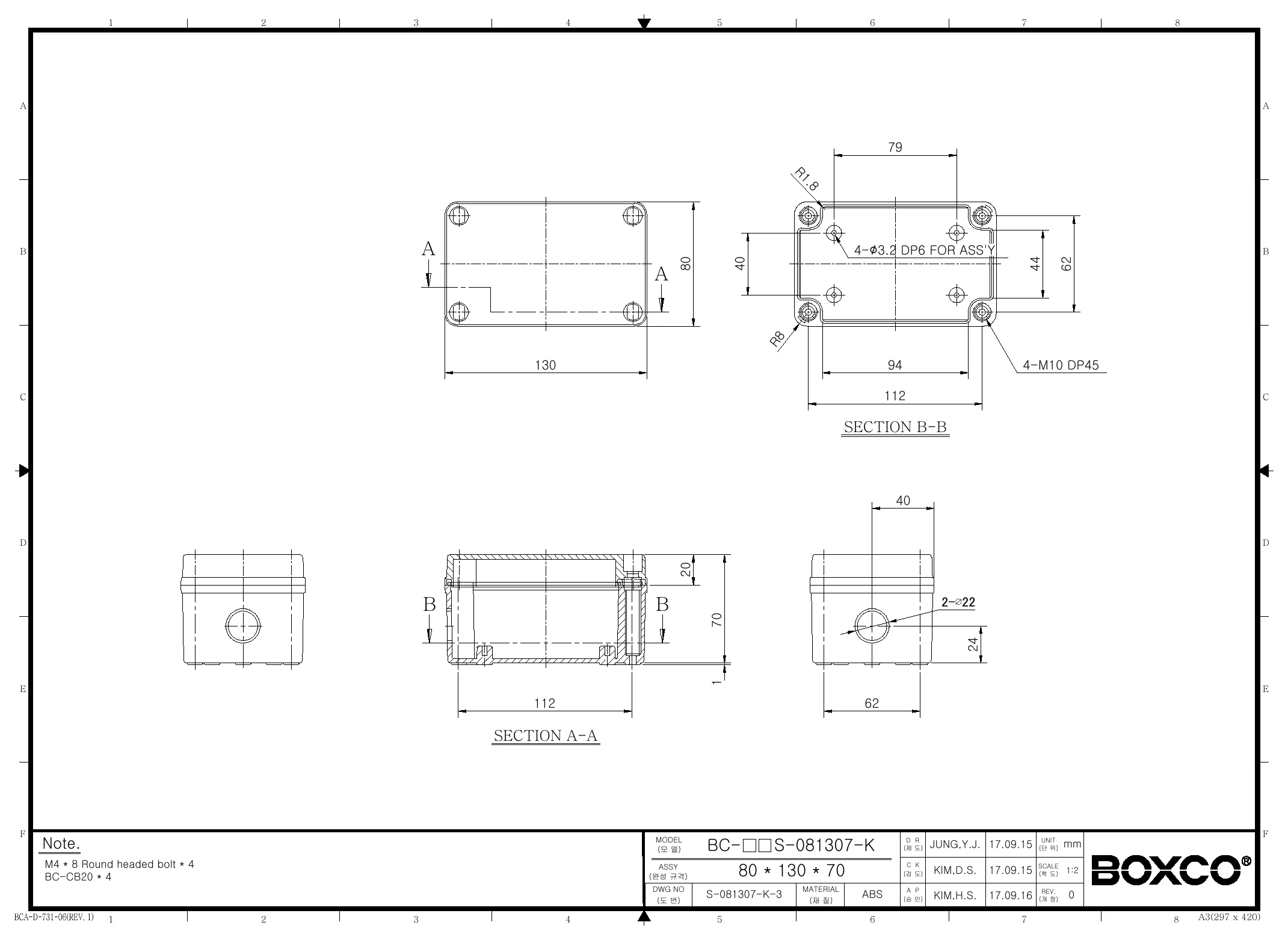

BC-CGS-081307-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of the Boxco S-Series BC-CGS-081307-K enclosure?

This enclosure measures 3.15 x 5.12 x 2.76 inches, which is 80 x 130 x 70 mm. Those dimensions make it a compact plastic enclosure for applications that need sealed protection in a relatively small footprint.

What material is this enclosure made from?

The BC-CGS-081307-K is made from PC (polycarbonate). It also features a grey cover and a screw-type enclosure design.

Is this enclosure suitable for wet or dusty environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water. That makes it a suitable choice for applications where environmental sealing is important.

How durable is this Boxco enclosure against impact?

This enclosure carries an IK08 impact rating. That rating indicates a solid level of mechanical impact resistance for industrial and commercial enclosure applications.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 C to 110 C. This wide range helps it perform in both very cold and high-heat environments, depending on the overall application requirements.

Does this enclosure include any special base design features?

Yes, this S-Series model has a knock out base. It is also described as a screw-type enclosure, which is part of its core design.
