Boxco S-Series 80×130×85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-081308-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-081308-K is a 80×130×85 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-CGS-081308-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×85 mm (3.15×5.12×3.35 in)

Material

Material
Polycarbonate (PC)
Cover
Grey

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

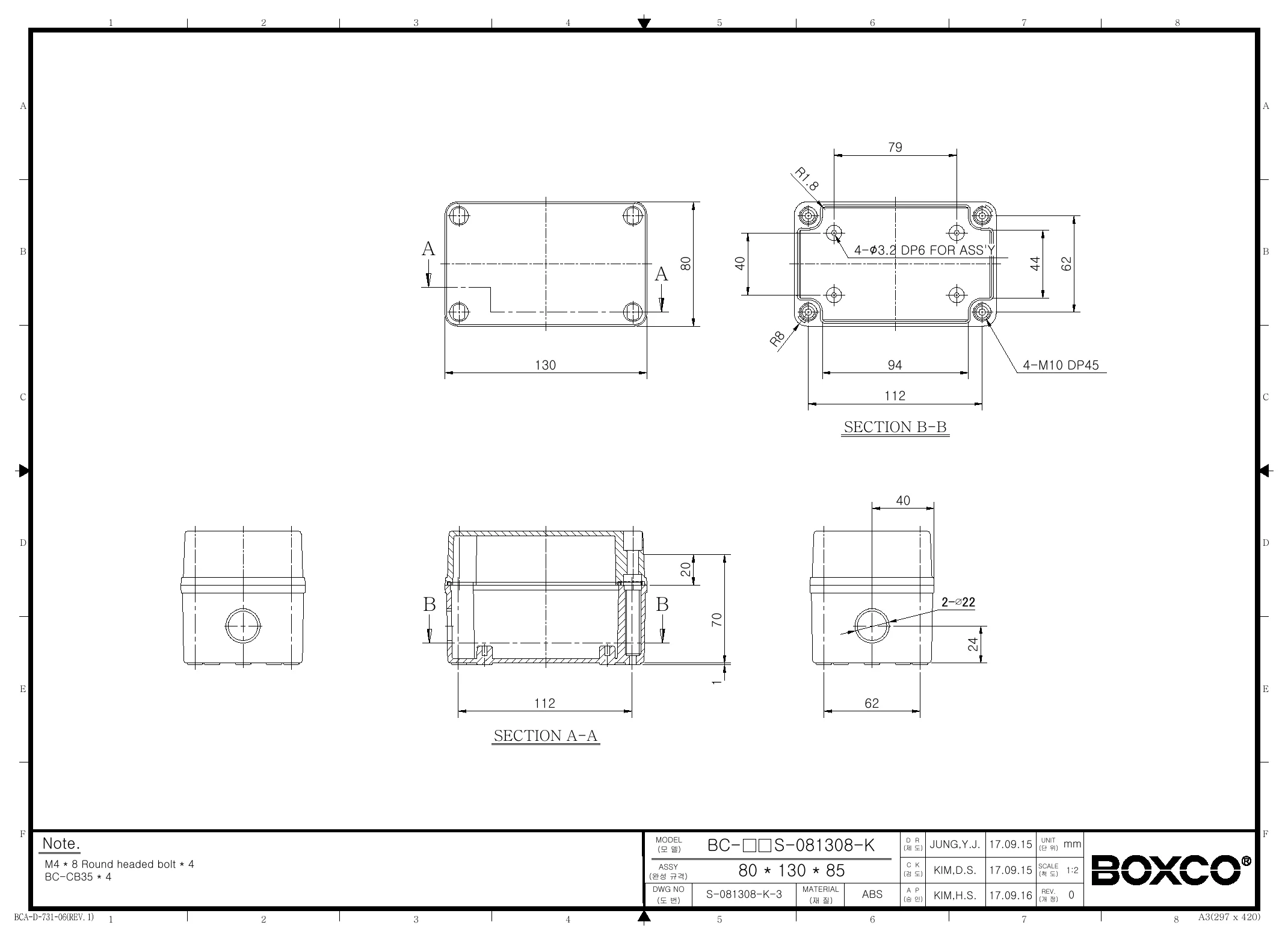

BC-CGS-081308-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure typically used for?

This model is a plastic enclosure designed for protecting components in industrial and commercial applications where a sealed housing is needed. Its screw-type construction and IP67 rating make it suitable for use where dust protection and resistance to temporary water exposure are important.

What are the dimensions of this enclosure?

This enclosure measures 3.15 x 5.12 x 3.35 inches, which is 80 x 130 x 85 mm. Those dimensions make it a compact option for applications that need a moderate amount of internal space without moving to a much larger box.

How durable is this enclosure for demanding environments?

This model is rated IP67 and IK08, which indicates protection against dust ingress and resistance to impact. It is built for demanding environments where durability and enclosure integrity matter.

What temperature range can this enclosure handle?

This Boxco enclosure is rated for temperatures from -40 °C to 110 °C. That range supports use in both very cold and high-heat environments, provided the overall application stays within the product's specified limits.

Does this model include any base features for easier enclosure selection?

Yes, this S-Series model has a knock out base. That feature can be useful for buyers comparing enclosure options within the same family and looking for a model with that specific base style.

What material and cover style does this enclosure use?

This model is made from PC and comes with a grey cover. It is also a screw-type enclosure, which is one of the defining characteristics called out for this specific version.
