Boxco

Boxco S-Series 80×180×70mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-081807-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-081807-K is a 80×180×70 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-CTS-081807-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×180×70 mm (3.15×7.09×2.76 in)

Material

Material
Polycarbonate (PC)
Cover
Transparent

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

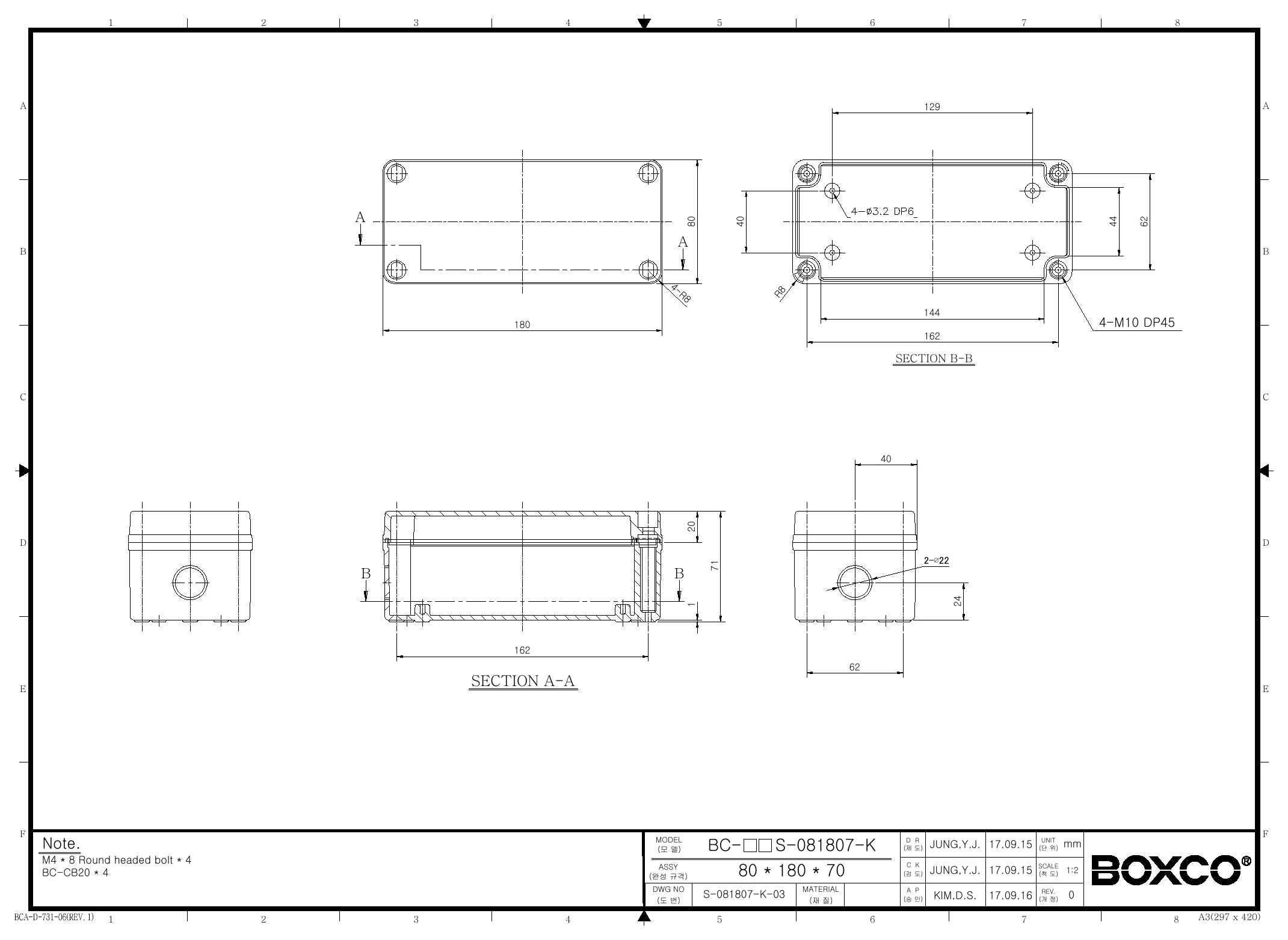

Technical drawings

BC-CTS-081807-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CTS-081807-K enclosure?

The BC-CTS-081807-K is a plastic enclosure with overall dimensions of 3.15 x 7.09 x 2.76 inches (80 x 180 x 70 mm). It has a transparent cover, a screw-type closure, IP67 ingress protection, and IK08 impact resistance. The enclosure weighs 0.5000 kg and is rated for use from -40 °C to 110 °C.

Where is this enclosure typically used?

This model is suited for applications that need a durable non-metallic enclosure with environmental protection and visibility through the cover. The transparent cover makes it useful when components or indicators need to be viewed without opening the box. Its screw-type design also fits industrial and commercial equipment enclosures where a secure cover is preferred.

Is the BC-CTS-081807-K suitable for harsh indoor or outdoor environments?

Yes, this enclosure is rated IP67, which means it is designed for strong protection against dust and temporary water exposure. It also carries an IK08 impact rating and a wide operating temperature range from -40 °C to 110 °C. Those characteristics make it a strong option for demanding environments where durability matters.

Does this enclosure have a transparent or opaque cover?

This specific model comes with a transparent cover. That helps when visual inspection of internal components is important without removing the lid. Buyers comparing versions should note that the transparent cover is a defining feature of this part number.

What closure style does this Boxco enclosure use?

The BC-CTS-081807-K uses a screw-type cover. According to the product details, this S-Series version also has a knock out base. That combination makes it distinct within enclosure options that may use different cover retention styles.
