Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80×250×70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-082507-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-082507-K is a 80×250×70 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-CGS-082507-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×250×70 mm (3.15×9.84×2.76 in)

Material

Material
Polycarbonate (PC)
Cover
Grey

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

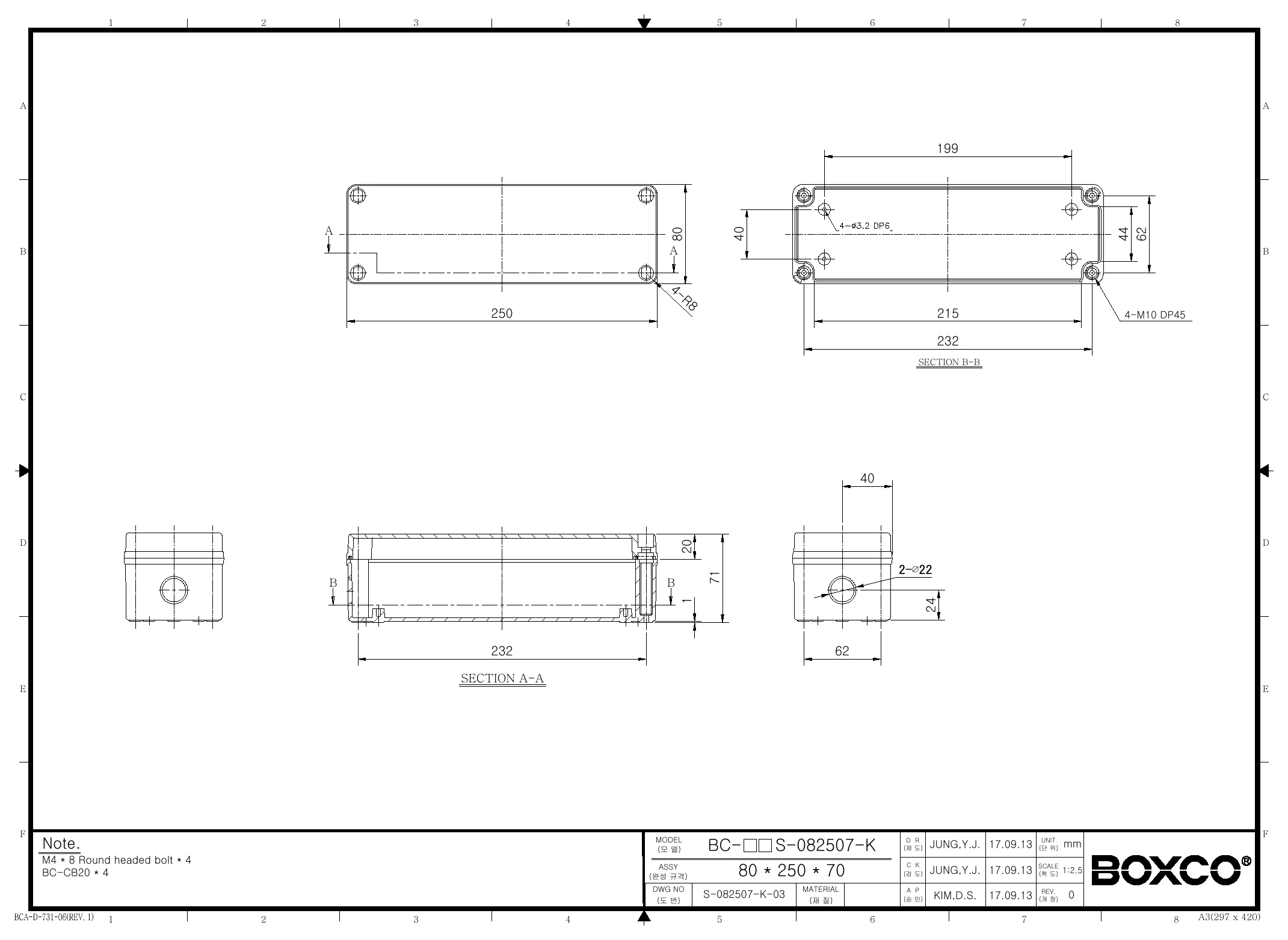

BC-CGS-082507-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CGS-082507-K enclosure?

This model is a plastic screw-type enclosure with overall dimensions of 3.15 x 9.84 x 2.76 inches (80 x 250 x 70 mm). It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure has a grey cover and weighs 0.5000 kg.

Is this enclosure suitable for outdoor or washdown environments?

This enclosure carries an IP67 rating, which indicates strong protection against dust ingress and temporary immersion in water. That makes it a practical choice for demanding industrial environments where moisture and contamination resistance are important. Final suitability should still be evaluated against the conditions of the specific application.

What temperature range can this enclosure handle?

The BC-CGS-082507-K is rated for use from -40.0000 °C up to 110.0000 °C. That wide operating range supports use in both cold and high-heat industrial settings. It is intended for applications where enclosure performance needs to remain stable across changing temperatures.

What does the knock out base mean on this Boxco S-Series enclosure?

This S-Series model includes a knock out base as part of its design. That feature can be relevant for buyers comparing enclosure formats or planning how the enclosure will fit into a broader system layout. For this specific model, the knock out base is one of the listed series features.

What kinds of applications is this enclosure typically used for?

This model is suited to protecting components in industrial and commercial applications where a sealed plastic enclosure is needed. Its IP67 and IK08 ratings make it relevant for environments that demand resistance to water, dust, and mechanical impact. The long, narrow form factor may also help in applications where space favors an extended enclosure shape.
