Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80×250×70mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-082507-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-082507-K is a 80×250×70 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-CTS-082507-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×250×70 mm (3.15×9.84×2.76 in)

Material

Material
Polycarbonate (PC)
Cover
Transparent

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

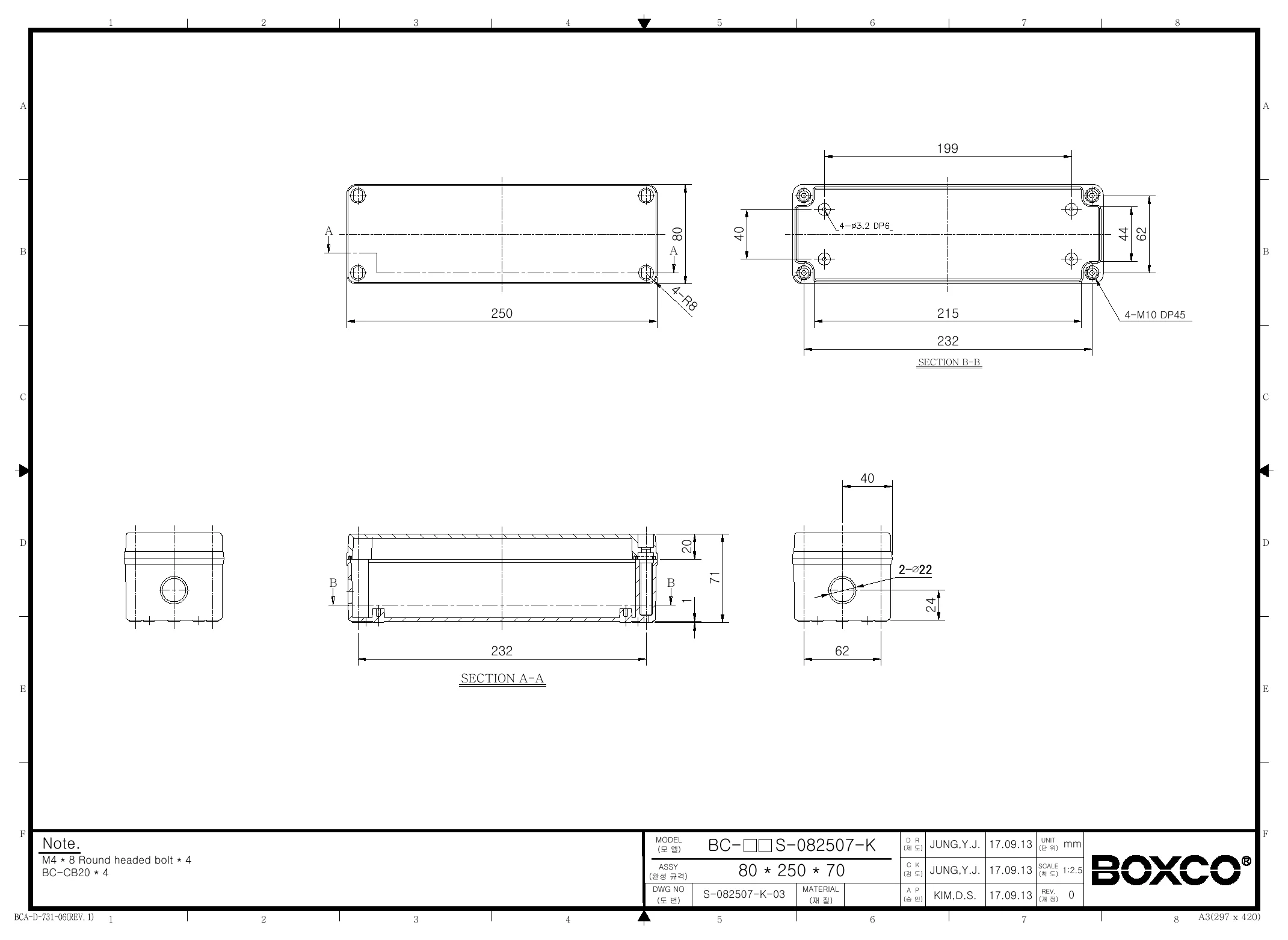

BC-CTS-082507-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of this enclosure?

This Boxco S-Series enclosure measures 3.15 x 9.84 x 2.76 inches, which corresponds to 80 x 250 x 70 mm. That size makes it suitable for applications that need a longer plastic enclosure with a relatively slim profile.

What material is this enclosure made from?

This model is made from polycarbonate (PC) and includes a transparent cover. The transparent cover is useful when components or indicators inside the enclosure need to remain visible without opening it.

Is this enclosure suitable for outdoor or washdown environments?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water. That makes it a good option for demanding industrial or outdoor environments where moisture and debris are concerns.

How durable is this enclosure against impact?

This model carries an IK08 impact rating. That rating indicates the enclosure is designed to handle a solid level of mechanical impact resistance in industrial and commercial settings.

What operating temperature range does this enclosure support?

This enclosure is specified for temperatures from -40 degrees C to 110 degrees C. That wide range supports use in both cold and high-heat environments where standard plastic enclosures may be less suitable.

What cover and closure style does this model use?

This is a screw-type enclosure with a transparent cover. The product description also notes that this S-Series model has a knock out base.
