Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80×250×85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-082508-K
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-082508-K is a 80×250×85 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco K Series.

Features

  • BOXCO waterproof IP66/IP67 plastic enclosures have knockouts on both sides so it is easy to punch holes. 2. Our knock-outs enclosures are easy to make onsite installation of cable or wiring. 3. This series are made for electrical control box, junction box and many other applications.

Specifications

BC-CGS-082508-KSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×250×85 mm (3.15×9.84×3.35 in)

Material

Material
Polycarbonate (PC)
Cover
Grey

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

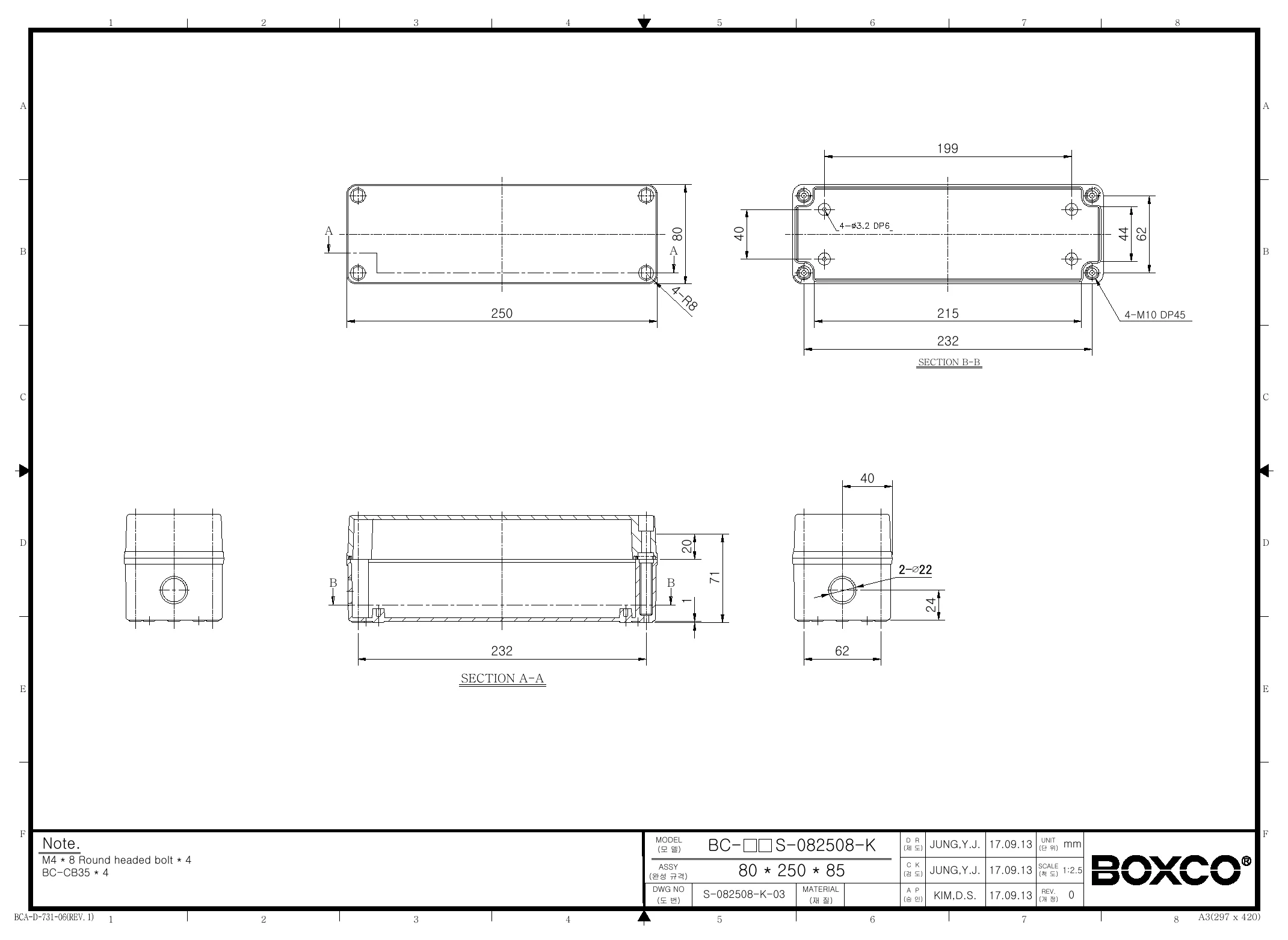

Technical drawings

BC-CGS-082508-K Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CGS-082508-K enclosure?

This model is a plastic screw-type enclosure with overall dimensions of 3.15 x 9.84 x 3.35 inches, or 80 x 250 x 85 mm. It is rated IP67 for dust-tight and water-resistant protection, IK08 for impact resistance, uses PC material, has a grey cover, and weighs 0.5000 kg.

Is the BC-CGS-082508-K suitable for demanding environments?

This enclosure is built for demanding conditions with an IP67 ingress protection rating and an IK08 impact rating. It is also specified for a wide operating temperature range from -40 degrees C to 110 degrees C, which supports use in harsh industrial or outdoor-adjacent environments where the enclosure itself needs strong protection.

What kind of applications is this enclosure typically used for?

This model is intended for protecting components that need a sealed plastic enclosure with a larger rectangular footprint. Its 80 x 250 x 85 mm size and screw-type construction make it relevant for industrial, commercial, or OEM applications where equipment needs protection from dust, water ingress, and mechanical impact.

What does the screw-type design mean on this Boxco enclosure?

The product is identified as a screw-type enclosure, which means the cover is secured with screws rather than a hinge or latch-style closure. For buyers comparing enclosure styles, this model is aimed at applications where a more firmly fastened cover is preferred.

Does this enclosure include any base entry feature?

Yes. The product description states that this S-Series model has a knock out base. That can be an important selection point for buyers who need an enclosure version with a built-in base knockout feature rather than a plain base.

What warranty is provided for the BC-CGS-082508-K?

This enclosure includes a 1-year warranty based on the provided product data. For procurement and project planning, that gives a clear stated coverage period for this specific model.
