Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80x110x45mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-081104
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-081104 is a 80×110×45 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-081104Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×110×45 mm (3.15×4.33×1.77 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0811 P (Plastic, P type), 0811 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

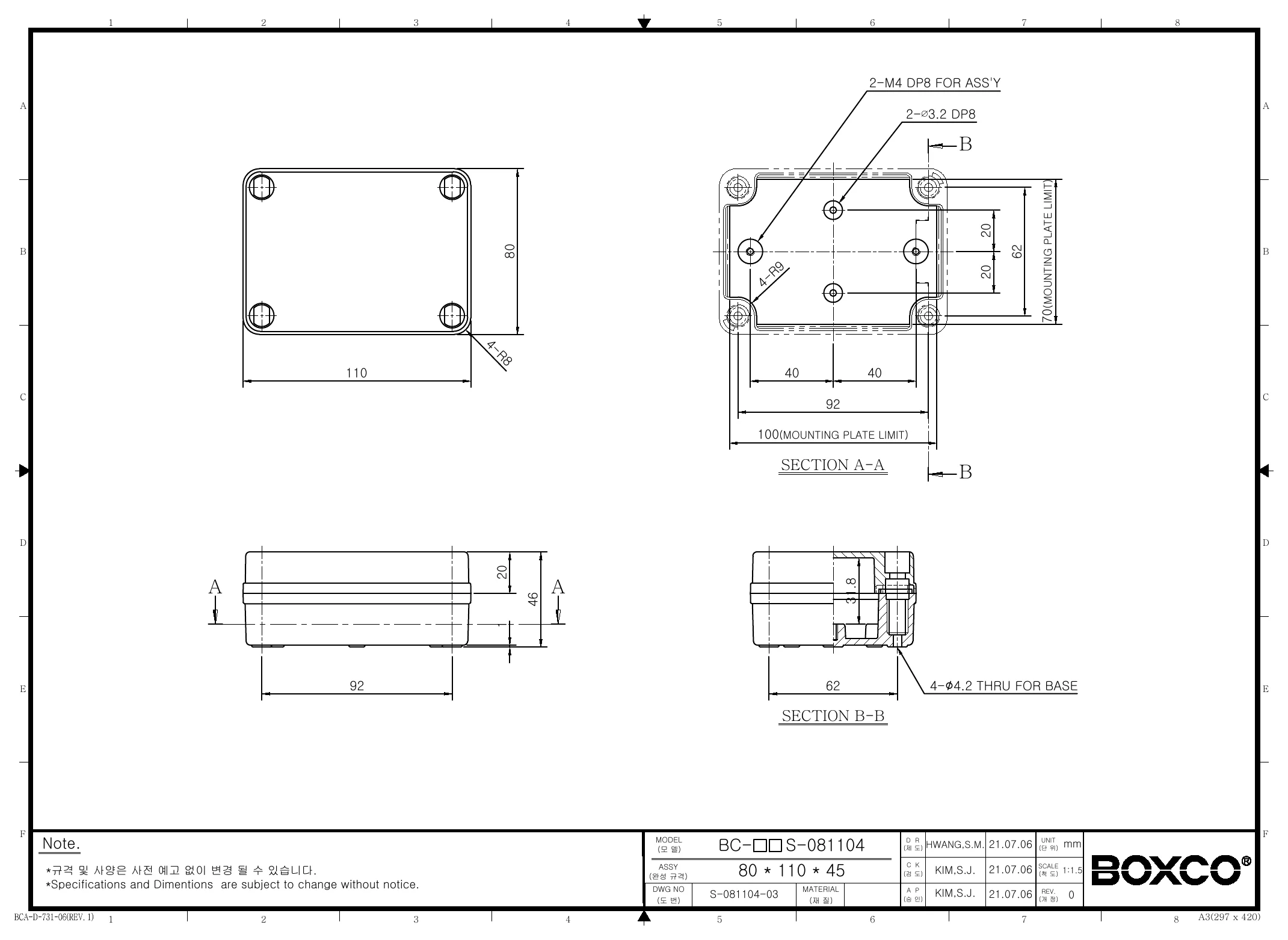

BC-CGS-081104 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 80 x 110 x 45 mm enclosure suited for?

This model is suited for protecting small electronic assemblies, control components, and sensitive instruments that need a sealed non-metallic housing. Its anti-static material, IP67 sealing, and IK08 impact rating make it a practical choice for industrial, utility, and outdoor equipment enclosures.

Is this enclosure suitable for outdoor environments?

Yes. Boxco adds an ultraviolet stabilizer to this S-Series enclosure for outdoor use, which helps reduce visible color change over time. The IP67 rating also indicates strong protection against dust ingress and temporary water exposure in demanding environments.

What are the key specifications of this Boxco enclosure?

This enclosure measures 3.15 x 4.33 x 1.77 inches (80 x 110 x 45 mm) and weighs 0.158 kg. It is a screw-type plastic enclosure with a grey cover, IP67 ingress protection, IK08 impact resistance, a PC material construction, and an operating temperature range of -40 to 110 degrees C.

Can this enclosure help protect sensitive electronics from static and impact?

Yes. The housing uses anti-static material to help protect sensitive electronic instruments from static electricity. Boxco also describes the enclosure as high impact resistant, and the IK08 rating supports its suitability where mechanical durability matters.

What design features distinguish this screw-type S-Series enclosure?

This model includes internal mounting plate attachment points with brass inserted injection molding, pre-molded mounting screw nuts, a precision-injected gasket, and molded cover screw threads for strength. Compared with a basic utility box, these features make it better suited for applications that need stronger internal mounting support and dependable sealing.
