Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80x110x45mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-081104
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-081104 is a 80×110×45 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-081104Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×110×45 mm (3.15×4.33×1.77 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0811 P (Plastic, P type), 0811 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

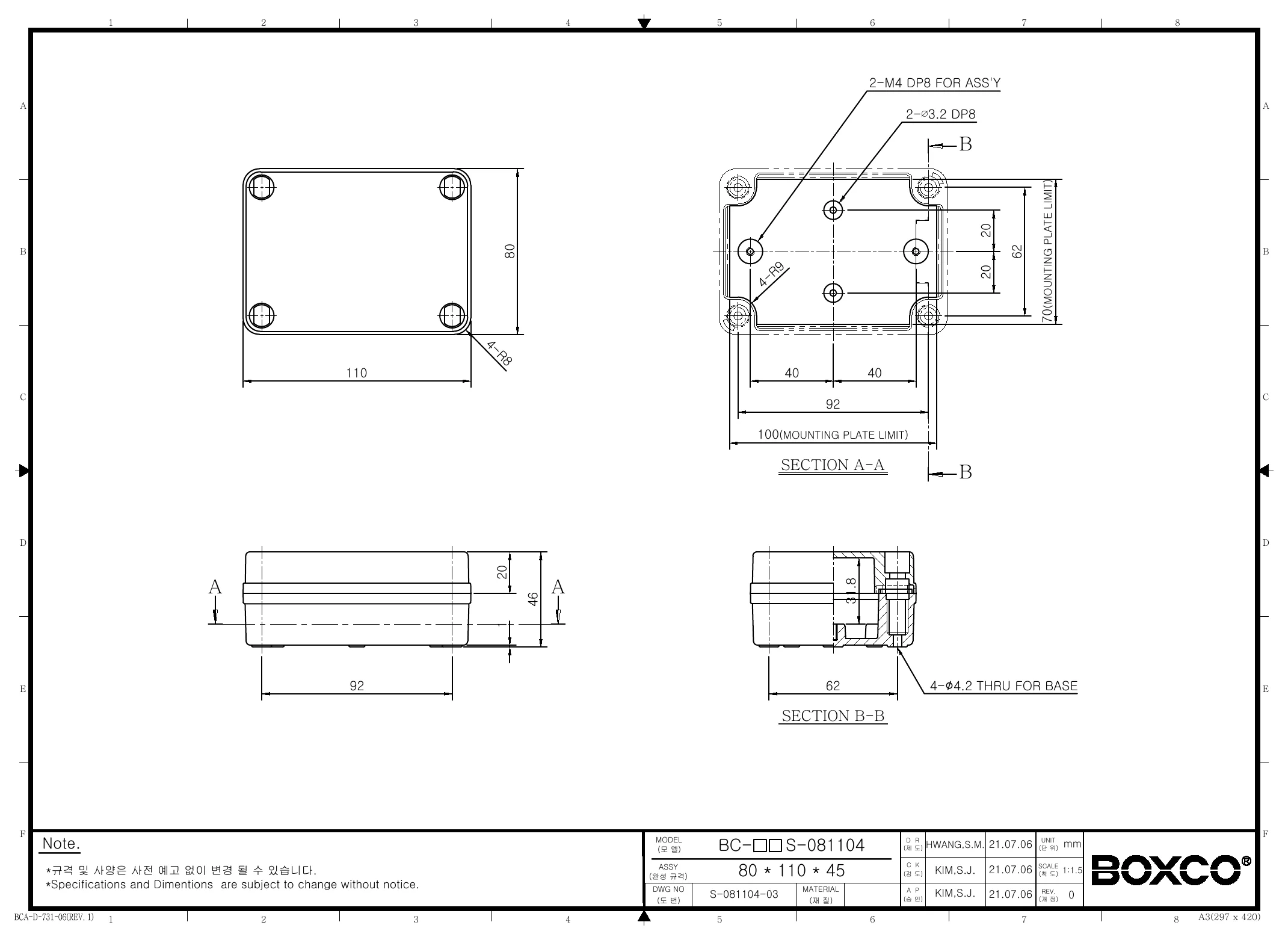

BC-CTS-081104 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series enclosure suitable for?

This model is suited for protecting compact electronic components in industrial and outdoor environments where dust, water resistance, and impact protection matter. Its 80 x 110 x 45 mm size works well when you need a small plastic enclosure with a transparent cover for visual inspection.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long-term exposure. Its IP67 rating also indicates strong protection against dust ingress and water exposure.

What level of protection does this enclosure provide?

This enclosure is rated IP67 and IK08. That means it is designed for strong dust and water resistance and also offers impact resistance for demanding operating environments.

What is the benefit of the transparent cover on this model?

The transparent cover allows contents or indicators inside the enclosure to be viewed without opening it. For applications that require quick visual checks, this can be more convenient than an opaque cover while keeping the same screw-type enclosure format.

What temperature range can this enclosure handle?

This model is specified for temperatures from -40°C to 110°C. That wide range makes it a practical choice for both cold and high-heat operating conditions within its rated limits.

Does this enclosure support internal accessories or mounting hardware?

Yes. The description notes internal mounting plate attachment points and pre-molded mounting screw nuts for securing compatible internal hardware such as DIN rail or other equipment. These built-in features help support heavier internal components more securely.
