Boxco

Boxco S-Series 80x110x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-081107
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGS-081107 is a 80×110×70 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-081107Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×110×70 mm (3.15×4.33×2.76 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0811 P (Plastic, P type), 0811 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

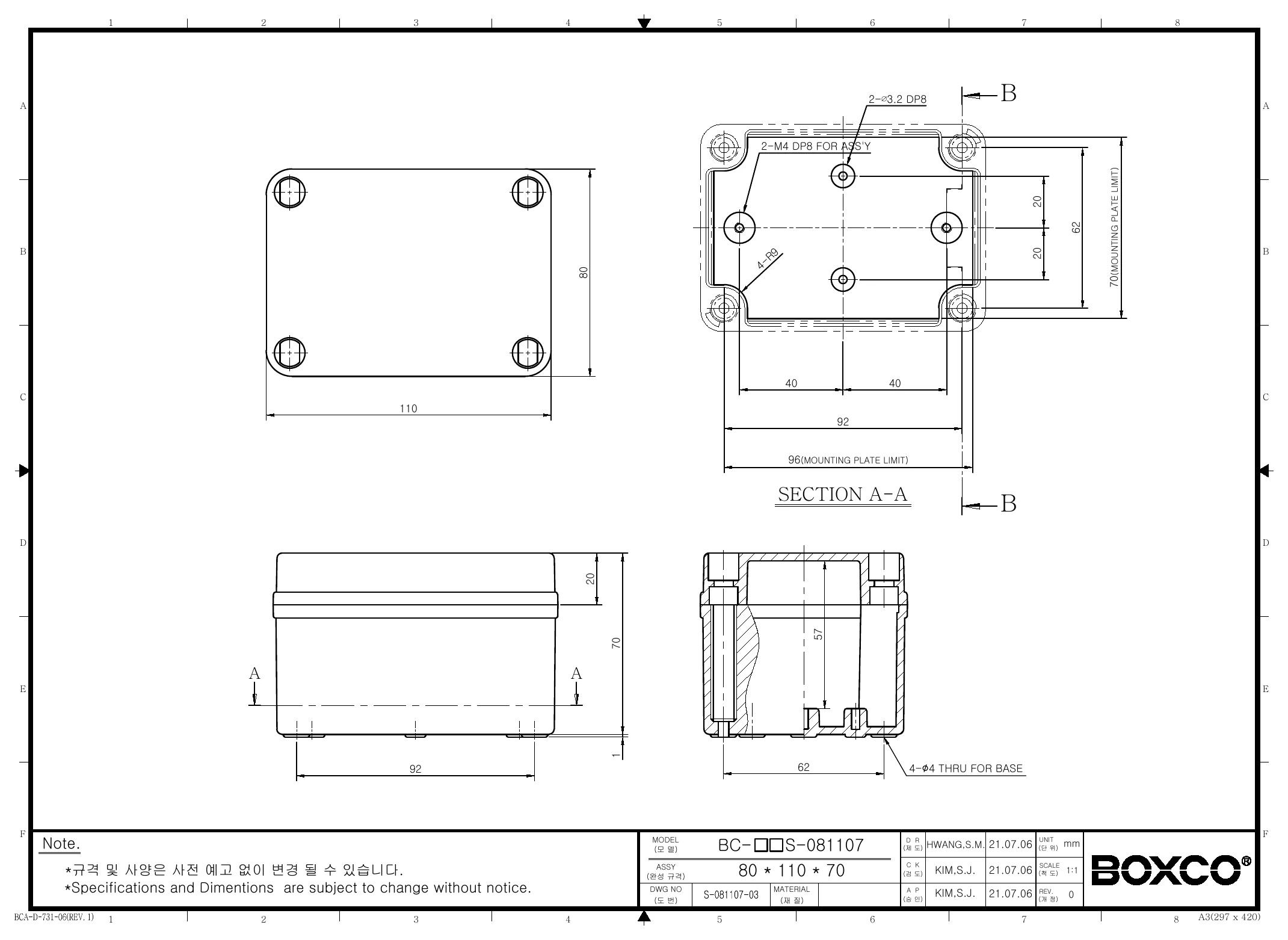

BC-AGS-081107 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-AGS-081107 enclosure?

This model measures 3.15 x 4.33 x 2.76 inches (80 x 110 x 70 mm) and is made from ABS with a grey screw-type cover. It is rated IP67 for dust and water resistance and IK08 for impact resistance. The listed product weight is 0.172 kg.

Is this enclosure suitable for outdoor use?

Yes. The product description states that ultraviolet stabilizer is added for outdoor usage, which helps reduce visible color change over time. Its IP67 rating also supports use in demanding environments where dust and water exposure are concerns.

Can this enclosure help protect sensitive electronic equipment?

Yes. This Boxco S-Series enclosure uses anti-static material intended to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material to better withstand external impact.

What temperature range can this plastic enclosure handle?

The specified operating temperature range is -40 °C to 70 °C. That makes this model suitable for applications exposed to both low and moderately high temperatures within that range. Buyers should verify their environment stays within those limits.

What mounting features are included in this enclosure?

The enclosure includes internal mounting plate attachment points with brass inserted injection molding for securing a mounting plate. It also has pre-molded mounting screw nuts for fixing DIN rail or other equipment inside the enclosure. These built-in features support more organized internal component mounting.

How does this model differ from a basic general-purpose plastic box?

This model stands out with its IP67 and IK08 ratings, UV-stabilized outdoor-ready formulation, and anti-static material. It also includes molded internal mounting features and a precision-injected gasket for improved waterproof and dust-proof performance. Those details make it more specialized than a basic non-rated plastic enclosure.
