Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80x110x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-081107
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-081107 is a 80×110×70 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-081107Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×110×70 mm (3.15×4.33×2.76 in)
Mounting plate dimension M1 × M2
65 × 95 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0811 P (Plastic, P type), 0811 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

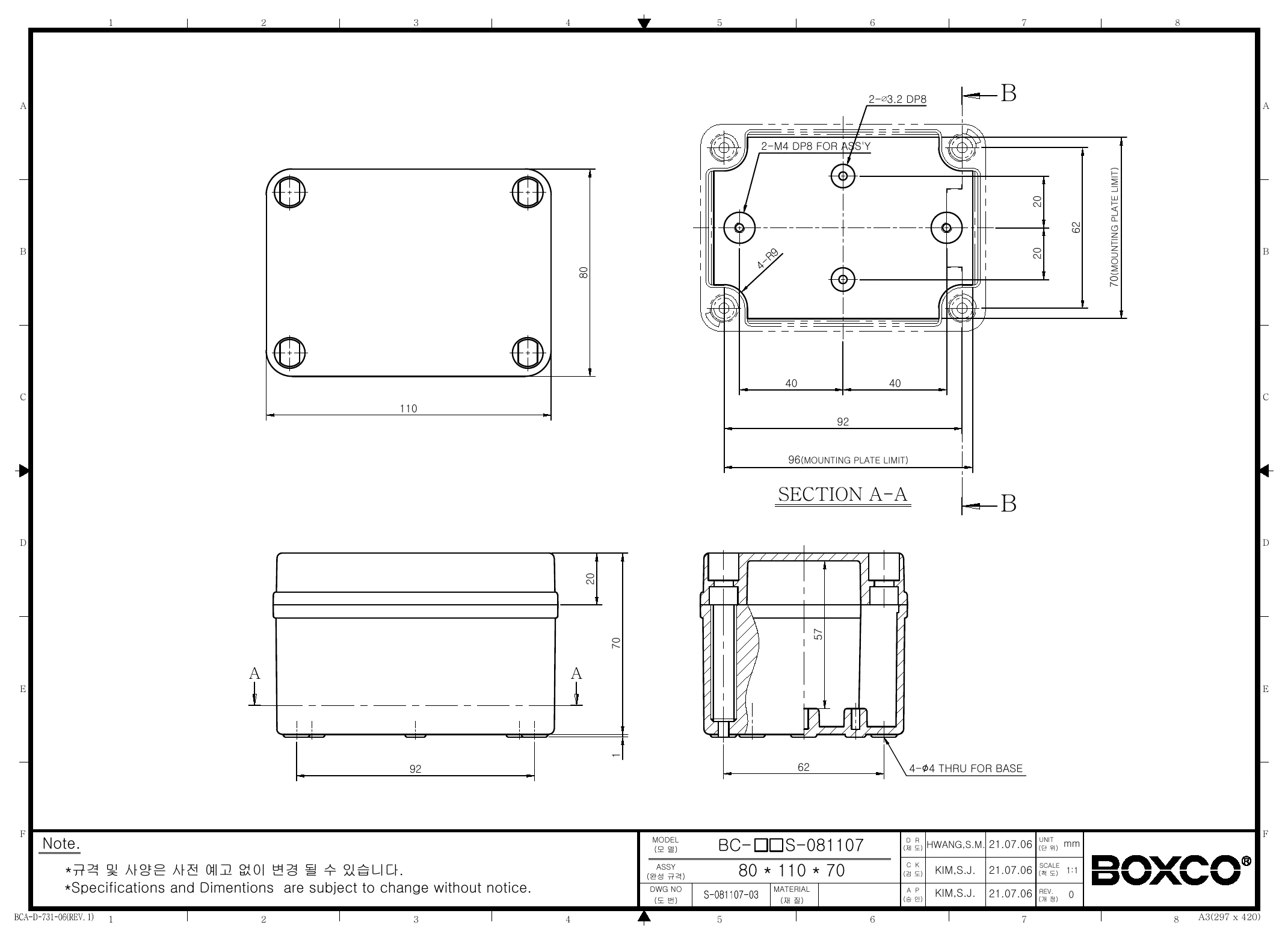

Technical drawings

BC-CGS-081107 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 80x110x70mm plastic enclosure suited for?

This enclosure is suited for protecting compact electronic components and sensitive instruments in industrial and commercial environments. Its anti-static material, impact-resistant construction, and sealed screw-type design make it a practical choice for control, monitoring, and protection applications where durability matters.

Is this enclosure appropriate for outdoor or washdown environments?

Yes, this model is built for demanding environments with an IP67 rating for dust-tight and water-resistant protection. It also includes an ultraviolet stabilizer to help maintain performance and reduce visible color change during long-term outdoor use.

How durable is this enclosure against impact and harsh conditions?

This enclosure is rated IK08 for impact resistance and is made from high impact resistant polycarbonate. It is designed to withstand external impact and reduce the risk of breakage during machining or press processing.

What temperature range can this Boxco enclosure handle?

This model is specified for use from -40 degrees C up to 110 degrees C. That range makes it suitable for both cold and hot operating environments where standard plastic housings may be limited.

Does this enclosure support internal mounting hardware or accessory components?

Yes, the enclosure includes internal mounting plate attachment points with brass inserted injection molding for secure fastening. It also has pre-molded mounting screw nuts that support adding compatible internal hardware such as DIN rail or other mounted equipment.

What distinguishes this screw-type Boxco S-Series enclosure from a basic plastic box?

This model combines IP67 sealing, IK08 impact resistance, UV-stabilized material, and anti-static construction in one enclosure. It also includes molded attachment features and a precision-injected gasket, giving it stronger environmental protection and equipment support than a basic general-purpose housing.
