Boxco S-Series 80x130x85mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-081308
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-081308 is a 80×130×85 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-081308Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×85 mm (3.15×5.12×3.35 in)
Mounting plate dimension M1 × M2
65 × 115 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0813 P (Plastic, P type), 0813 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

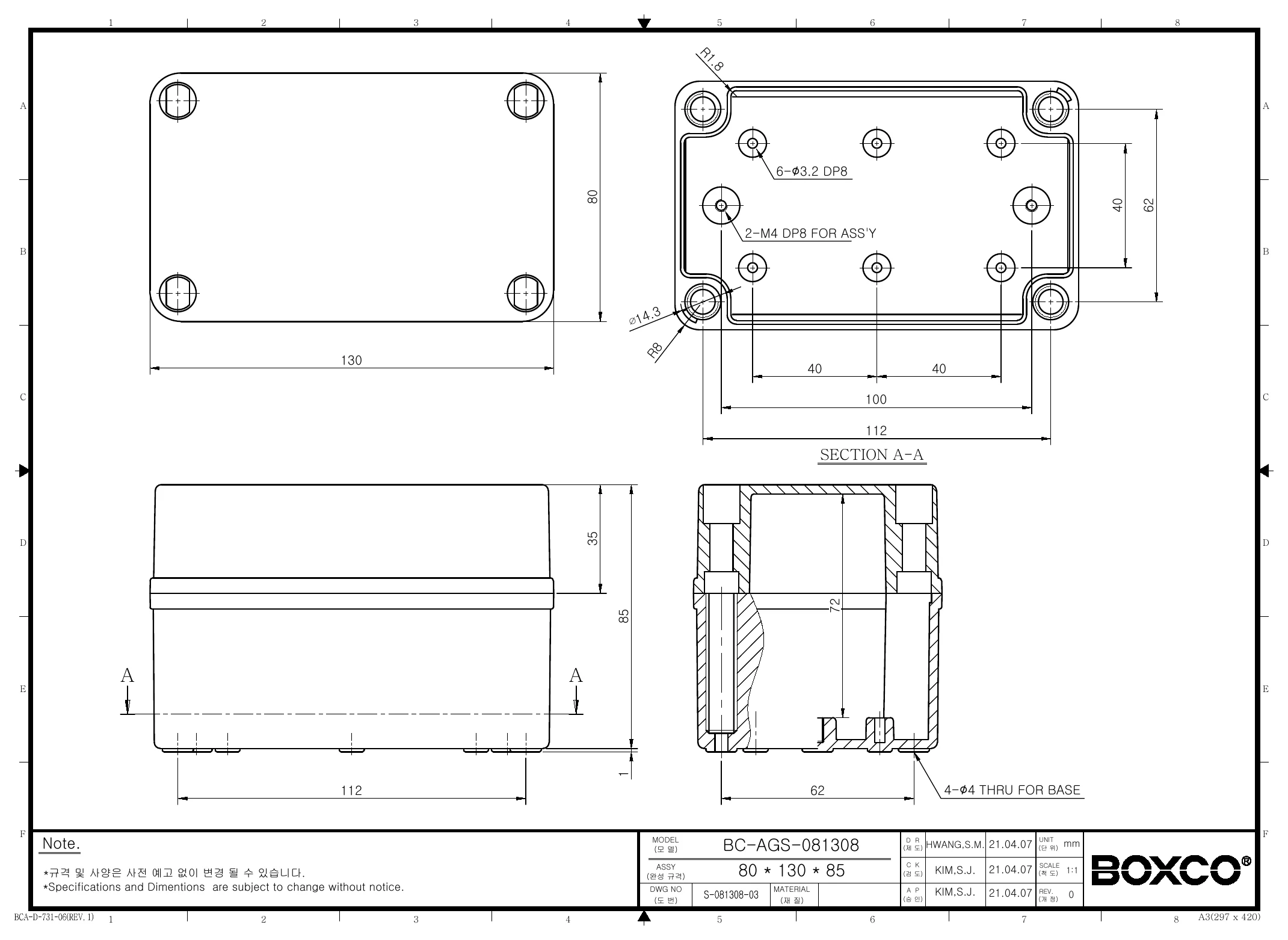

Technical drawings

BC-CTS-081308 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What type of enclosure is the Boxco S-Series BC-CTS-081308?

The BC-CTS-081308 is a plastic enclosure from the Boxco S-Series with a transparent polycarbonate cover and screw-type closure. Its listed dimensions are 3.15 x 5.12 x 3.35 inches (80 x 130 x 85 mm), making it a compact enclosure for protecting internal components.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust ingress and temporary immersion in water under defined conditions. The product description also notes an ultraviolet stabilizer for outdoor usage, helping reduce visible color change over time.

How durable is the BC-CTS-081308 against impact?

This enclosure carries an IK08 impact rating and is described as being made from high impact resistant material. That makes it a stronger option for applications where the enclosure may face incidental mechanical contact or handling stress.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 110 °C. That wide range makes it suitable for demanding industrial and outdoor conditions where both low and elevated temperatures may be present.

What kinds of equipment is this enclosure commonly used to protect?

This type of enclosure is commonly used to protect sensitive electronic instruments and other internal components that need shielding from dust, moisture, and physical impact. The product description also highlights anti-static material, which is useful where static protection matters.

Does this enclosure support internal mounting hardware or accessory installation?

Yes, the product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features support secure placement of internal hardware such as mounting plates or DIN rail-related equipment inside the enclosure.

What are the key construction features of this Boxco S-Series enclosure?

The BC-CTS-081308 includes a transparent cover, screw-type cover fastening, a gasket designed for waterproof and dust-proof performance, and molded cover bolt attachment points for strength. It also weighs 0.4500 kg and is backed by a 1-year warranty.
