Boxco S-Series 80x160x55mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-081605
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-081605 is a 82×162×55 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-081605Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
82×162×55 mm (3.23×6.38×2.17 in)
Mounting plate dimension M1 × M2
68 × 148 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0816 P (Plastic, P type), 0816 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

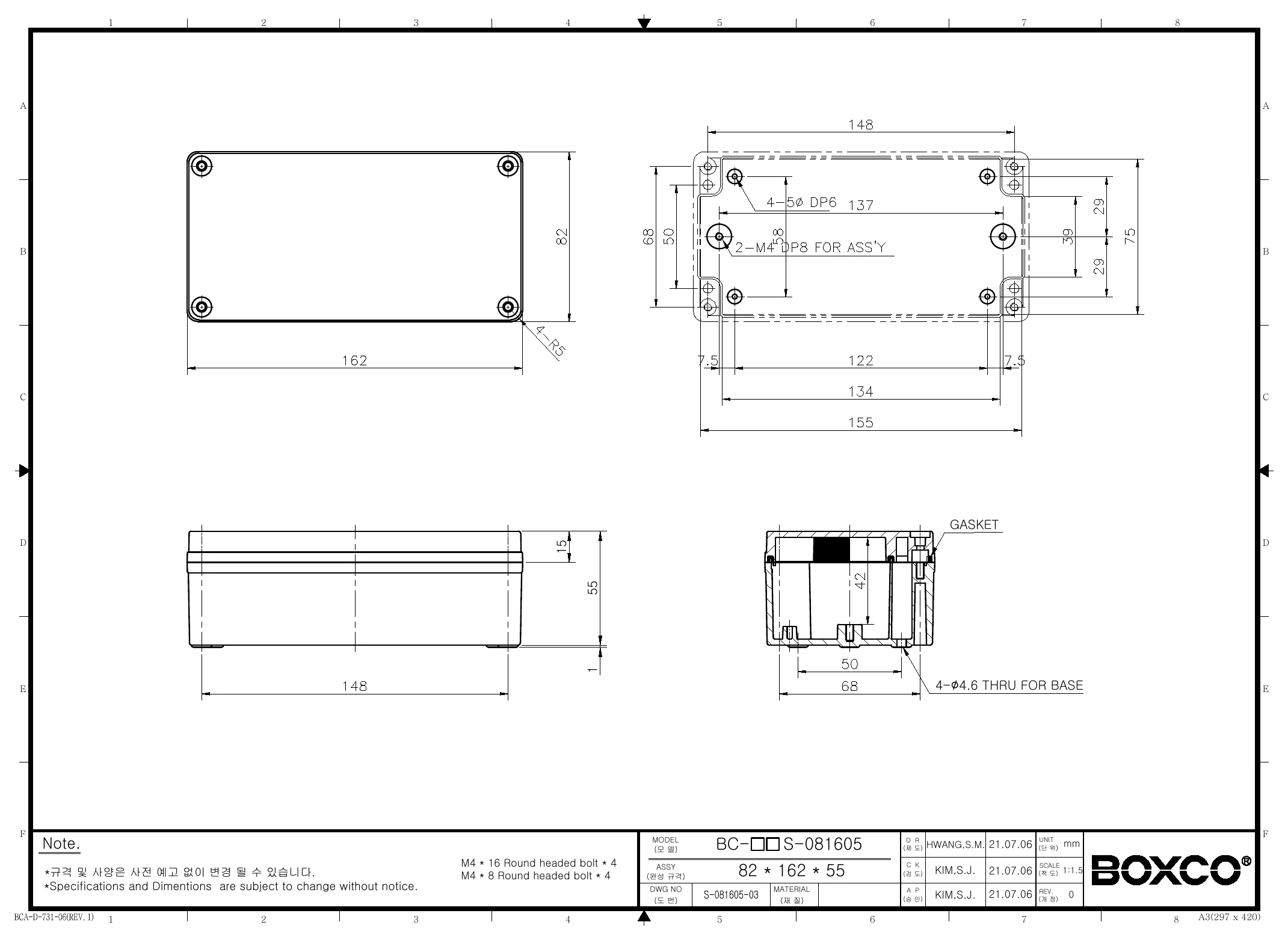

BC-CGS-081605 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco S-Series enclosure designed for?

This model is a plastic enclosure intended to protect electronic components in industrial or commercial applications. It is part of the Boxco S-Series and is built for buyers who need a durable screw-type housing with strong environmental protection.

What are the dimensions of this enclosure?

This enclosure measures 3.15 x 6.3 x 2.17 inches, which corresponds to 80 x 160 x 55 mm. Those dimensions make it suitable when you need a compact rectangular housing with more internal length than width.

How well does this enclosure resist water, dust, and impact?

This model is rated IP67 and IK08. That means it is built for strong dust and water resistance as well as solid impact resistance for demanding environments.

Is this enclosure suitable for outdoor use?

Yes, Boxco states that an ultraviolet stabilizer is added for outdoor usage. The enclosure is also described as maintaining its color better over long-term exposure, which supports use in outdoor environments.

What material is this enclosure made from?

This model is made from PC and has a grey cover. The product description also notes anti-static material and high impact resistance, which helps protect sensitive instruments and reduces breakage during processing.

What temperature range can this enclosure handle?

The stated operating temperature range is -40 degrees C to 110 degrees C. This makes it a practical choice for applications exposed to both low and high ambient temperatures.

What internal mounting features does this enclosure include?

The enclosure includes mounting plate attachment points and pre-molded mounting screw nuts. These features help support internal equipment mounting and make the enclosure more suitable for organized component layouts.
