Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80x160x55mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-081605
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-081605 is a 82×162×55 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-081605Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
82×162×55 mm (3.23×6.38×2.17 in)
Mounting plate dimension M1 × M2
68 × 148 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0816 P (Plastic, P type), 0816 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

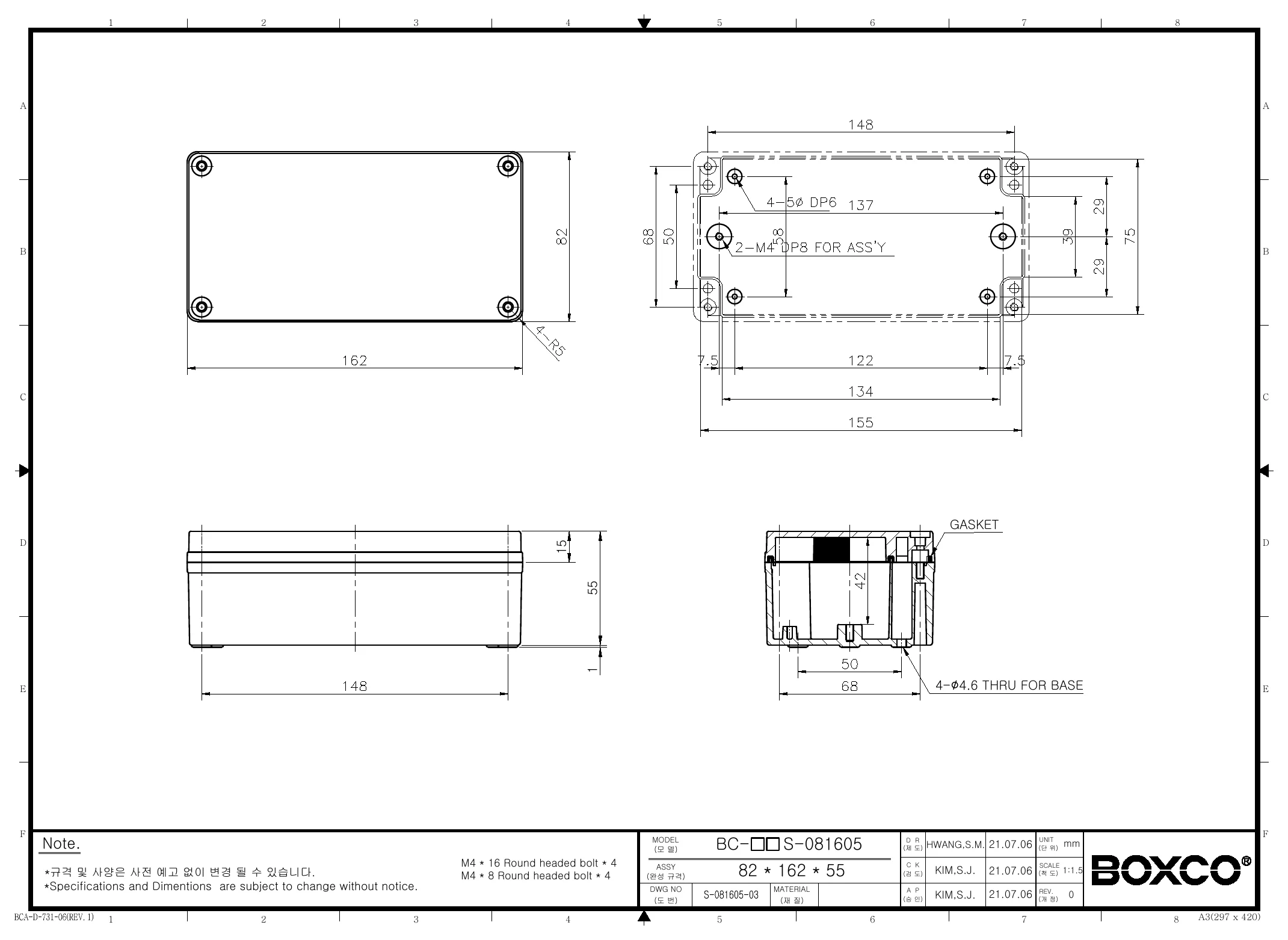

BC-CTS-081605 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco S-Series BC-CTS-081605 enclosure?

This model measures 3.15 x 6.3 x 2.17 inches (80 x 160 x 55 mm) and is made from polycarbonate with a transparent screw-type cover. It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure weighs 0.45 kg and is specified for use from -40°C to 110°C.

Is this enclosure suitable for outdoor or harsh environments?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce color change over long-term exposure. Its IP67 rating and IK08 impact rating also make it well suited for demanding industrial and outdoor environments.

What kind of applications is this enclosure commonly used for?

This enclosure is intended for protecting electronic instruments and components that need a durable non-metallic housing. Its anti-static material and high-impact construction make it a practical choice for industrial control, instrumentation, and outdoor equipment protection. The transparent cover is also useful where internal visual inspection is needed without opening the box.

Does this model support internal mounting hardware or accessory plates?

Yes. The enclosure includes internal mounting plate attachment points with brass inserted injection molding for securing heavier internal equipment. It also has pre-molded mounting screw nuts that can be used for DIN rail or other internal equipment mounting.

How does the transparent cover benefit this enclosure compared with an opaque cover?

The transparent cover allows visual inspection of indicators, labels, or internal components without opening the enclosure. That can be useful when quick status checks are needed while still maintaining the enclosure's protective design. For buyers comparing cover types, this model is a better fit when visibility matters.

Is this enclosure designed to protect sensitive electronics?

Yes. The description specifically notes that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material to reduce breakage risk during mechanical processing and in service.
