Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80x160x85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-081608
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-081608 is a 82×162×85 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-081608Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
82×162×85 mm (3.23×6.38×3.35 in)
Mounting plate dimension M1 × M2
68 × 148 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0816 P (Plastic, P type), 0816 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

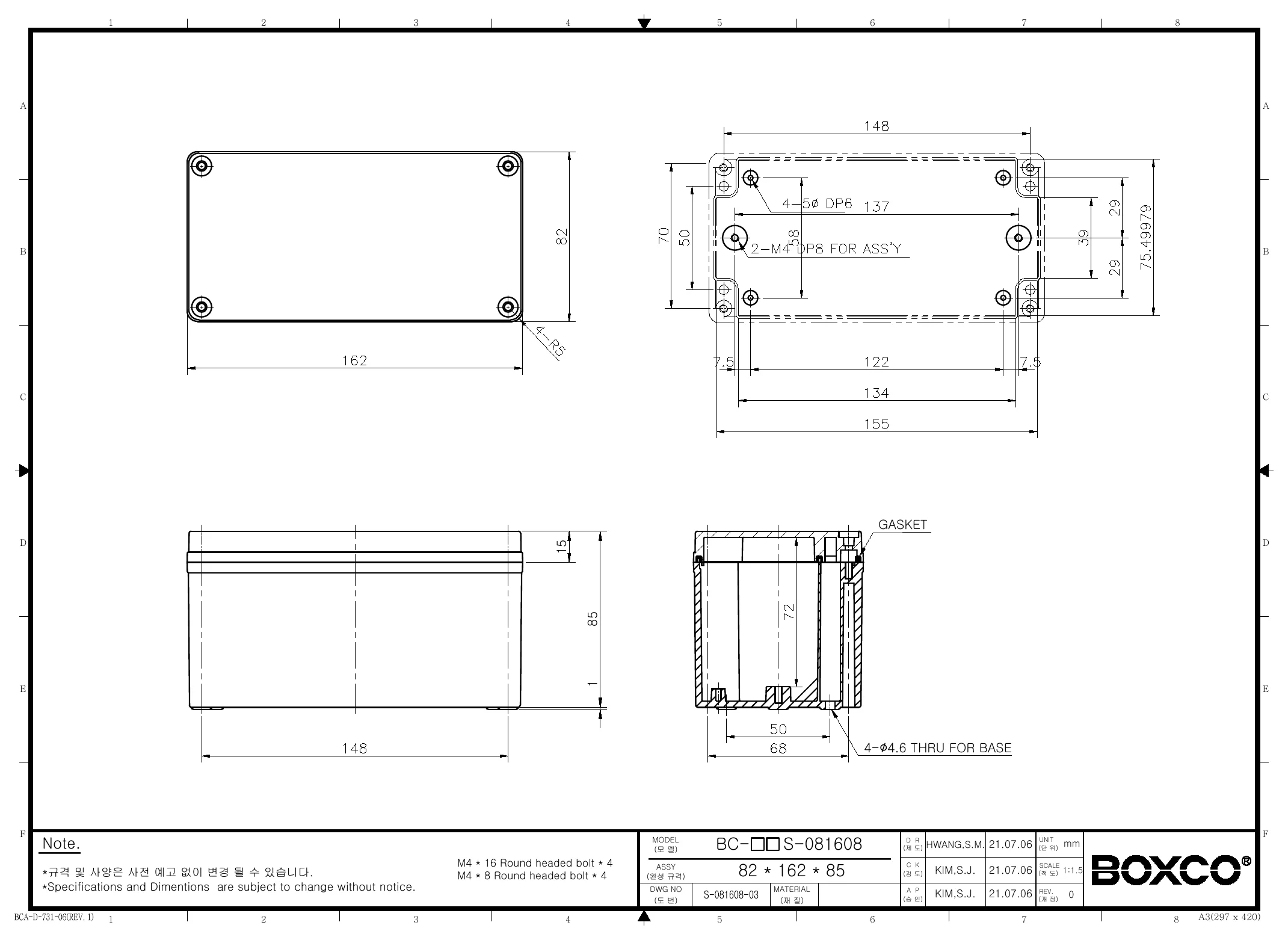

Technical drawings

BC-CGS-081608 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 80x160x85mm plastic enclosure suited for?

This enclosure is designed for protecting electrical and electronic components in industrial and commercial environments where dust and water resistance matter. Its anti-static material and high-impact polycarbonate construction also make it a practical choice for housing sensitive instruments and control components.

Is this enclosure suitable for outdoor use?

Yes. This model includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also supports use in wet or dusty environments when a sealed enclosure is required.

What level of environmental protection does this enclosure provide?

This model is rated IP67 for dust-tight and water-resistant performance, and IK08 for impact resistance. The molded gasket system is designed to support reliable sealing against dust and water ingress in demanding conditions.

What are the dimensions and material of this enclosure?

The enclosure measures 3.15 x 6.3 x 3.35 inches, which corresponds to 80 x 160 x 85 mm. It is made from polycarbonate (PC) and features a grey screw-type cover.

What temperature range can this Boxco enclosure handle?

This enclosure is specified for operation from -40 degrees C to 110 degrees C. That range makes it suitable for many indoor and outdoor industrial environments where temperature extremes are a concern.

What features support mounting components inside the enclosure?

This model includes internal mounting plate attachment points with brass inserted injection molding for securing heavier internal equipment. It also has pre-molded mounting screw nuts that can support DIN rail or other internal hardware.
