Boxco

Boxco S-Series 80x160x85mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-081608
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-081608 is a 82×162×85 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-081608Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
82×162×85 mm (3.23×6.38×3.35 in)
Mounting plate dimension M1 × M2
68 × 148 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0816 P (Plastic, P type), 0816 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

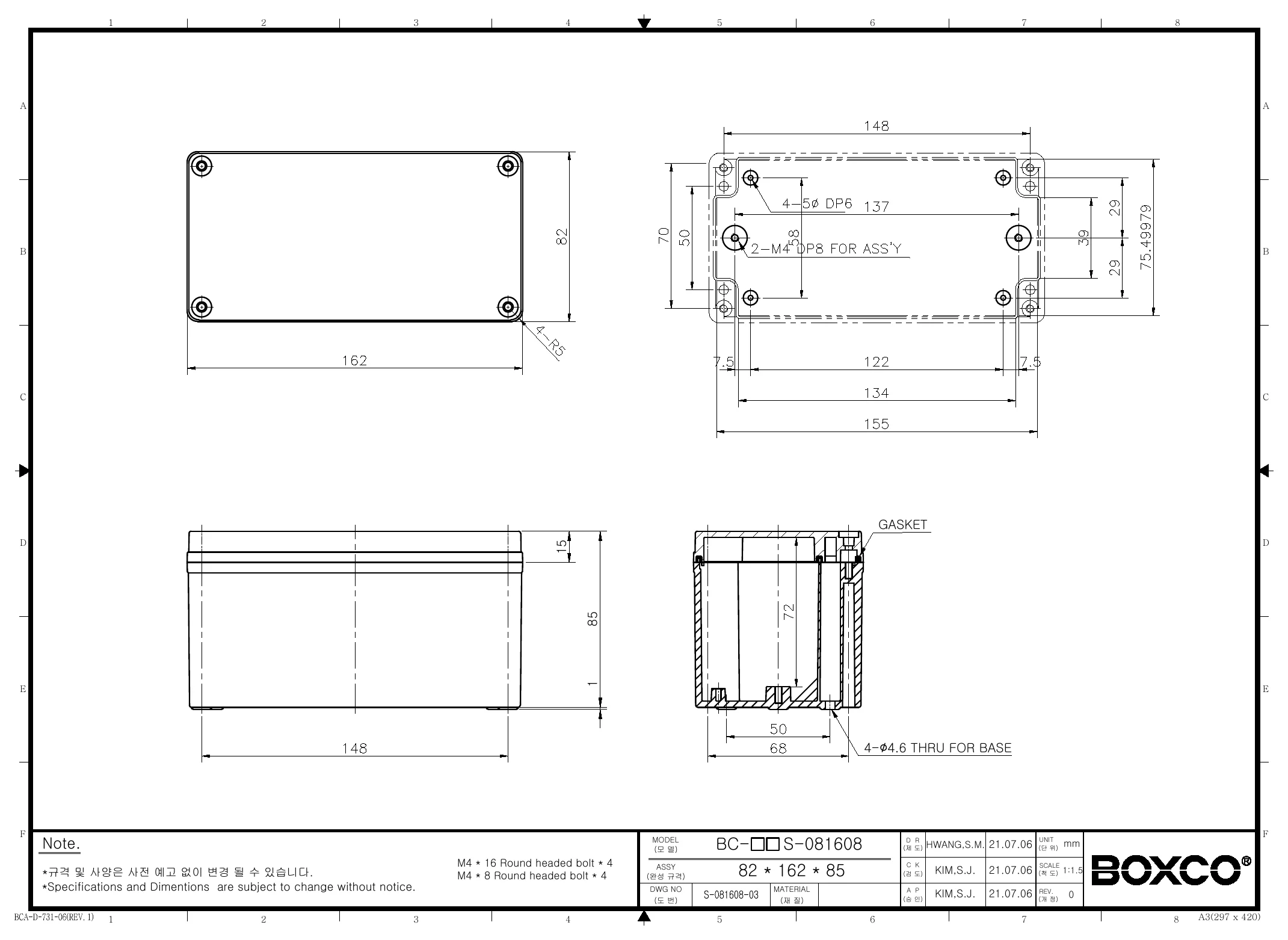

Technical drawings

BC-CTS-081608 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series BC-CTS-081608 enclosure suited for?

This model is intended for protecting electronic components and instruments in industrial or outdoor environments where a sealed plastic enclosure is needed. Its IP67 protection, IK08 impact rating, UV-stabilized material, and anti-static construction make it a practical choice for control, monitoring, and protection applications that need resistance to dust, water, and external impact.

Is this enclosure suitable for outdoor use?

Yes. The Boxco S-Series described for this model includes an ultraviolet stabilizer to help maintain performance and reduce visible color change during long-term outdoor exposure. The IP67 rating also supports use in environments where the enclosure must resist dust ingress and temporary water exposure.

What are the key specifications of the BC-CTS-081608 enclosure?

This enclosure measures 3.15 x 6.3 x 3.35 inches, which corresponds to 80 x 160 x 85 mm. It has an IP67 ingress protection rating, an IK08 impact rating, a transparent polycarbonate cover, a screw-type cover design, a weight of 0.297 kg, and an operating temperature range of -40 degrees C to 110 degrees C.

Does this model support mounting internal components securely?

Yes. The enclosure includes internal mounting plate attachment points with brass inserted injection molding so an internal mounting plate can be fixed tightly in place. It also has pre-molded mounting screw nuts that allow DIN rail or other equipment to be fastened inside the enclosure.

How does this enclosure help protect sensitive electronics?

Boxco specifies anti-static material for this series to help protect sensitive electronic instruments from static electricity. The enclosure is also made from high impact resistant material and uses a precisely injected gasket design for strong waterproof and dust-proof performance.

Why choose this screw-type enclosure with a transparent cover?

The screw-type cover is designed for strength, with cover bolt attachment points formed during injection molding to improve thread durability. The transparent cover allows visual inspection of internal indicators or components without changing the enclosure style or basic protection characteristics listed for this model.
