Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80x180x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-081807
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-081807 is a 80×180×70 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-081807Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×180×70 mm (3.15×7.09×2.76 in)
Mounting plate dimension M1 × M2
65 × 165 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0818 P (Plastic, P type), 0818 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

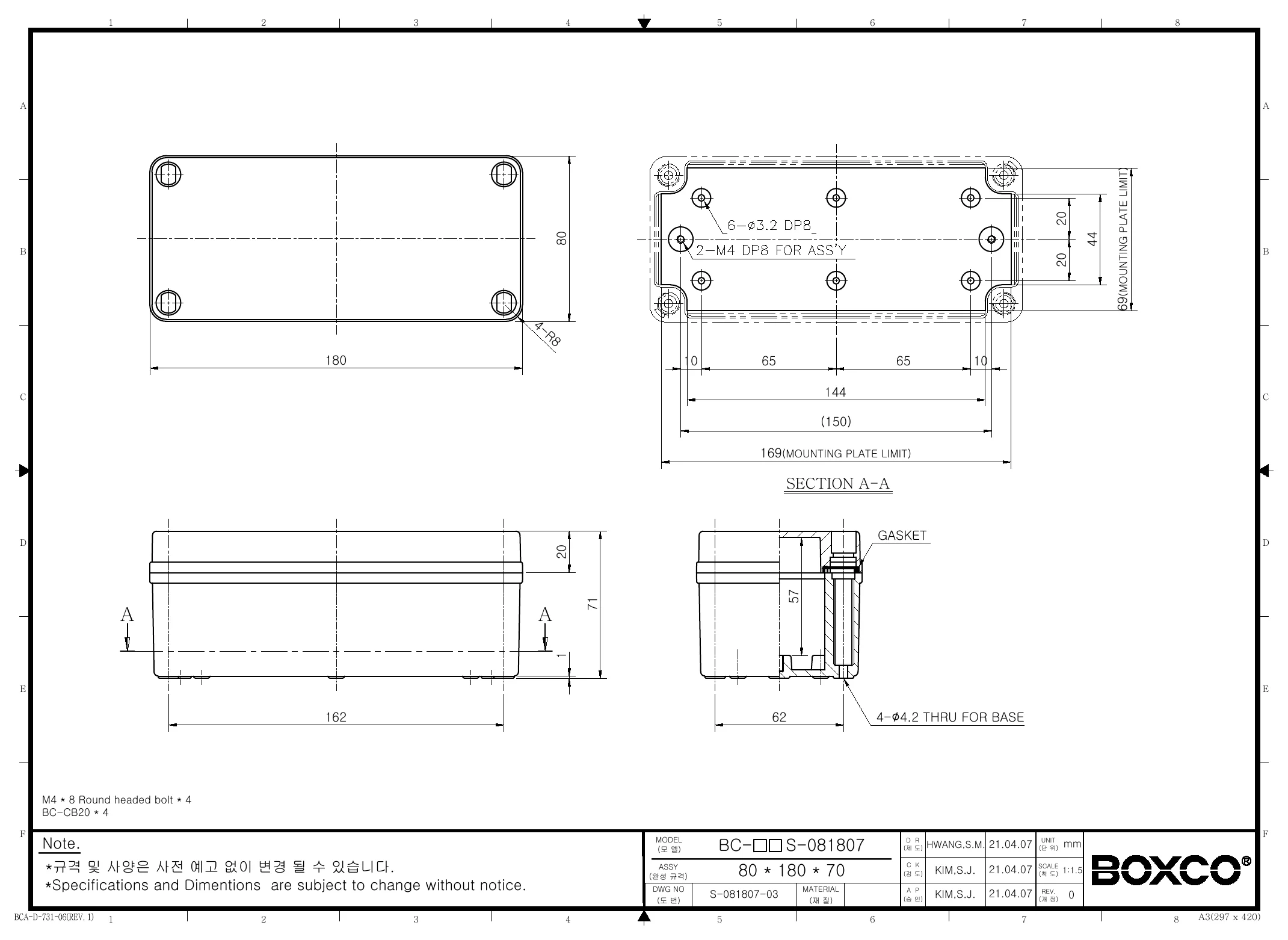

Technical drawings

BC-CGS-081807 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 80x180x70mm plastic enclosure best suited for?

This enclosure is suited for protecting electronic components in industrial, commercial, and outdoor equipment housings where a sealed plastic box is needed. Its IP67 rating, IK08 impact resistance, UV-stabilized construction, and anti-static material make it a strong fit for control, monitoring, and instrumentation applications.

What are the key specifications of this enclosure?

This model measures 3.15 x 7.09 x 2.76 inches (80 x 180 x 70 mm) and is made from polycarbonate with a grey cover. It is rated IP67 for dust and water protection, IK08 for impact resistance, has an operating temperature range of -40 C to 110 C, and weighs 0.274 kg.

Is this enclosure suitable for outdoor environments?

Yes. Boxco adds an ultraviolet stabilizer to the S-Series to help protect the enclosure during outdoor use and reduce visible color change over time. The IP67 rating also supports use in environments where dust exclusion and protection against temporary water exposure are important.

How does the screw-type cover benefit this enclosure?

This model uses a screw-type cover, which helps provide a secure closure for the enclosure. Boxco also states that the cover bolt attachment threads are formed during injection molding to maximize strength at the fastening points.

What internal mounting features does this enclosure include?

The enclosure includes internal mounting plate attachment points with brass inserted injection molding for firmly securing a mounting plate. It also has pre-molded mounting screw nuts designed to support DIN rail or other internal equipment mounting.

Is this enclosure appropriate for sensitive electronic instruments?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. Its high-impact-resistant polycarbonate construction also helps protect housed components from external impact.

What warranty period applies to this enclosure?

This model has a 1-year warranty period based on the product data provided. That makes it a suitable option for buyers who want a defined warranty term for replacement planning and procurement.
