Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80x180x70mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-081807
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-081807 is a 80×180×70 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-081807Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×180×70 mm (3.15×7.09×2.76 in)
Mounting plate dimension M1 × M2
65 × 165 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0818 P (Plastic, P type), 0818 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

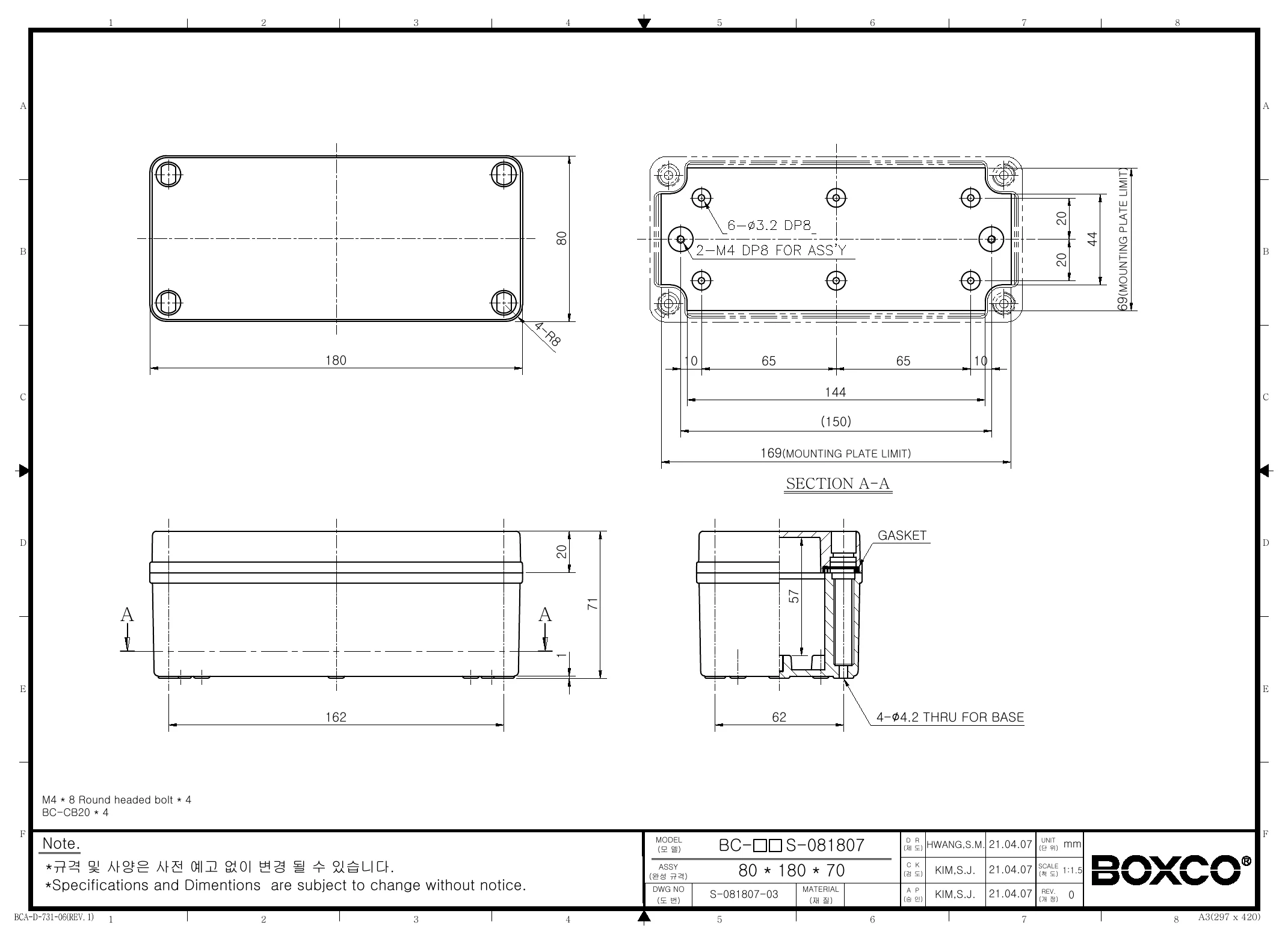

BC-CTS-081807 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-CTS-081807 enclosure?

This model measures 3.15 x 7.09 x 2.76 inches (80 x 180 x 70 mm) and is made from polycarbonate with a transparent screw-type cover. It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure weight is 0.4500 kg, and the stated operating temperature range is -40 °C to 110 °C.

Is the BC-CTS-081807 suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce color change over long periods of exposure. Its IP67 rating also supports use in demanding environments where dust and water resistance are important.

When is a transparent-cover enclosure like this a good choice?

A transparent cover is useful when components, indicators, or labels inside the enclosure need to remain visible without opening the box. For buyers comparing options, this can help with inspection and monitoring while keeping the enclosure closed. This model combines that visibility with a polycarbonate body and cover.

Can this enclosure be used for sensitive electronic equipment?

Yes. The description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a practical choice for applications where electrostatic protection is a consideration along with enclosure durability.

What makes this enclosure suitable for industrial or heavy-duty use?

The enclosure is described as being made from high impact resistant material and carries an IK08 impact rating. It also includes brass inserted molding for securing an internal mounting plate and pre-molded screw nuts for fixing compatible internal hardware. These features support more demanding B2B enclosure applications.

What internal mounting features are included in the BC-CTS-081807?

According to the product description, this enclosure includes mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support internal mounting of equipment such as a mounting plate or DIN rail-compatible hardware. Buyers evaluating enclosure compatibility should confirm the fit of their specific internal components against the enclosure dimensions.
