Boxco

Boxco S-Series 80x180x85mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATS-081808
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATS-081808 is a 80×180×85 mm ABS enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-ATS-081808Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×180×85 mm (3.15×7.09×3.35 in)
Mounting plate dimension M1 × M2
65 × 165 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0818 P (Plastic, P type), 0818 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

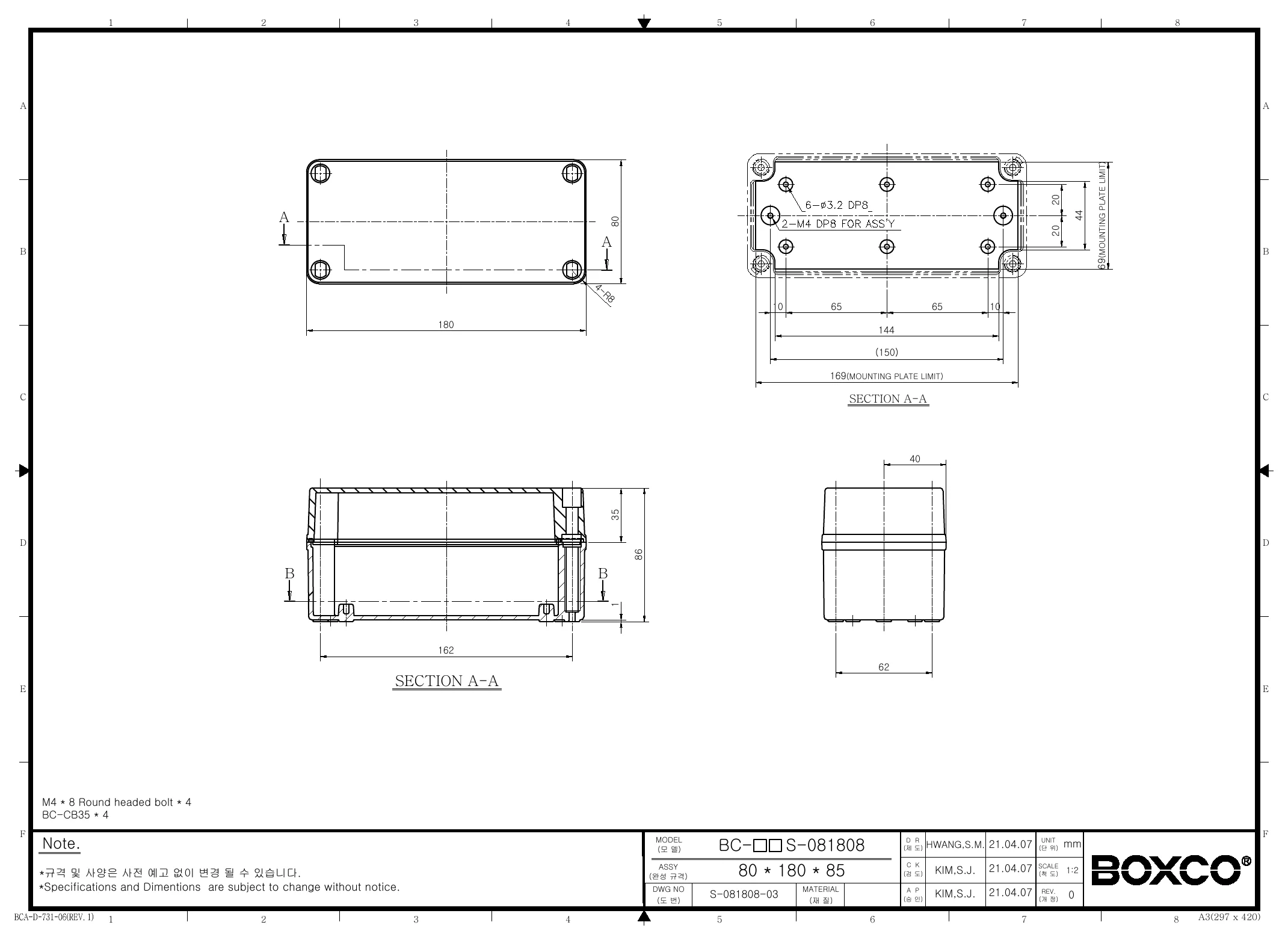

Technical drawings

BC-ATS-081808 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key protection ratings for Boxco S-Series BC-ATS-081808?

This enclosure is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. The housing is made from ABS and uses a transparent screw-type cover. It is designed for applications that need a durable plastic enclosure with sealed outdoor-capable performance.

Is the BC-ATS-081808 suitable for outdoor use?

Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to help protect it in outdoor environments and reduce visible color change over time. Its IP67 sealing also supports use where dust and water exposure are concerns.

What kinds of equipment is this enclosure commonly used to protect?

This model is intended for enclosing electronic instruments and control components that need protection from dust, water, impact, and static-related risk. Boxco also notes anti-static material use for sensitive electronic equipment. It is a practical option for industrial and commercial assemblies that need a sealed non-metallic housing.

What features help with internal component mounting in this enclosure?

The enclosure includes internal mounting plate attachment points with brass inserted injection molding for secure fastening. It also has pre-molded mounting screw nuts so DIN rail or other internal equipment can be fixed more easily. These features make it better suited to builds that need organized internal hardware support.

Why choose this transparent-cover screw-type version instead of a standard opaque enclosure?

The transparent cover allows visual inspection of internal indicators or labels without opening the box. This version also uses a screw-type cover for secure closure and consistent sealing. For buyers who want visibility plus IP67 protection, that is the main advantage over an opaque cover style.

What operating temperature range does the BC-ATS-081808 support?

This model is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for many industrial and outdoor environments where temperatures can swing well below freezing or rise in enclosed areas. Buyers should still confirm that all internal components match the same environmental range.
