Boxco

Boxco S-Series 80x180x85mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-081808
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-081808 is a 80×180×85 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-081808Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×180×85 mm (3.15×7.09×3.35 in)
Mounting plate dimension M1 × M2
65 × 165 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0818 P (Plastic, P type), 0818 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

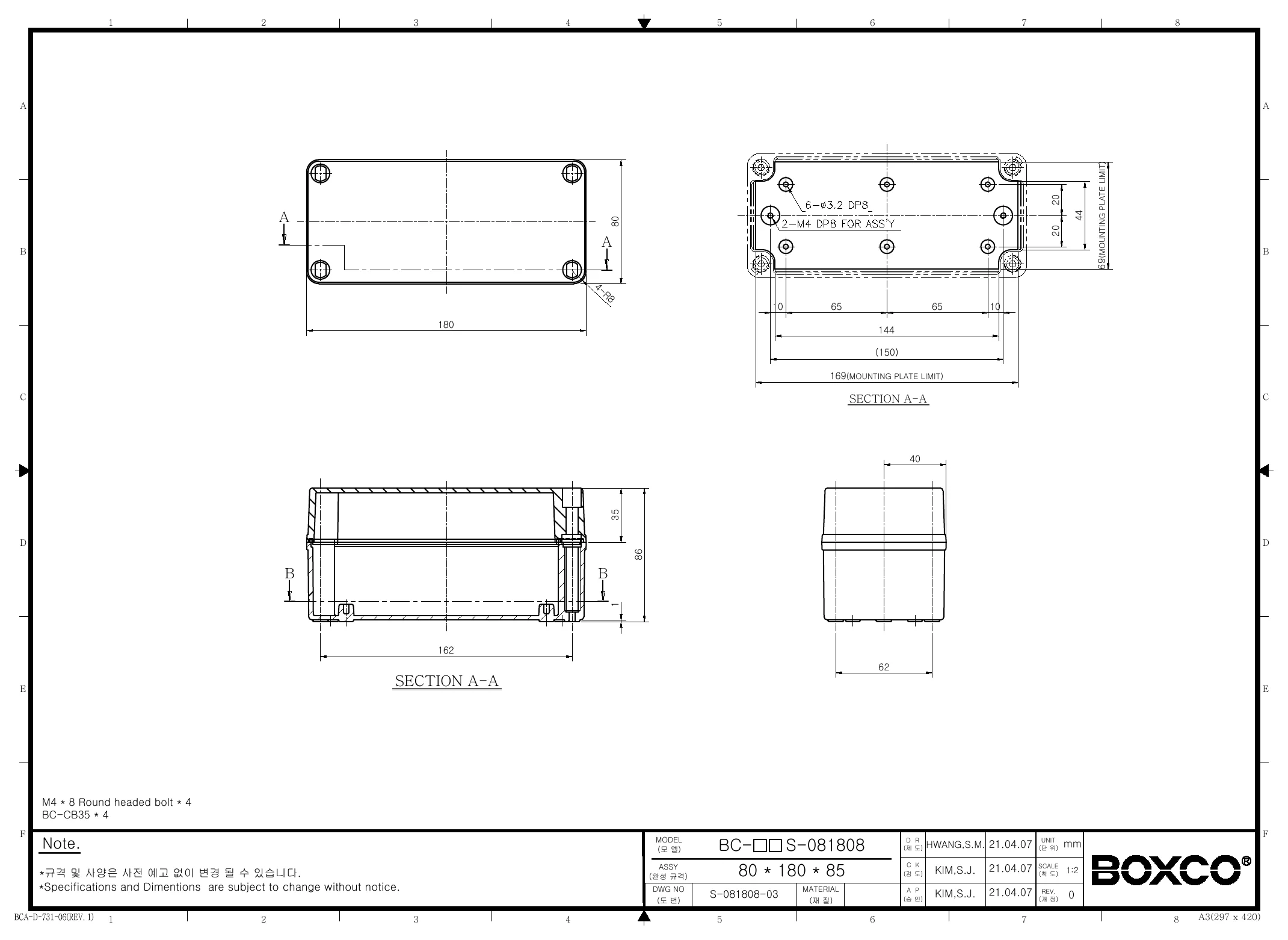

Technical drawings

BC-CTS-081808 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco S-Series BC-CTS-081808 enclosure?

This model measures 3.15 x 7.09 x 3.35 inches (80 x 180 x 85 mm) and is made from polycarbonate (PC). It features a transparent cover, screw-type closure, IP67 ingress protection, and IK08 impact resistance. The listed operating temperature range is -40°C to 110°C.

Is this enclosure suitable for outdoor environments?

Yes, this Boxco S-Series enclosure is designed with an ultraviolet stabilizer to help maintain performance in outdoor use. The product description notes that only minor color change is expected even after long-term exposure. Its IP67 rating also supports use in wet and dusty environments.

What does the transparent cover help with on this model?

The transparent cover allows contents inside the enclosure to remain visible without opening it. That can be useful when equipment status, labels, or indicator positions need to be checked while the enclosure stays closed. This model combines that visibility with the same screw-type secured cover design.

How durable is the BC-CTS-081808 for industrial use?

This enclosure is built from high impact resistant polycarbonate and carries an IK08 impact rating. The description also highlights resistance to breakage during hole and press processing. That makes it a strong option for protecting electronics in demanding commercial or industrial settings.

What internal equipment support features are included?

This model includes mounting plate attachment points designed to secure an internal mounting plate onto brass inserted injection molding. It also has pre-molded mounting screw nuts that support fastening DIN rail or other equipment inside the enclosure. These built-in features make the enclosure more adaptable for component mounting.

Is this enclosure appropriate for protecting sensitive electronic instruments?

Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. Combined with its sealed IP67 construction, the enclosure is intended to provide both environmental and material-level protection. This makes it suitable for electronics that benefit from a more protective housing.
