Boxco

Boxco S-Series 80x250x70mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGS-082507
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGS-082507 is a 80×250×70 mm ABS enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-AGS-082507Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×250×70 mm (3.15×9.84×2.76 in)
Mounting plate dimension M1 × M2
65 × 235 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0825 P (Plastic, P type), 0825 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

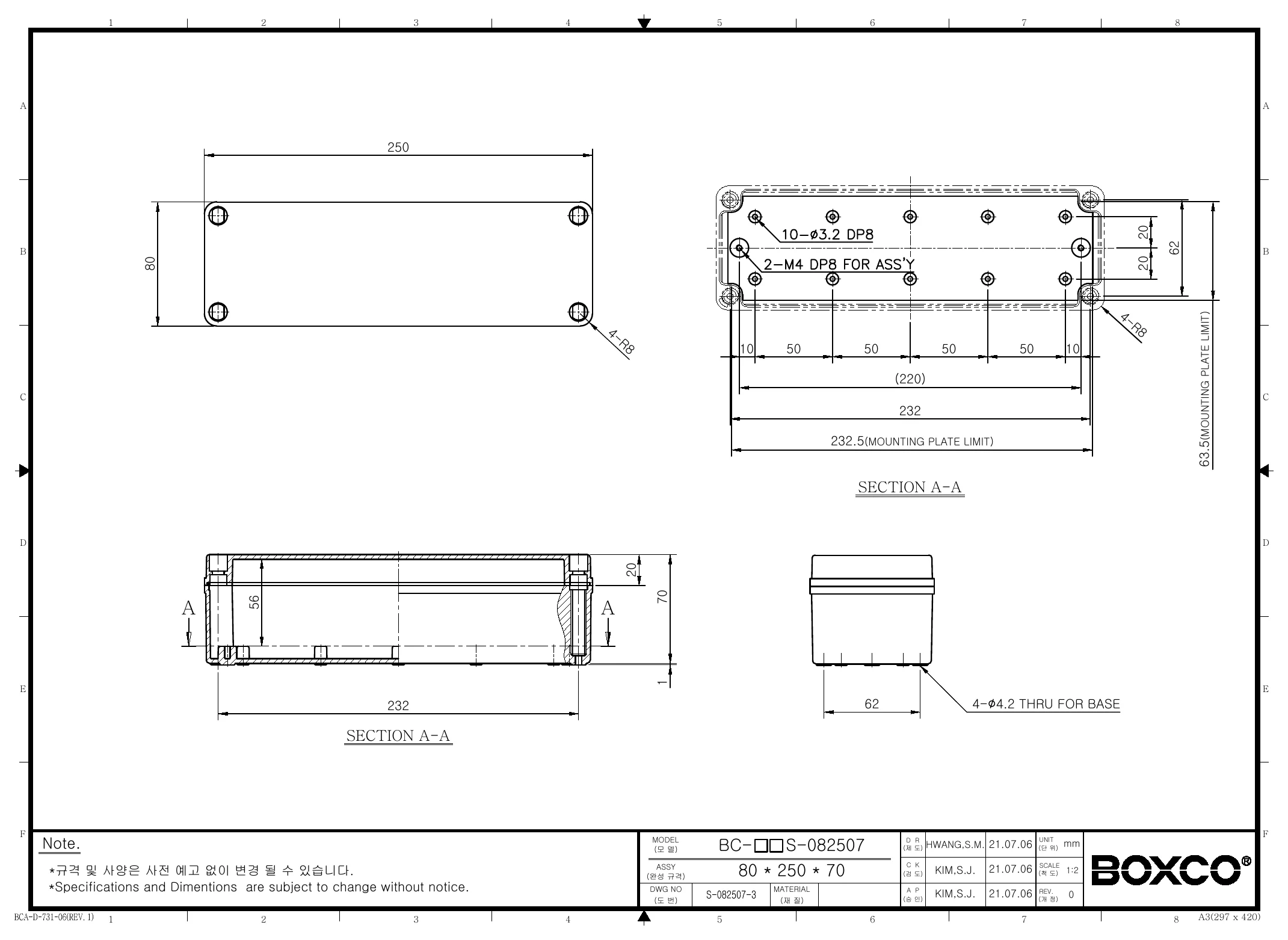

Technical drawings

BC-AGS-082507 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco S-Series BC-AGS-082507 enclosure?

This model is a screw-type plastic enclosure made from ABS with a grey cover. Its external size is 3.15 x 9.84 x 2.76 inches (80 x 250 x 70 mm), and it is rated IP67 for dust and water protection and IK08 for impact resistance. The listed weight is 0.304 kg and the warranty period is 1 year.

Is the BC-AGS-082507 suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use and reduce visible color change over time. It is also designed to provide strong waterproof and dust-proof performance with its IP67 rating and gasketed construction.

What kind of applications is this enclosure typically used for?

This enclosure is intended for protecting electronics and industrial components that need a durable, sealed housing. It is especially relevant for outdoor or demanding environments where dust resistance, water resistance, and impact protection matter. The anti-static material also makes it suitable for applications involving sensitive electronic instruments.

How durable is this Boxco S-Series enclosure?

The BC-AGS-082507 is described as being made from high impact resistant material designed to withstand external impact and help prevent breakage during machining processes such as hole and press processing. It also carries an IK08 impact rating. In addition, the screw thread is formed during injection molding to improve cover fastening strength.

What temperature range can the BC-AGS-082507 handle?

This model has a listed operating temperature range of -40 °C to 70 °C. That makes it suitable for use across a wide range of cold and moderate heat conditions within that specified range. Buyers should verify their application stays within those limits.

Does this enclosure support internal accessories or equipment mounting?

Yes. The product description states that it includes internal mounting plate attachment points with brass inserted injection molding for securing heavier internal equipment. It also includes pre-molded mounting screw nuts to support DIN rail or other internal equipment mounting.
