Boxco

Boxco S-Series 80x250x70mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-082507
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-082507 is a 80×250×70 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-082507Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×250×70 mm (3.15×9.84×2.76 in)
Mounting plate dimension M1 × M2
65 × 235 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0825 P (Plastic, P type), 0825 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

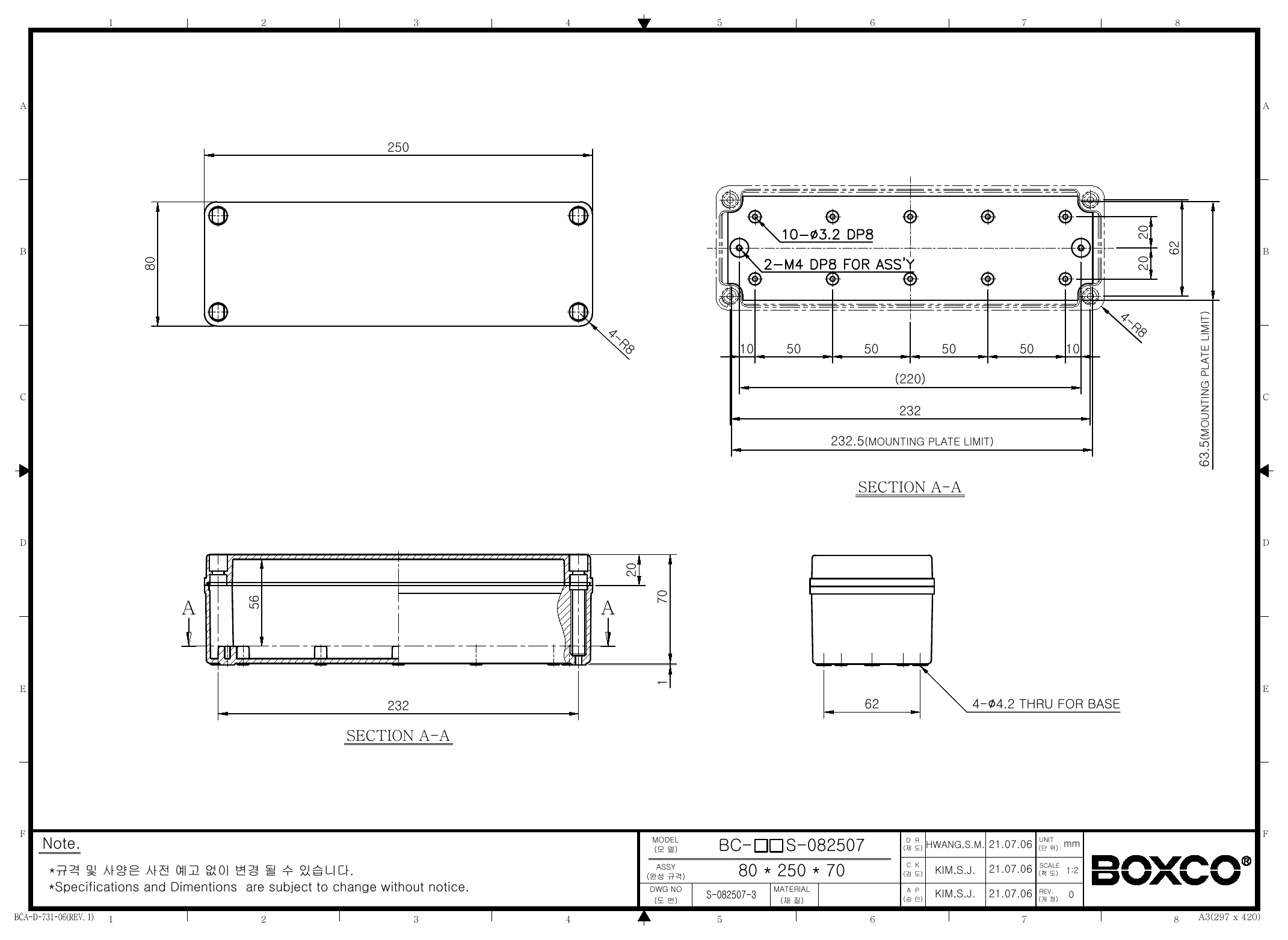

Technical drawings

BC-CGS-082507 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco S-Series plastic enclosure best suited for?

This enclosure is a good fit for protecting electronics and control components in industrial, commercial, and outdoor environments where a sealed housing is needed. Its 80 x 250 x 70 mm size, IP67 protection, and impact-resistant polycarbonate construction make it suitable for applications that need durability and weather resistance.

Is this enclosure suitable for outdoor use?

Yes. Boxco adds an ultraviolet stabilizer to the S-Series to help protect the enclosure during outdoor use and reduce visible color change over time. The IP67 rating also supports strong protection against dust and water ingress in exposed environments.

What material is this enclosure made from, and why does it matter?

This model is made from polycarbonate (PC), which offers high impact resistance and helps prevent breakage during machining or press processing. The material is also described as anti-static, which helps protect sensitive electronic instruments from static electricity.

What do the IP67 and IK08 ratings mean for this model?

The IP67 rating indicates this enclosure is built for strong dust protection and resistance to water ingress. The IK08 rating indicates a defined level of impact resistance, which supports use in tougher environments where the housing may be exposed to physical contact or incidental impact.

What is the operating temperature range for this enclosure?

This Boxco S-Series enclosure is rated for temperatures from -40 °C to 110 °C. That range makes it suitable for both low-temperature and high-temperature environments within those limits.

What internal mounting features does this enclosure include?

This model includes mounting plate attachment points with brass inserted injection molding for securing an internal mounting plate. It also has pre-molded mounting screw nuts that can be used to fix DIN rail or other internal equipment inside the enclosure.
