Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco S-Series 80x250x70mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTS-082507
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTS-082507 is a 80×250×70 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CTS-082507Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×250×70 mm (3.15×9.84×2.76 in)
Mounting plate dimension M1 × M2
65 × 235 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0825 P (Plastic, P type), 0825 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

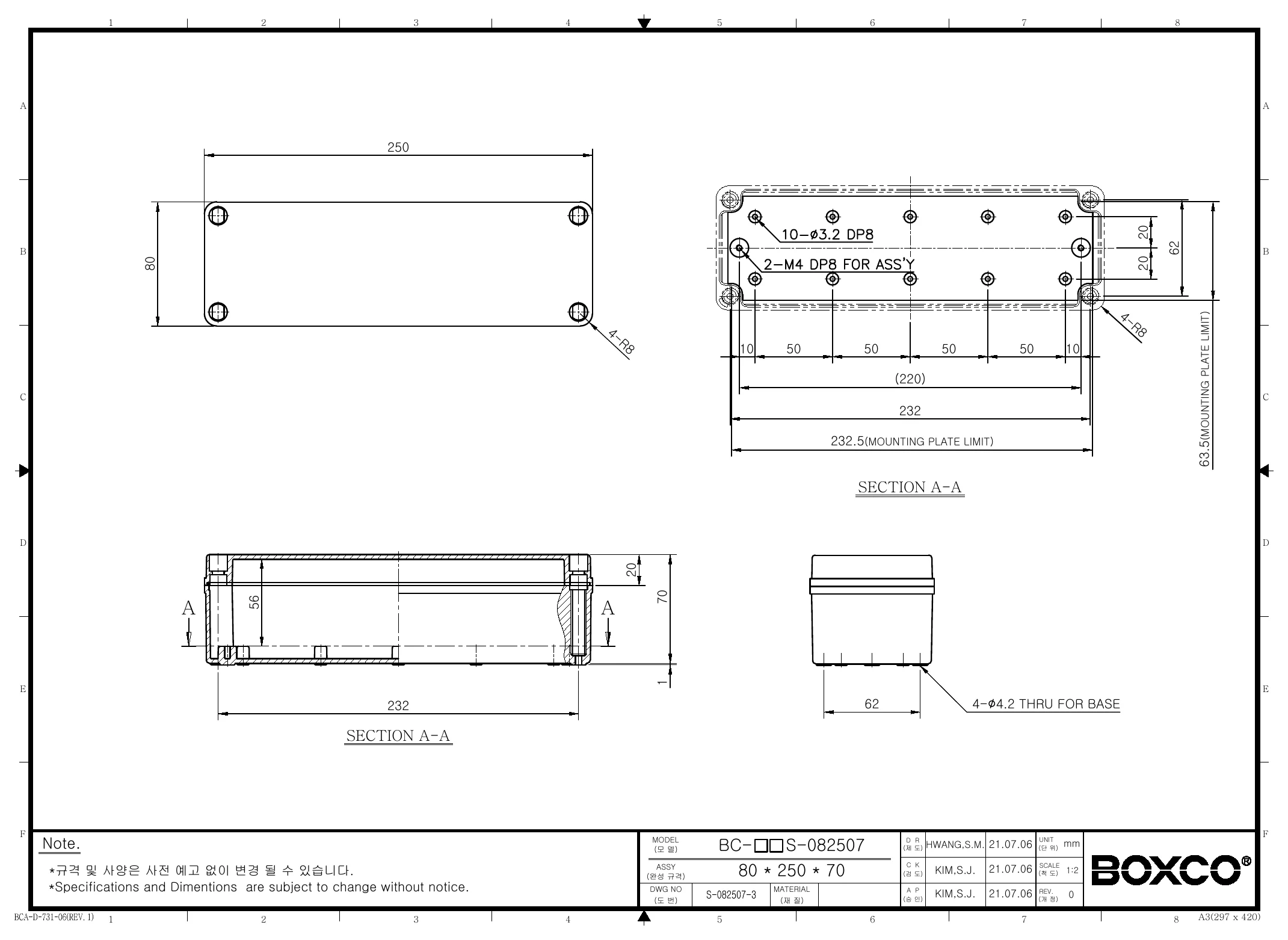

Technical drawings

BC-CTS-082507 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 80x250x70mm plastic enclosure best suited for?

This enclosure is suited for protecting electronic components and instruments in industrial or commercial environments where dust, water, and impact resistance matter. Its transparent cover also makes it useful when internal components need to remain visible without opening the box.

Is this enclosure suitable for outdoor use?

Yes, this model is designed for outdoor use. The Boxco S-Series includes an ultraviolet stabilizer to help reduce color change over time, and its IP67 rating supports protection against dust and water ingress in demanding environments.

What does the transparent PC cover offer on this model?

This model uses a transparent polycarbonate cover, which allows visual inspection of enclosed components without removing the lid. Polycarbonate is also described as high impact resistant, helping the enclosure stand up to external impact and processing stresses.

What are the main protection ratings for this enclosure?

This enclosure is rated IP67 and IK08. That means it is built for strong dust and water resistance and also offers a defined level of impact protection for applications where the enclosure may be exposed to physical contact or rough conditions.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40°C to 110°C. That makes it a practical choice for environments with both low-temperature and high-temperature exposure within that range.

Does this enclosure support internal mounting hardware or accessory plates?

Yes, the product description states that it has internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support secure installation of internal hardware such as mounting plates or DIN rail-related equipment inside the enclosure.
