Boxco

Boxco S-Series 80x250x85mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGS-082508
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGS-082508 is a 80×250×85 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco S Series.

Features

  • S series enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken
  • Our electrical junction box is designed as 4 side sliding type to be strong against impact.
  • BOXCO's terminal box is suitable for mounting electrical components and it is available in ABS and polycarbonate.

Specifications

BC-CGS-082508Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×250×85 mm (3.15×9.84×3.35 in)
Mounting plate dimension M1 × M2
65 × 235 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
0825 P (Plastic, P type), 0825 S (Steel, S type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

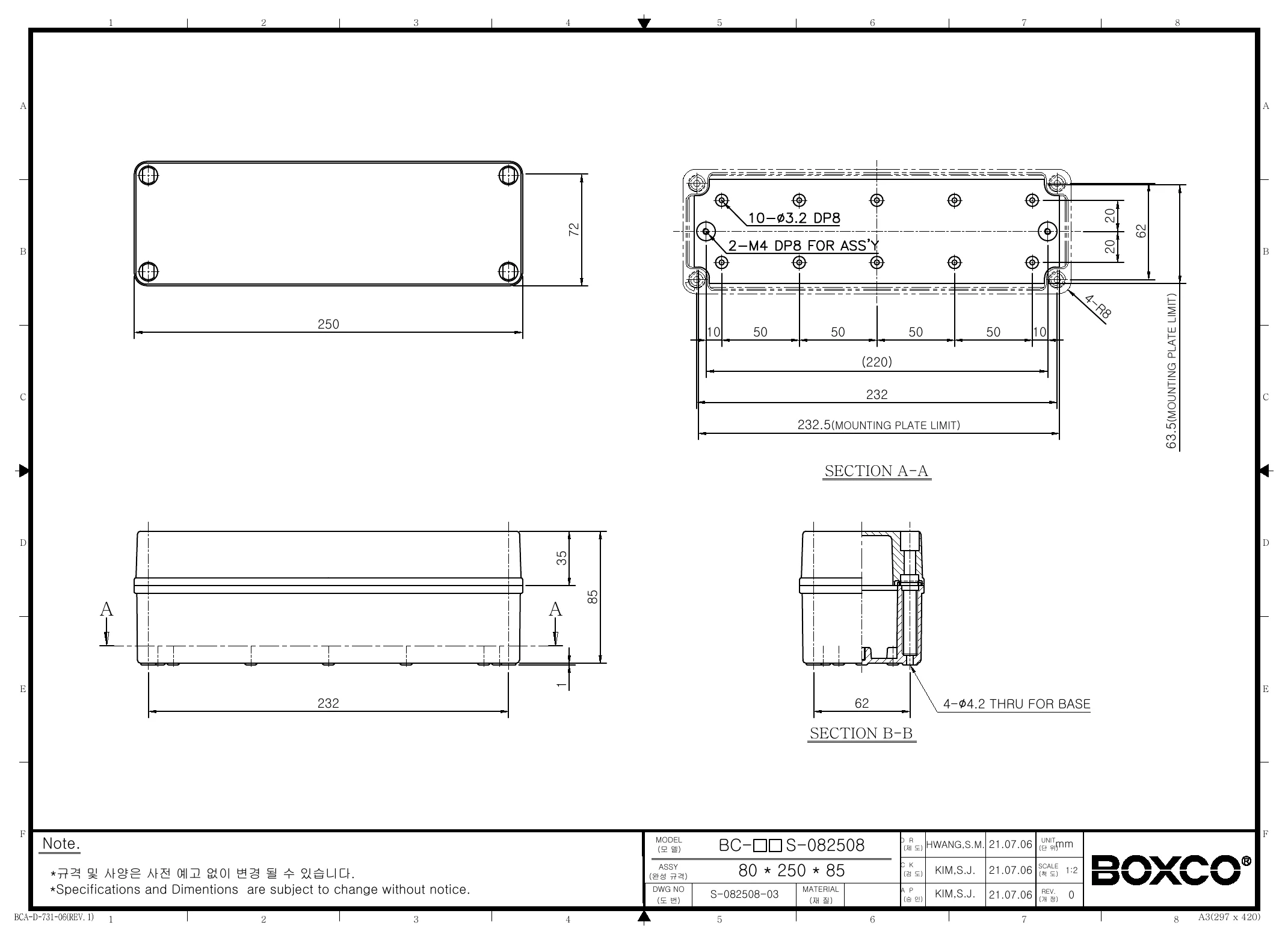

Technical drawings

BC-CGS-082508 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco S-Series 80x250x85mm plastic enclosure suited for?

This enclosure is intended for protecting sensitive electronic equipment in industrial or outdoor environments where dust and water resistance matter. Its high-impact plastic body, grey cover, and screw-type construction make it a practical choice for control, monitoring, or protection applications that need a durable non-metallic housing.

What are the key specifications of this Boxco enclosure?

This model measures 3.15 x 9.84 x 3.35 inches (80x250x85mm) and weighs 0.408 kg. It is a polycarbonate (PC) screw-type enclosure rated IP67 and IK08, with an operating temperature range of -40°C to 110°C.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. Its IP67 rating also supports use in environments where protection from dust and water ingress is important.

How durable is this plastic enclosure in demanding environments?

This model is designed with high impact resistant material and carries an IK08 impact rating. The description also notes that the material helps resist breakage during hole and press processing, making it a strong option for tougher industrial use.

Does this enclosure support internal component mounting?

Yes. The enclosure includes mounting plate attachment points with brass inserted injection molding so an internal mounting plate can be fixed securely. It also features pre-molded mounting screw nuts for securing compatible internal hardware such as DIN rail accessories or other equipment.

What makes this model different from a general-purpose plastic enclosure?

This Boxco S-Series model combines several protection-focused features in one housing, including IP67 sealing, IK08 impact resistance, UV stabilization, and anti-static material. It is also built with application-specific details like a precision-injected gasket, molded cover bolt attachment points, and internal mounting support features.
